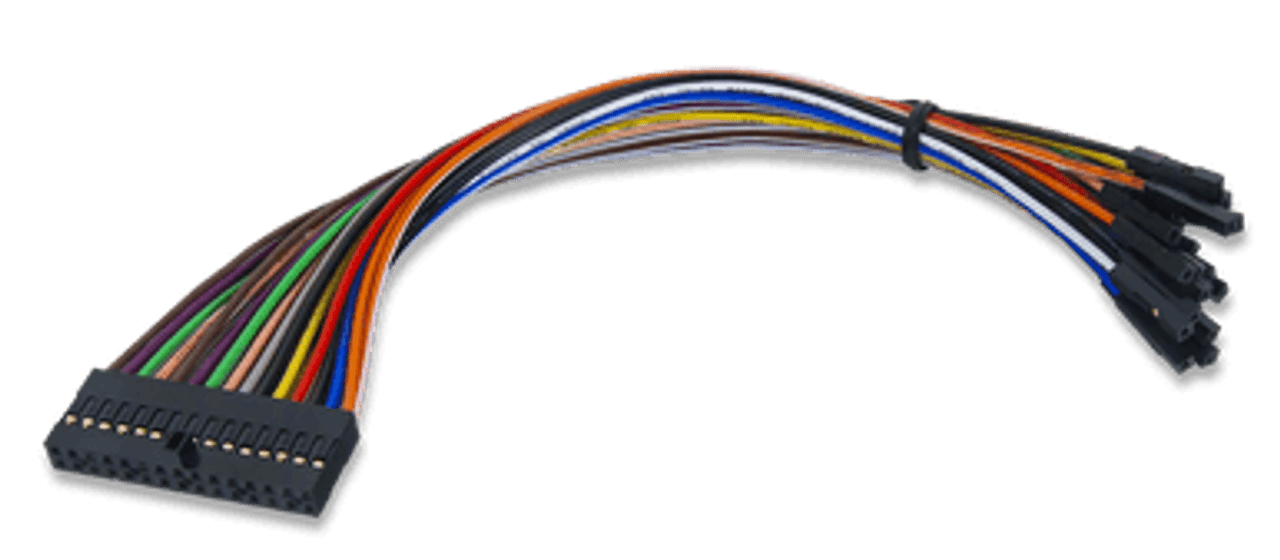

2x15 Flywires: Signal Cable Assembly for the Analog Discovery
2x15 Flywires: Signal Cable Assembly for the Analog Discovery
2x15 Flywires: Analog Discovery için Sinyal Kablosu

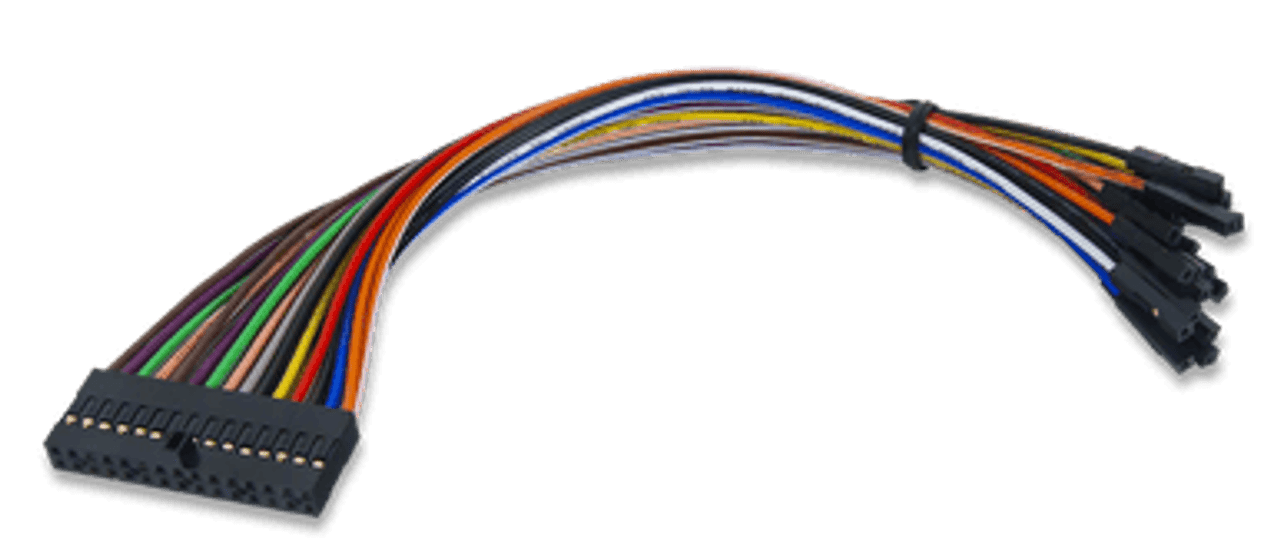

The 2x15 MTE (Measurement and Test Equipment) Cable for Analog Discovery provides a simple connection method from any of the instruments on the Analog Discovery 2 to a circuit under test. The 30 female-terminated wires are color-coded and can be used as is, in conjunction with a pin header gender changer to probe a female connector, or connected directly to breadboard wire.
One 2x15 MTE Cable is provided with the Analog Discovery 2, but it can be useful to have additional cables for testing multiple devices or in the event that it needs to be replaced.
Features
- One 2x15 keyed female MTE connector compatible with the Analog Discovery Legacy and Analog Discovery 2
- Female-terminated probe ends
- Probe wires 260mm± 20 long
- Color Coded to match the device Pinout
What's Included
- One 2x15 MTE Cable for Analog Discovery
2x15 Flywires, Analog Discovery'niz için 2x15 pinli bir başlık sağlar. Bu, Analog Discovery'nizi daha fazla cihaza ve sensöre bağlamanıza olanak tanır.
Flywires, farklı renk kodlu sinyal kablolarına sahiptir. Bu, kabloları kolayca takip etmenizi sağlar.
2x15 Flywires, elektronik devre tasarımı, prototipleme ve testi için idealdir.
