2x6 Flywires: Signal Cable Assembly for the Digital Discovery
2x6 Flywires: Signal Cable Assembly for the Digital Discovery
2x6 Flywires: Digital Discovery için Sinyal Kablosu
The 2x6 MTE Cable for Digital Discovery provides a simple connection method from either of the Digital I/O connectors on either side of the device to a circuit under test. The 12 female-terminated wires are color-coded and can be used as is, in conjuntion with a pin header gender changer to probe a female connector, or connected directly to breadboard wire. The 2x6 Digital inputs and outputs on the digital discovery are also configured to match the Pmod Specification for easy sensor debugging.
One 2x6 MTE Cable is provided with the Digital Discovery, but it can be useful to have additional cables for testing multiple devices or in the event that it needs to be replaced.

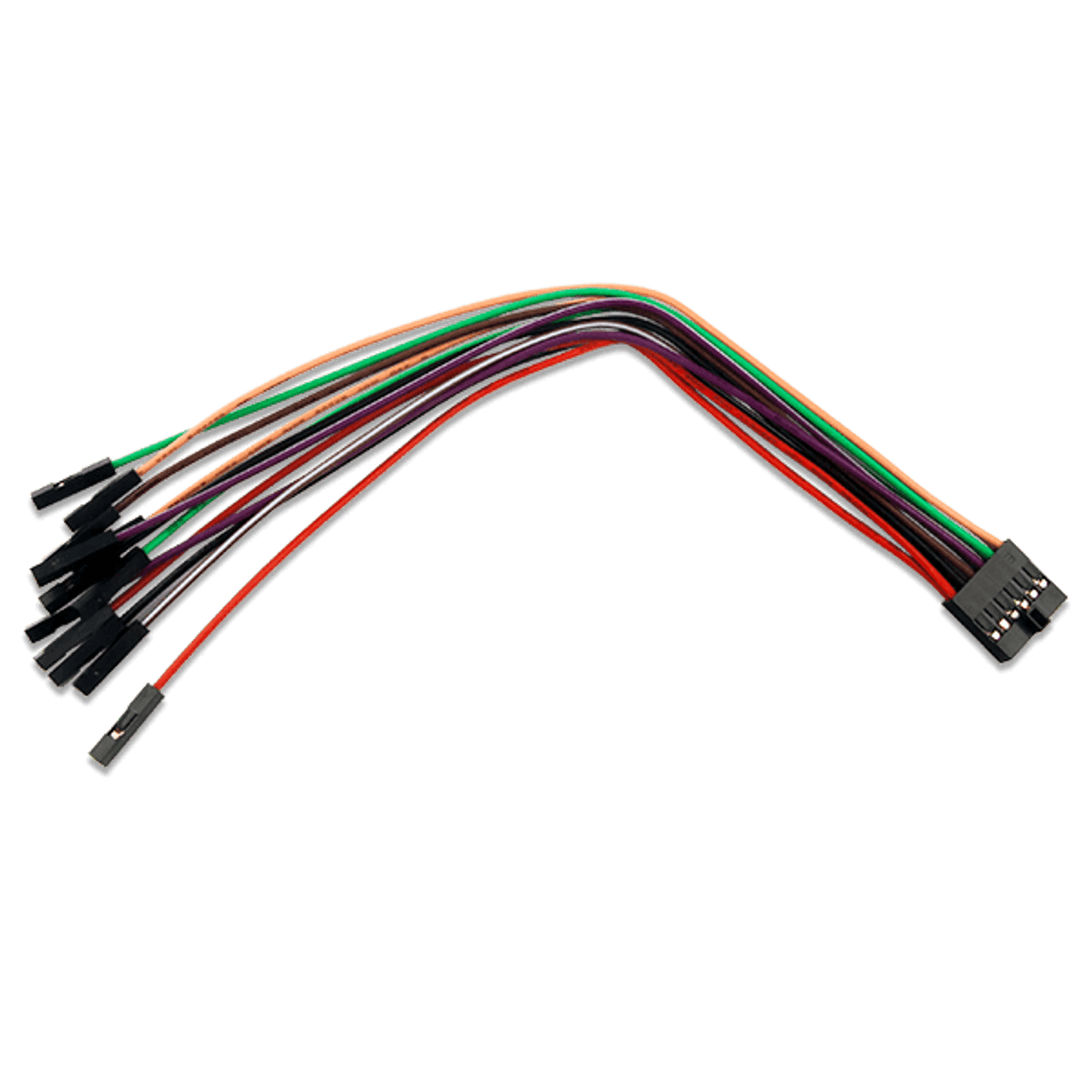

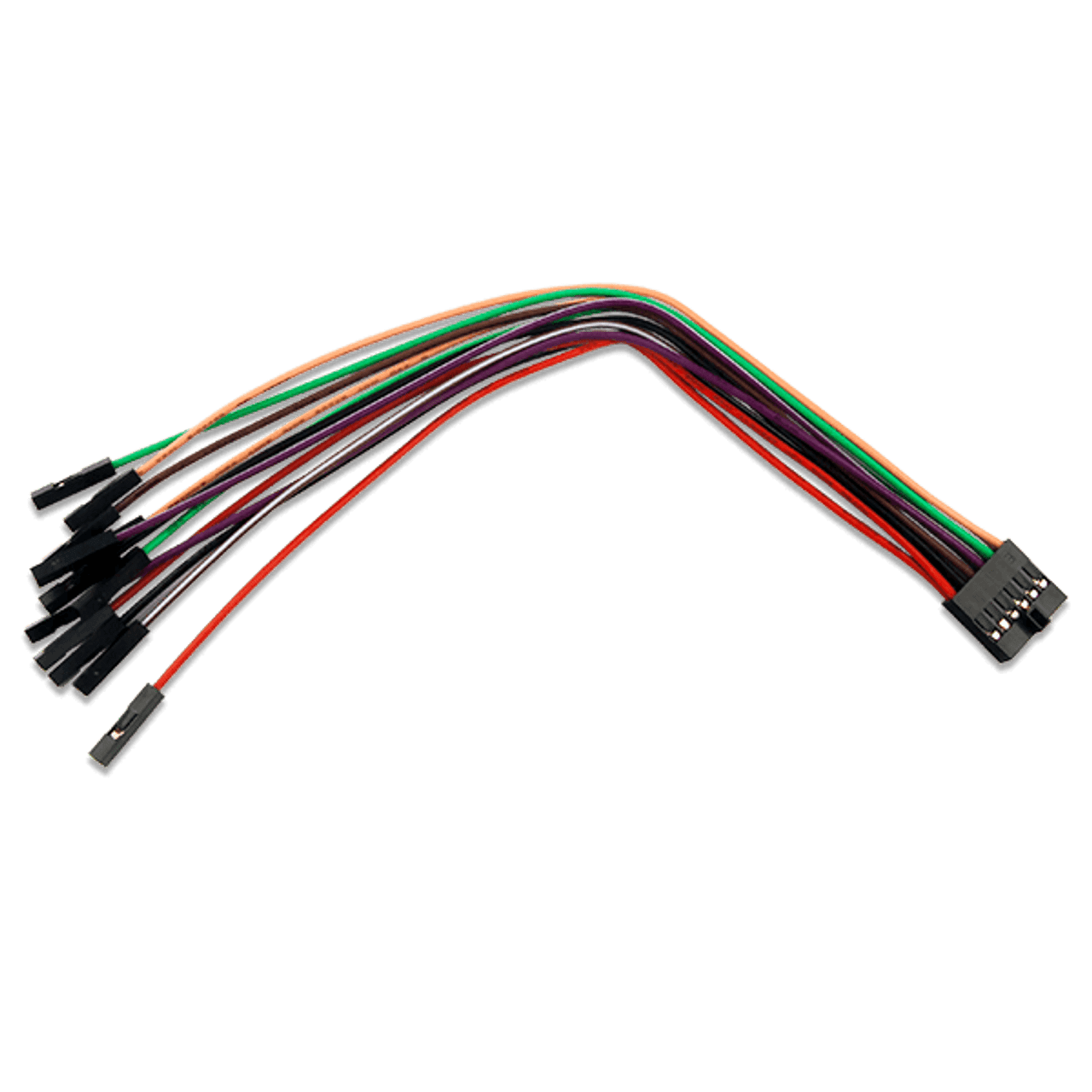

The 2X6 MTE Cable features two VIO wires (red), two GND wires (black), and eight signal wires (colored). It has a 2X6 female connector to connect to the Digital Discovery Inputs/Outputs, and twelve 1-pin female connectors for the device under test.
Features
- 2x6 keyed female MTE connector Compatible with the Digital Discovery
- Female-terminated probe ends
- Two VIO wires (red)
- Two GND wires (black)
- Eight signal wires (colored)
- Probe wires 170±5 mm long
What's Included
- One 2x6 MTE Cable
2x6 Flywires, Digital Discovery'niz için 2x16 pinli bir başlık sağlar. Bu, Digital Discovery'nizi daha fazla cihaza ve sensöre bağlamanıza olanak tanır.
Flywires, farklı renk kodlu sinyal kablolarına sahiptir. Bu, kabloları kolayca takip etmenizi sağlar.
2x6 Flywires, elektronik devre tasarımı, prototipleme ve testi için idealdir.
