Terasic Agilex 7 FPGA Starter Kit

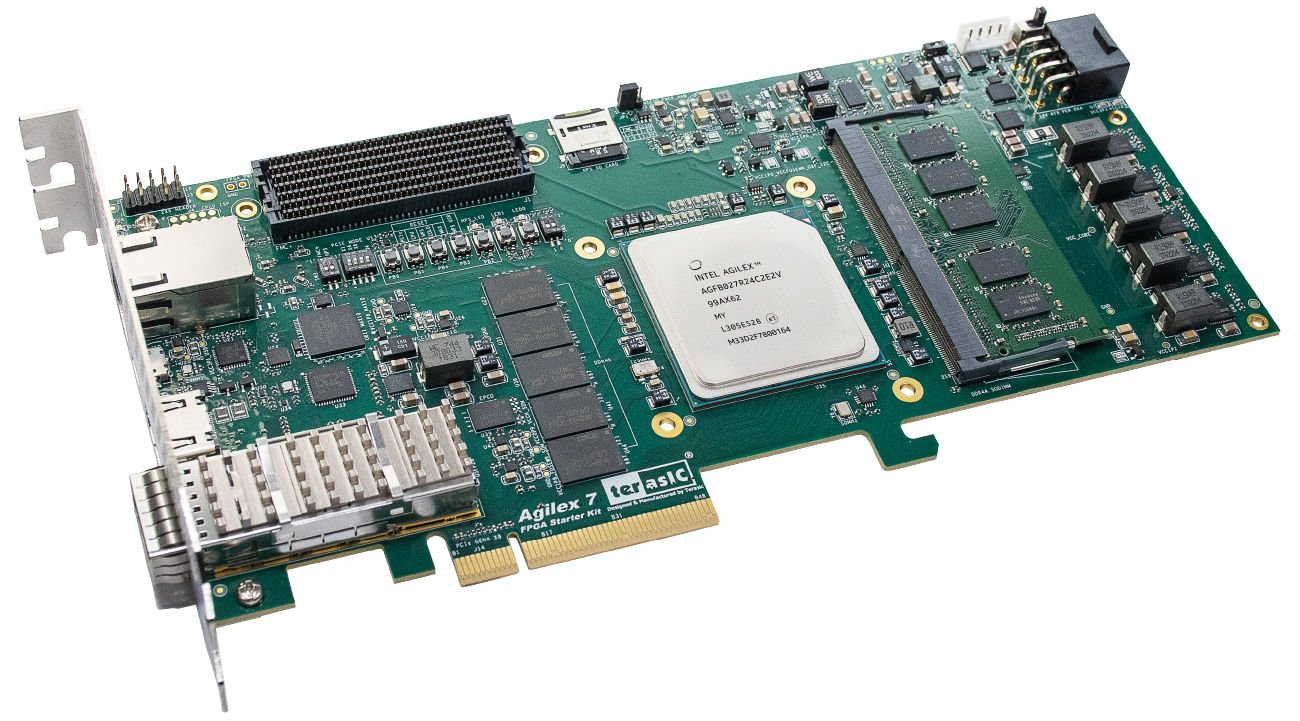

Agilex 7 FPGA Starter Kit
(P/N:P0728)
The Terasic Agilex 7 FPGA Starter Kit takes advantage of the latest Intel® Agilex™ 7 SoC FPGA F-Series devices with 2.7M logic elements, offering 50% higher fabric performance and 40% lower power consumption than equivalent Stratix® 10 devices.
The Terasic Agilex 7 FPGA Starter Kit combines a number of high-end hardware interfaces such as PCI Express 4.0 x8, one 100G QSFP-28 connector, on-board HDMI 2.1 output, along with up to 16GB of DDR4, to provide optimal acceleration and throughput for compute-intensive applications. In addition, the on-board FMC+ connector makes the board extensible and can work with various daughter cards, such as Terasic’s HDMI-FMC , XTS-FMC , 12G SDI-FMC , and P16E-FMCP daughter card.
The Agilex 7 FPGA Starter Kit also supports the Intel® oneAPI. Developers can customize their own unique acceleration workloads effortlessly by leveraging the Intel® Agilex™ FPGA on the Terasic Agilex 7 FPGA Starter Kit.
Specification
SYSTEM
- FPGA:
- AGFB027R24C2E2V
- AGFB027R24C2E2VB
- AGFB027R24C2E2VC
- Board Size: PCIe Full Height and 3/4 Length
- Onboard USB-Blaster II
- FPGA Boot Configuration: AS x4 (QSPI Flash 2 or 1 Gbit)
- Board Management System
- Power Monitor
- Temperature Monitor
- Auto Fan Control
FPGA Peripheral
- PCIe Gen4 x8
- HDMI 2.1 Output Port
- DDR4-A: DDR4 SO-DIMM Socket shared with HPS, shipping with 8GB ECC SO-DIMM
- DDR4-B: On-board components 8GB DDR4 with x72 data bus, support ECC
- One FMC+ connector with 16 transceivers, supporting VADJ 1.2V
- One QSFP28 Port for 100/40/25/10 GbE network interface
- 2x5 Timing Expansion Header
- User LED x2, Button x2, DIP Switch x2
Connection to FMC Daughter Card
- Connect to HDMI-FMC Daughter Card
- Connect to XTS-FMC Daughter Card
- Connect to P16E-FMCP Daughter Card
- Connect to 12G SDI-FMC Daughter Card
HPS Peripheral
- MicroSD Socket
- DDR4-A: DDR4 SO-DIMM Socket shared with FPGA
- Gigabit Ethernet PHY + RJ45
- UART to USB Port
- LED x1, Button x1, Cold Reset Button
Software Support
- FPGA Example Code
- Linux BSP
- OneAPI BSP
Block Diagram of the Agilex 7 FPGA Starter Kit
Agilex 7 FPGA Starter Kit Top-view
Agilex 7 FPGA Starter Kit Bottom-view
Agilex 7 FPGA Starter Kit Dimensions
Package Include
- Agilex 7 FPGA Starter Kit Board
- DDR4 ECC SO-DIMM Module (Installed)
- PCIe Bracket (Installed)
- MicroSD Card (Installed) + Card Reader
- Screw & Copper Pillar Package
- Air Cooler (Installed)
- Power Supply
- AC Power Cord
- USB to Micro USB Cable
- Quick Start Guide
Documents
CD-ROM
Linux BSP (Board Support Package): MicroSD Card Image
oneAPI BSP
| Title | Version | Size | Date | Download |
|---|---|---|---|---|
| A7SK oneAPI User Manual | 1.0 | 2,574(KB) | 2025-02-05 | |
| A7SK oneAPI BSP | 1.0 | - | 2025-02-05 |
More resources about IP and Dev. Kit are available on Intel User Forums.
