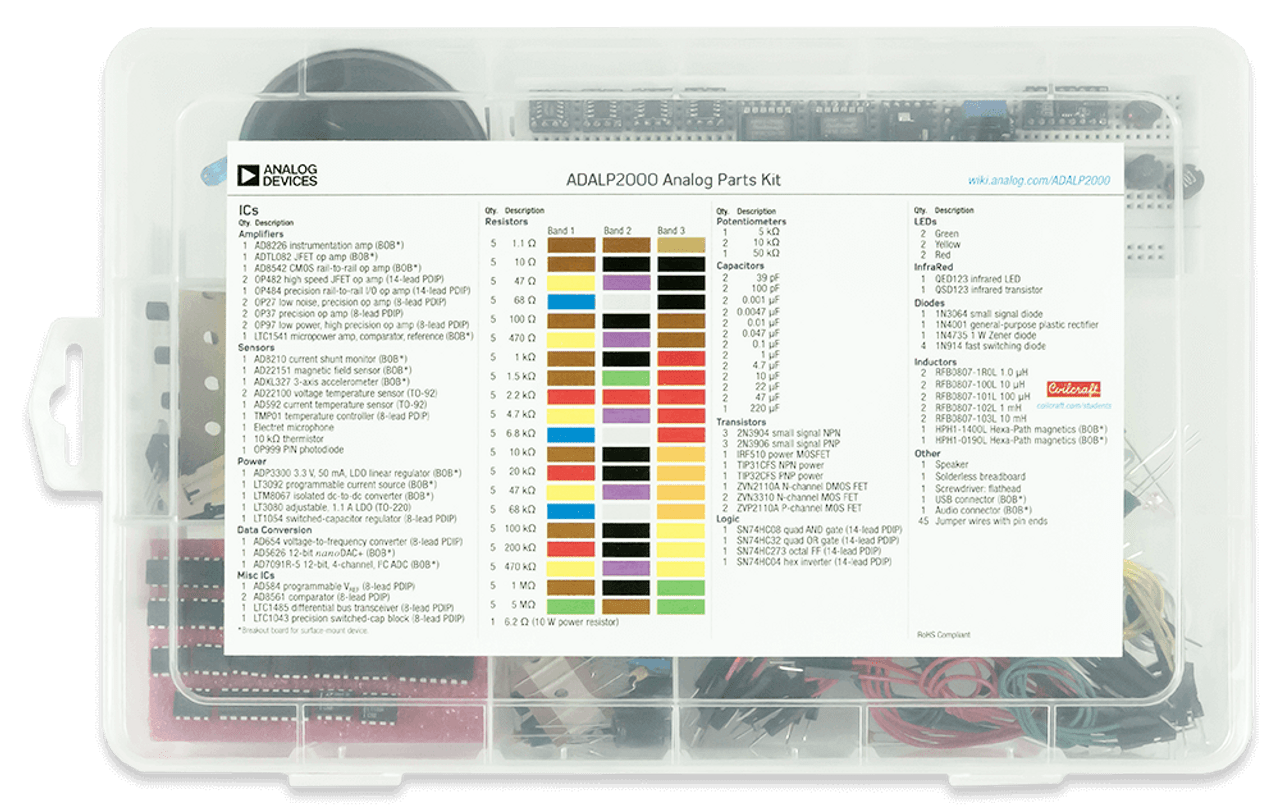

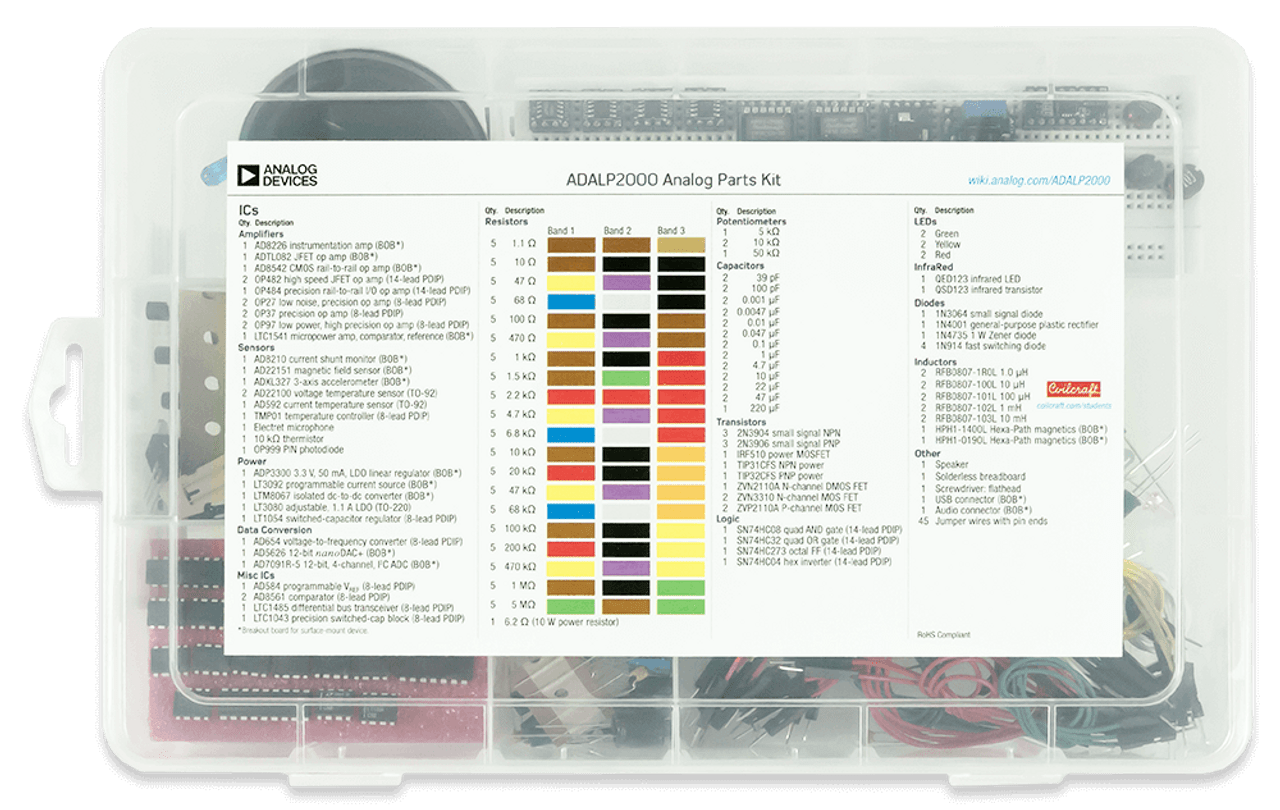

Whether you are getting started or a long time engineer picking a selection of parts to stock a lab can be a daunting task. Parts Kits provide a useful selection of parts to help get started. The Analog Parts Kit (ADALP2000) contains a large selection of components perfect for creating a wide variety of useful circuits and devices. Featuring components from Analog Devices®, the kit includes transistors, resistors, capacitors, diodes, sensors, and a variety of useful ICs including op-amps, convertors, and regulators. Finally, the kit also comes with an assortment of lead wires, a solderless breadboard, and a screwdriver.
The Analog Parts Kit is curated and supplied by Analog Devices, therefore the parts kit is subject to change that is not controlled by Digilent and may not be reflected on this page. A link to the Analog Devices datasheet for the kit, including a list of parts, is located in the Support Materials tab.
Digilent also offers the myParts Kit from TI, which provides a set of standard components well-suited to digital applications, like logic gates and A/D and D/A converters.
What's Included
Image | Part Number | Description | Link |
AD22151* | Magnetic Field Sensor | AD22151 | |
AD5626* | 12-Bit Digital to Analog Converter | AD5626 | |
AD7920* | 12-Bit Analog to Digital Converter | AD7920 | |
AD8210* | Current Shunt Monitor | AD8210 | |
AD8226* | Instrumentation Amplifier | AD8226 | |
AD8542* | CMOS Rail to Rail Op Amp | AD8542 | |
ADP3300 | 3.3V, 50mA Linear Regulator(LDO) | ADP3300 | |
ADTL082* | JFET Op-Amp | ADTL082 | |
ADXL327 | 3-Axis Low-G Accelerometer | ADXL327 | |
LT3092 | Programmable Current Source | LT3092 | |
LTC1541* | Microppower Amp, Comparator, & Reference | LTC1541 | |
LTM8067 | Isolated DC-DC Converter | LTM8067 | |
HPH1-0190 | Hexa-Path Transformer | HPH1-0190 | |
HPH1-1400 | Hexa-Path Transformer | HPH1-1400 | |
SJ-43515TS-SMT-TR | TRRS Microphone In | SJ-43515TS-SMT-TR | |
ZX62D-B-5PA8(30) | Micro USB Connector | ||
AD584 | Programmable Voltage Reference | AD584 | |
AD592 | Current Temperature Sensor | AD592 | |
AD654 | Voltage to Frequency Converter | AD654 | |
AD22100 | Voltage Temperature Sensor | AD22100 | |
AD8561 | Comparator | AD8561 | |
LT3080 | Adjustable 1.1A LDO | LT3080 | |
LTC1043 | Precision Switch-CAP Block | LTC1043 | |
LTC1054 | Switched-Capacitor Regulator | LTC1054 | |
LTC1485 | Differential Bus Transceiver | LTC1485 | |
OP27 | Low Noise, Precision Op Amp | OP27 | |
OP37 | Precision Op Amp | OP37 | |
OP97 | Low Noise, Precision Op Amp | OP97 | |
OP482 | High Speed JFET Op Amp | OP482 | |
OP484 | Precision Rail to Rail Op Amp | OP484 | |
TMP01 | Temperature Controller | TMP01 | |
SN74HC04N | Hex Inverter | SN74HC04N | |
SN74HC08N | Quad AND Gate | SN74HC08N | |
SN74HC32N | Quad OR Gate | SN74HC32N | |
SN74HC273N | Octal Flip Flop | SN74HC273N | |
Solderless Breadboard | Solderless Breadboard | ||
Jumper Wires | Male to Male Jumper Wires | ||
Screwdriver | Flathead Screwdriver | ||
Microphone | Microphone | ||
Speaker | 8-ohm Speaker | ||
QSC114 | Infrared Transistor T-1 | QSC114 | |
B57164K103J | 10kΩ Thermistor 5mm lead coated disk | B57164K103J | |
SQP10AJB-6R2 | 6.2Ω 10W Power Resistor Axial Cement Link | SQP10AJB-6R2 | |
3386C-1-502LF | Single Turn 5kΩ Potentiometer | Datasheet | |
3386C-1-103LF | Single Turn 10kΩ Potentiometer | ||
3386C-1-503LF | Single Turn 50kΩ Potentiometer | ||
2N3904 | NPN General Purpose Transistor TO-92 Link Marking: 2N3904 | 2N3904 | |
2N3906 | PNP General Purpose Transistor TO-92 Link Marking: 2N3906 | 2N3906 | |
IRF510 | N-Channel MOSFET 100V TO-220 Link Marking: IRF510 | IRF510 | |
TIP31CFS | NPN Epitaxial Transistor TO-220 Link Marking: TIP31 | TIP31CFS | |
TIP32CFS | PNP Epitaxial Transisitor TO-220 Link Marking: TIP32 | TIP32CFS | |
ZVN2110A | N-Channel Enhancement FET TO-92 Link Marking: ZVN211 | ZVN2110A | |
various LEDs (red, yellow, Green) | T-1 3/4 Link | ||
QED-123 | Infrared LED T-1 3/4 | QED-123 | |
QSD123 | Infrared Photo Transistor T-1 | QSD123 | |
1N3064 | Small Signal Diode DO-35 Link | 1N3064 | |
1N4001 | 50V General Purpose Rectifier DO-204 Link | 1N4001 | |
1N4735 | 6.2V (or 3.6V) Zener Diode DO-41 Link | 1N4735 | |
1N914 | Small Signal Diode DO-35 Link | 1N914 | |
OP999 | Photodiode T-1¾ | OP999 | |
|
|
Datasheet |
Analog Devices’in Analog Discovery için hazırladığı Analog Parçalar Kiti (ADALP2000), geniş bir bileşen seçkisi içerir ve çeşitli kullanışlı devreler ve cihazlar oluşturmak için mükemmeldir. Bu kit, Analog Devices® bileşenlerini içerir ve transistörler, dirençler, kapasitörler, diyotlar, sensörler ve op-amp’ler, dönüştürücüler ve regülatörler gibi kullanışlı entegre devreleri içerir. Ayrıca, lehimleme gerektirmeyen bir deney tahtası, bir dizi kurşun tel ve bir tornavida da içerir.
