Terasic Apollo Agilex® SOM

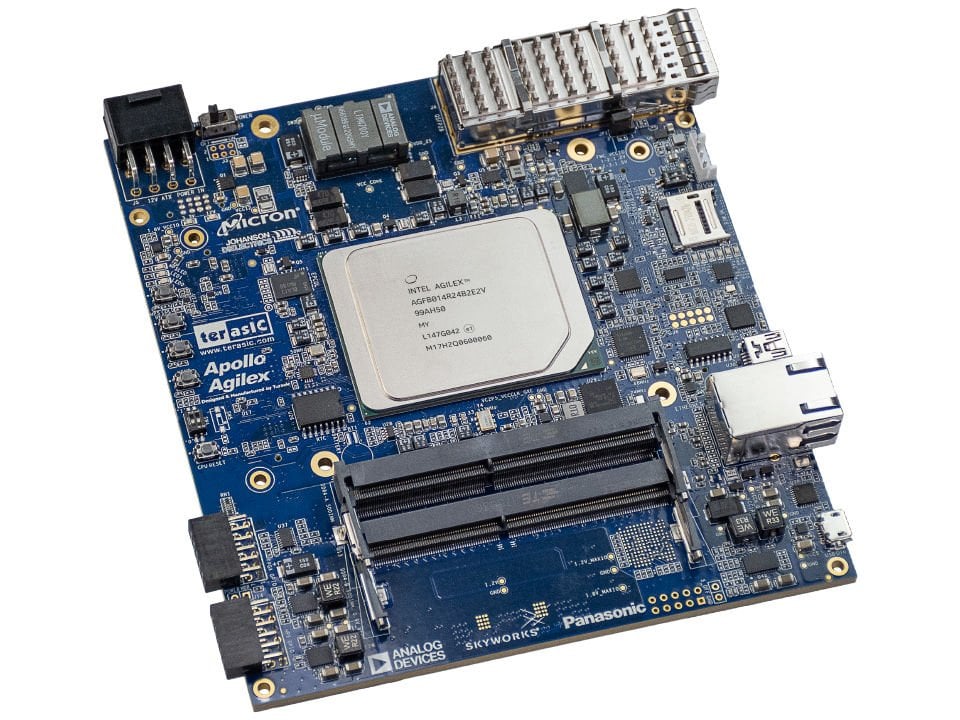

Apollo Agilex® SOM
(P/N:P0493)
Designed for high-performance HPC and AI-enabled edge solutions, Apollo Agilex® SOM packs unbeatable performance and provides highest real-time computing capability for edge and AI applications.
Apollo Agilex® SOM takes advantage of the latest Intel® Agilex® 7 SoC FPGA with 1400K logic elements to obtain performance and power breakthrough (with up to 40% lower power than Stratix 10 series). Combining high-end hardware interfaces such as high-capacity and high-bandwidth DDR4 SO-DIMM Sockets (up to 32GB DDR4), on-board QSFP28 connector, on-board USB-Blaster II, and FMC/FMC+ connectors for I/O expansion, the board delivers more than 2X the performance of previous generation development kits.
Through the integrated hardware features, developers can achieve optimized performance, flexible and rapid development, and simplify the path from concept to production with the Apollo Agilex® SOM.
Specification
Agilex SOM Module
- FPGA: Agilex AGFB014R24B2E2V (1400K LEs)
- Interface: FMC and FMC+ connector
- Dimension: 145 mm x 133 mm
- Onboard USB-Blaster II
- Support ASx4 Configure Mode with 1Gbits QSPI Flash
- Power Monitor
- Temperature Monitor
- Auto Fan Control
FPGA Side
- Two DDR4 SO-DIMM Sockets (each with 72-bit ECC, speed up to 2666MT/s, and size up to 32GB)
- Onboard QSFP28
- One FMC+ Connector for FMC/FMC+ Daughter Card
- One FMC Connector for FMC Daughter Card
- 1.2V 2x6 GPIO header
- LED x2, Button x2, DIP Switch x2, CPU Reset Button
Connection to FMC Daughter Card
- Connect to HDMI-FMC Daughter Card
- Connect to XTS-FMC Daughter Card
- Connect to P16E-FMCP Daughter Card
- Connect to 12G SDI-FMC Daughter Card
HPS Side
- Quad-core 64-bit Arm Cortex-A53 (up to 1.4GHz)
- MicroSD Socket
- One SO-DIMM shared with FPGA
- Gigabit Ethernet PHY + RJ45
- USB OTG PHY + Micro USB Connector
- UART-to-USB
- RTC
- LED x1, Button x1, Cold Reset Button
- 3.3V 2x6 GPIO header for GPIO/SPI/I2C/UART
Software Support
- FPGA Example Code
- Linux BSP
Block Diagram of the Apollo Agilex® SOM

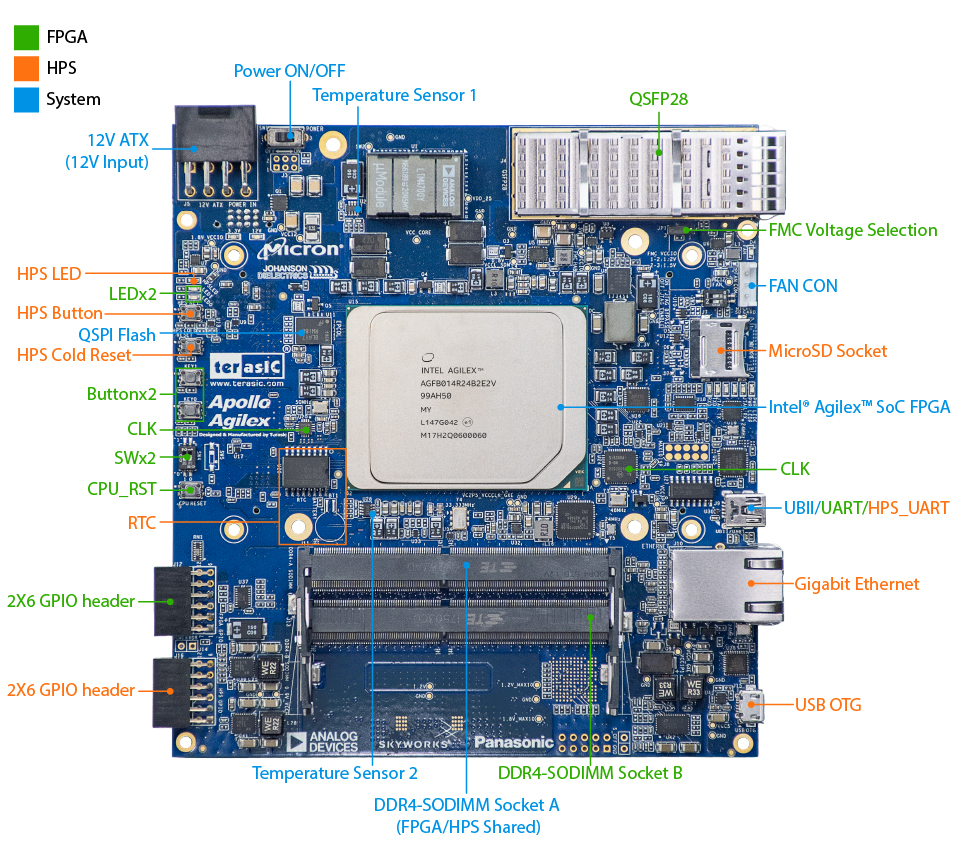

Apollo Agilex® SOM Top-view

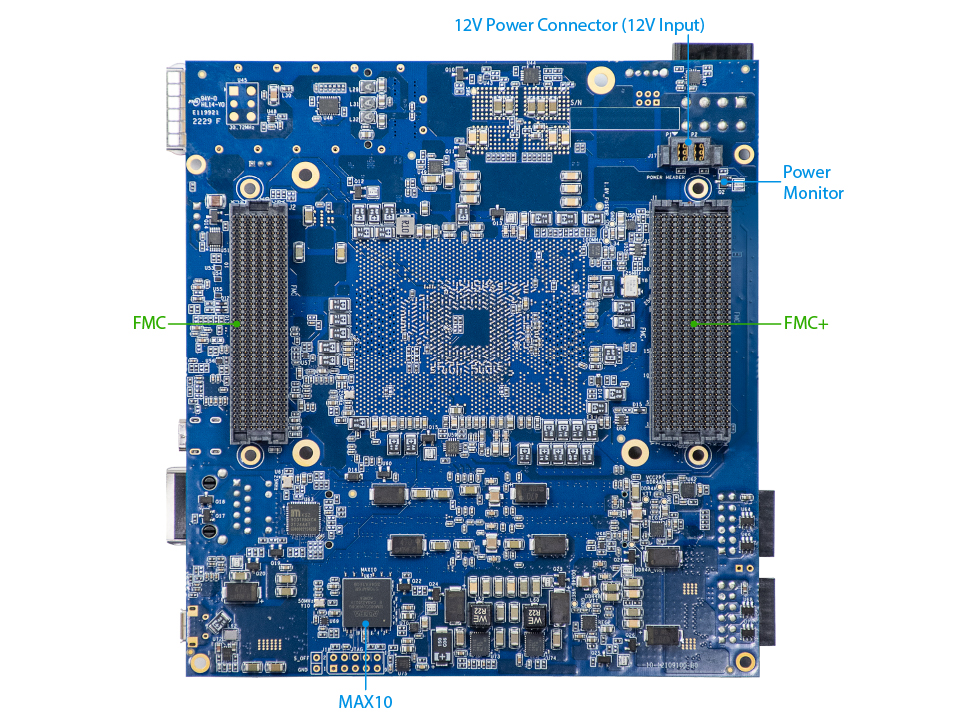

Apollo Agilex® SOM Bottom-view

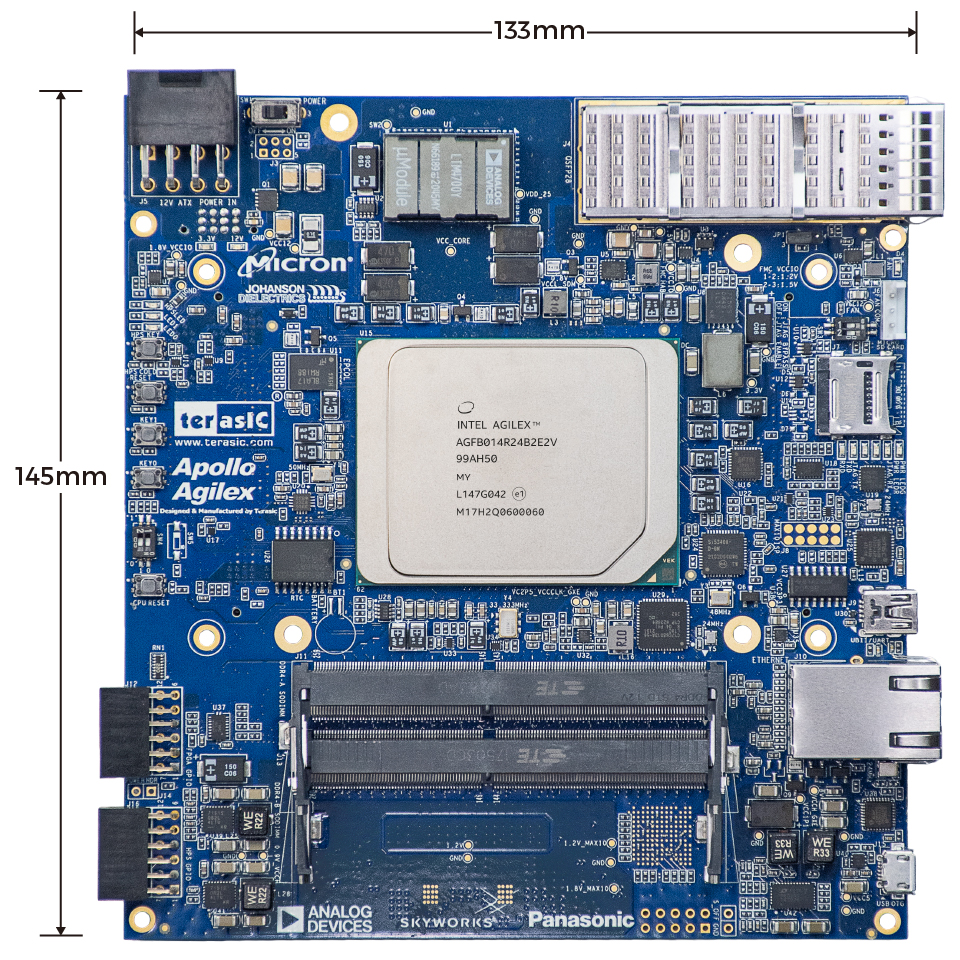

Apollo Agilex® SOM Dimensions

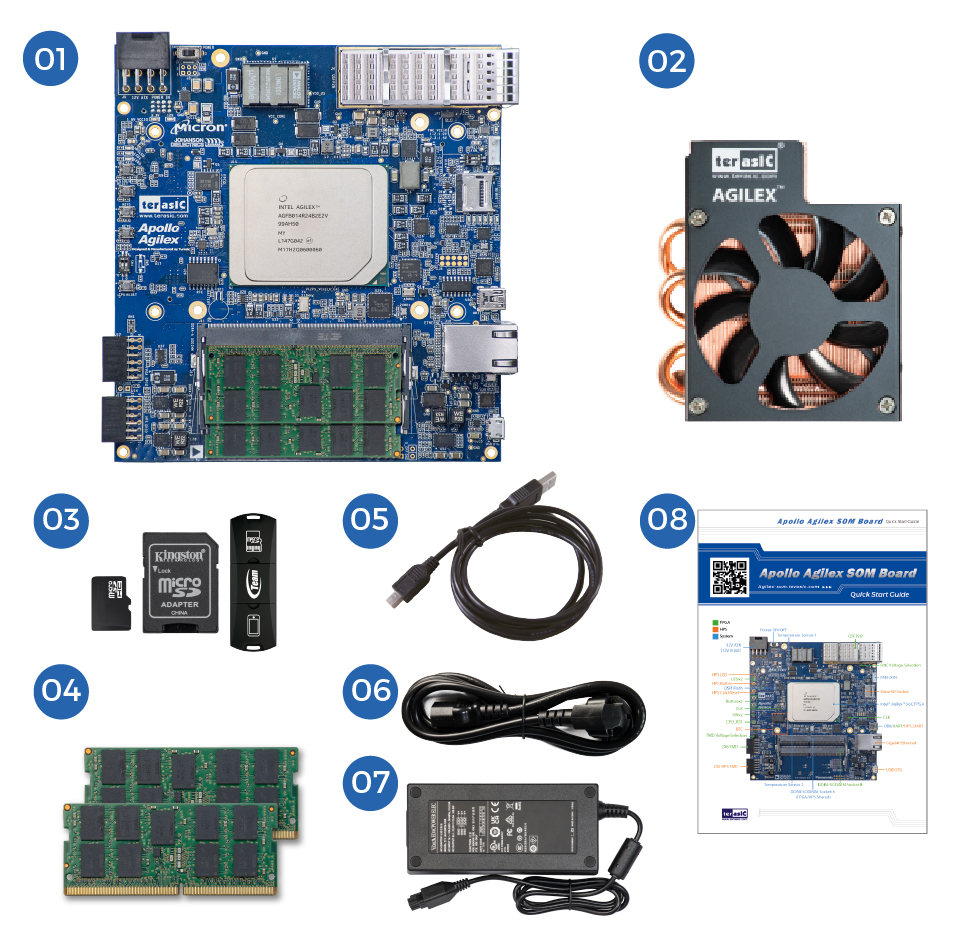

Package Include
- Apollo Agilex® SOM
- Heatsink (Installed)
- MicroSD Card (Installed) + Card Reader
- DDR4 ECC SO-DIMM Module x2 (Installed)
- Mini USB Cable
- AC Power Cord
- 12V / 180W Power Supply
- Quick Start Guide
Documents
| Title | Version | Size | Date | Download |
|---|---|---|---|---|
| Product Brief | 1.0.0 | 373(KB) | 2023-09-20 | |
| Apollo Agilex® SOM User Manual | 1.3 | 4,359(KB) | 2023-06-15 |
CD-ROM
Linux BSP (Board Support Package): MicroSD Card Image
More resources about IP and Dev. Kit are available on Intel User Forums.
