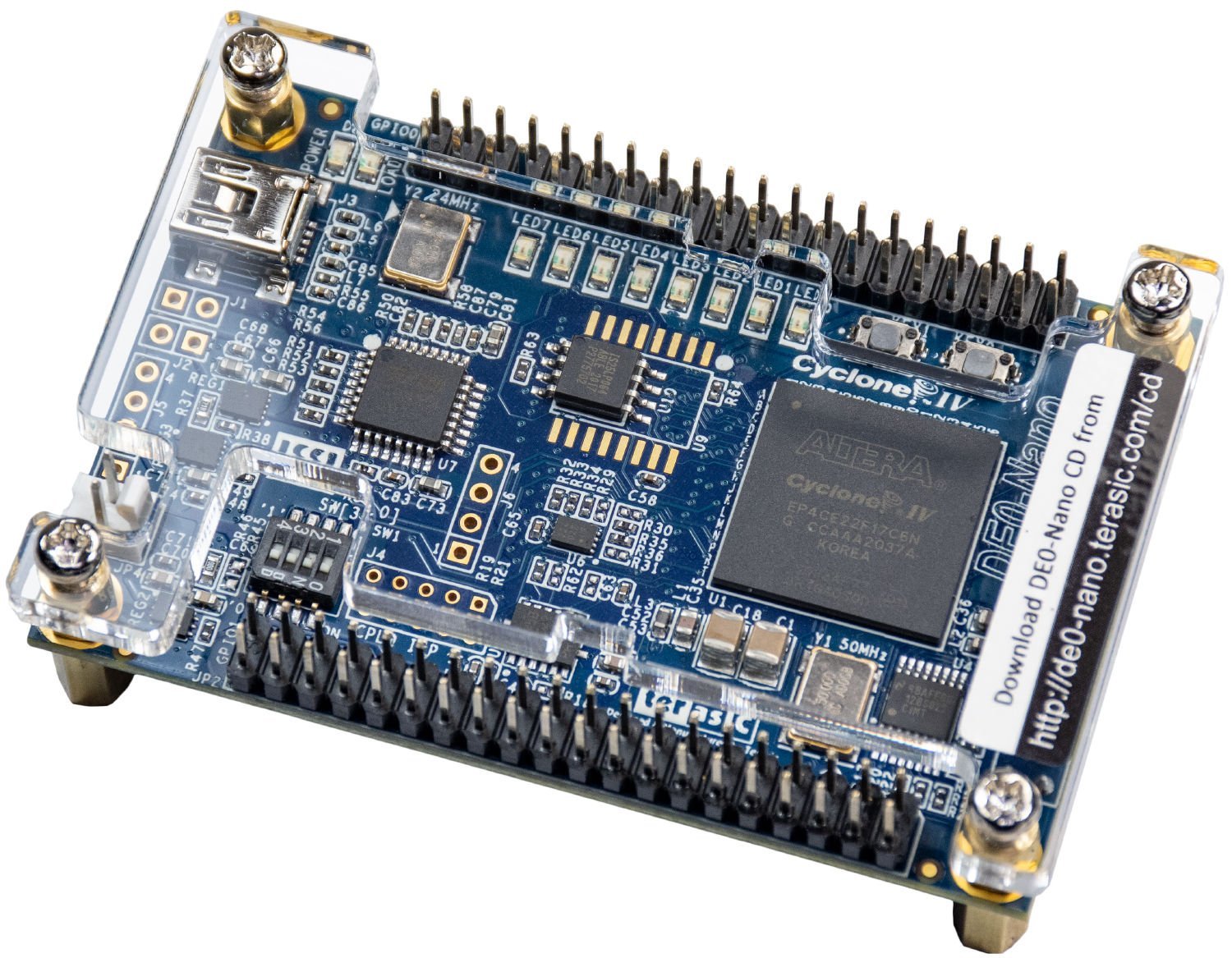

DE0-Nano Development and Education Board
DE0-Nano Development and Education Board
(P/N:P0082)
The DE0-Nano board introduces a compact-sized FPGA development platform suited for prototyping circuit designs such as robots and "portable" projects. The board is designed to be used in the simplest possible implementation targeting the Cyclone IV device up to 22,320 LEs.
The DE0-Nano has a collection of interfaces including two external GPIO headers to extend designs beyond the DE0-Nano board, on-board memory devices including SDRAM and EEPROM for larger data storage and frame buffering, as well as general user peripheral with LEDs and push-buttons.
The advantages of the DE0-Nano board include its size and weight, as well as its ability to be reconfigured without carrying superfluous hardware, setting itself apart from other general purpose development boards. In addition, for mobile designs where portable power is crucial, the DE0-Nano provides designers with three power scheme options including a USB mini-AB port, 2-pin external power header and two DC 5V pins.
Specification
Cyclone® IV EP4CE22F17C6N FPGA
- 22,320 Logic elements (LEs)
- 594 Embedded memory (Kbits)
- 66 Embedded 18 x 18 multipliers
- 4 General-purpose PLLs
- 153 Maximum FPGA I/O pins
Configuration Status and Set-Up Elements
- On-board USB-Blaster circuit for programming
- FPGA Serial Configuration Device (EPCS)
Expansion Header
- Two 40-pin Headers (GPIOs) provides 72 3.3V I/O pins
- Two 5V power pins, two 3.3V power pins and four ground pins
- One 26-pin header provides 16 3.3V digital I/O pins and 8 analog input pins to connect to analog sensors, etc.
Memory Devices
- 32MB SDRAM
- 2Kb I2C EEPROM
General User Input/Output
- 8 green LEDs
- 2 debounced push-buttons
- 4 dip switches
Connectivity
- Connect D5M
Connect with 5-megapixel CMOS Sensor (D5M) - Connect LTM
Connect with LCD Touch Screen Module (LTM)
G-Sensor
- ADI ADXL345, 3-axis accelerometer with high resolution (13-bit)
A/D Converter
- NS ADC128S022, 8-Channel, 12-bit A/D Converter
- 50 ksps to 200 ksps
Clock System
- On-board 50MHz clock oscillator
Power Supply
- USB Type mini-AB port (5V)
- Two DC 5V pins of the GPIO headers (5V)
- 2-pin external power header (3.6-5.7V)
Block Diagram of the Apollo Agilex® SOM
DE0-Nano Development and Education Board Top-view
DE0-Nano Development and Education Board Bottom-view
Package Include
- Altera DE0-Nano Board
- USB Mini-B Cable
- DE0-Nano Quick Start Guide
DE0-Nano System CD can be downloaded from: http://de0-nano.terasic.com/cd
Documents
CD-ROM
| Title | Version | Size | Date | Download |
|---|---|---|---|---|
| DE0-Nano CD-ROM | 1.2.8 | 2023-06-15 | ||
| DE0-Nano Control Panel | 1.4.0 | 2018-12-18 | ||
| DE0-Nano System Builder | 1.0.3 | 2017-04-28 |
More resources about IP and Dev. Kit are available on Intel User Forums.
Altera Software
Demonstrations
- Breathing LEDs (watch video demo)
- ADC Reading (watch video demo)
- SOPC Demo (watch video demo)
- G-Sensor (watch video demo)
DE0-Nano Control Panel
Allows users to access various components on the DE0-Nano board from a host computer.
DE0-Nano System Builder
This tool will allow users to create a Quartus II project on their custom design for the DE0-Nano board with the top-level design file, pin assignments, and I/O standard settings automatically generated.
