EasyMx PRO™ v7 for STM32

Development board for STM32 ARM® Cortex™-M3 and Cortex™-M4, M7, M0 devices.

It contains many on-board modules necessary for the application development, including multimedia, Ethernet, USB, CAN and other.

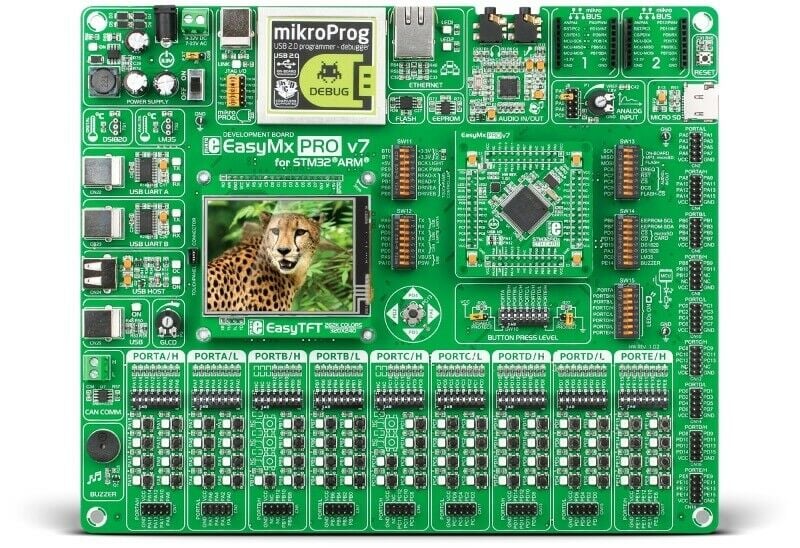

EasyMx PRO v7 for STM32 ARM® is a development board for STM32 ARM® Cortex™-M3 and Cortex™-M4, M7, M0 devices. It contains many on-board modules necessary for device development, including multimedia, Ethernet, USB, CAN and other. On-board mikroProg™ programmer and debugger supports over 180 ARM® microcontrollers. Board is delivered with MCU card containing STM32F107VCT6.

Kart Üzerindeki Donanımlar

Board üzerindeki USB 2.0 destekli programlama arabirimi, ilave bir programlayıcıya ihtiyaç duymadan ve PIC entegresini devre üzerinden sökmeden programlama imkanı sağlamaktadır. Ürünle birlikte gelen mikroProg yazılımı sayesinde tüm PIC mikrodenetleyicilerini programlayabilirsiniz. mikroProg Suite for PIC User Manual Drivers for mikroProg Suite mikroProg - mikroICD User Manual
Ethernet On-Board Ethernet connector (RJ-45) allows you to develop ethernet applications.	USB/UART Write UART applications for laptops too. We provided two USB-UART modules.
Touch Screen EasyTFT board with touch screen enables you to develop multimedia applications.	Buzzer Piezo Buzzer allows you to implement audio signalization feature in your prototype.
Storage Board contains microSD card slot for storing large amount of data on external media.	Audio Audio in and out jacks are connected to on-board mp3 codec chip.

MIKROBUS™ SOCKETS

With two mikroBUS™ sockets you can add dozens of new functionality to your board with minimum hardware adjustments. Collection of mikroBUS™ compatible Click Boards is growing rapidly, and we have designed them with great care, so you don’t have to make any complicated settings. Just plug your board in, and you are good to go.

MCU

The MCU STM32F107VCT6 card is included in the package with the board. It's also sold separately if you'd like a spare one to integrate into your own hardware or for any other reason.

Paket İçeriği

• EasyMx PRO v7 board in an antistatic bag

• EasyTFT Dokunmatik Ekran

• USB Kablo

Not:dsPIC33, PIC24 ve PIC32 MCU modülleri opsiyoneldir.

Dokümanlar
EasyMx PRO v7 for STM32 Teknik Şartnamesi	İndir
EasyMx PRO v7 for STM32 Teknik Doküman	İndir
EasyMx PRO v7 for STM32 Şematik	İndir
Örnek Uygulamalar ve Kaynaklar	İndir
