Endüstriyel Panel PC PPC-A9-070-C
 PPC-A9-070-C



This product features the .iMX 6 series of application processors, the CS-SOM-iMX6Q. The .iMX6Q Quad processor represents the latest achievement in integrated multimedia applications processors. They feature advanced implementation of the quad Arm® Cortex®-A9 core, which operates at speeds up to 1.2 GHz.



Industrial PC

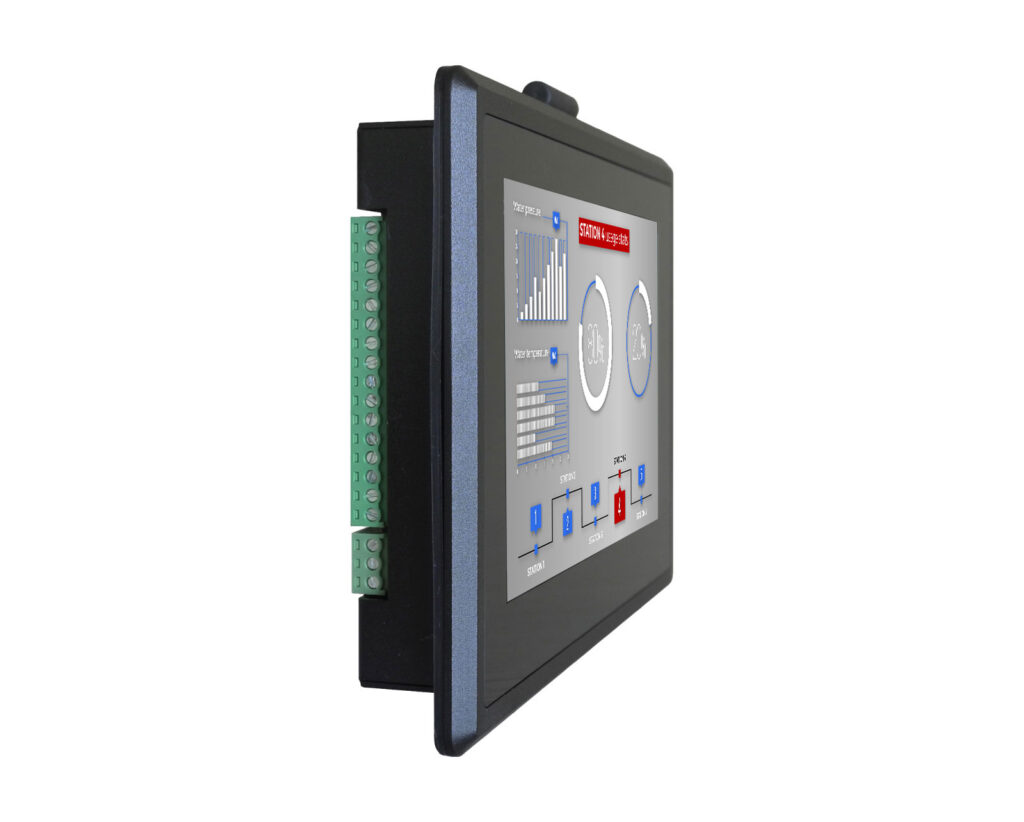

The PPC-A9-070-C (PN CS10600F070P) is a high-quality industrial panel computer, that features a 7-inch LCD with capacitive touchscreen, a quad-core Cortex-A9 processor with 2GB DDR3 RAM and 8GB eMMC Flash, an onboard WiFi and Bluetooth, 1Gb Ethernet, 3 USB 2.0 ports, 2 CAN ports, 2 RS232/RS485 ports, 1 HDMI port for a secondary monitor, a SATA-II channel for extra storage, as well as a 3.5mm audio connector.

DOCUMENTATION



Hardware Features

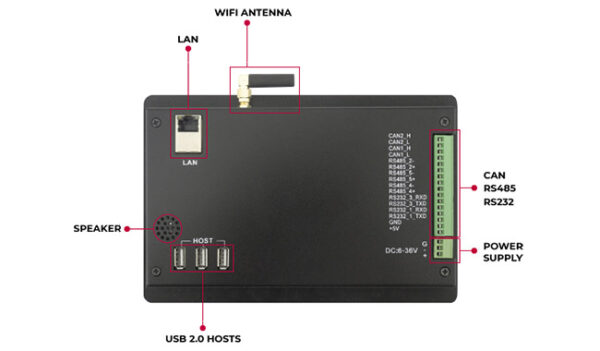

The PPC-A9-070-C has several expansion connectors on the back side – 3 USB 2.0, 1 USB OTG, 1 LAN, 2 CAN, 2 RS485, and 2 RS232. It also features a WiFi and Bluetooth antenna, an HDMI port, and a 3.5mm audio connector.

The CAN, RS485, and RS232 connector is a 16 Pin 3.81mm screw terminal connector (as you can see from the image).

Since this display has 5 UART channels, they can be configured as RS232 or RS485. One UART channel is used by Bluetooth – the default setting is 2x RS232 + 2x RS485 + Bluetooth. Please contact us if you require a different configuration.

The RS232 and the RS485 port speed is up to 115200 Baud.

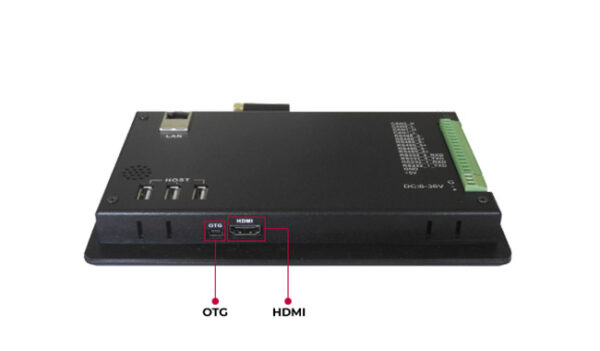

The PPC-A9-070-C has one channel 1Gb Ethernet port and one HDMI port which can be configured by software. The maximum resolution supported on the external HDMI monitor is 1920×1080 at 60Hz.




When it comes to audio capabilities, the PPC-A9-070-C has one 3.5mm Output/input connector and a 2W  internal speaker.

The PPC-A9-070-C uses a wide range of power input: DC 6~36V. The typical power consumption is 6W.

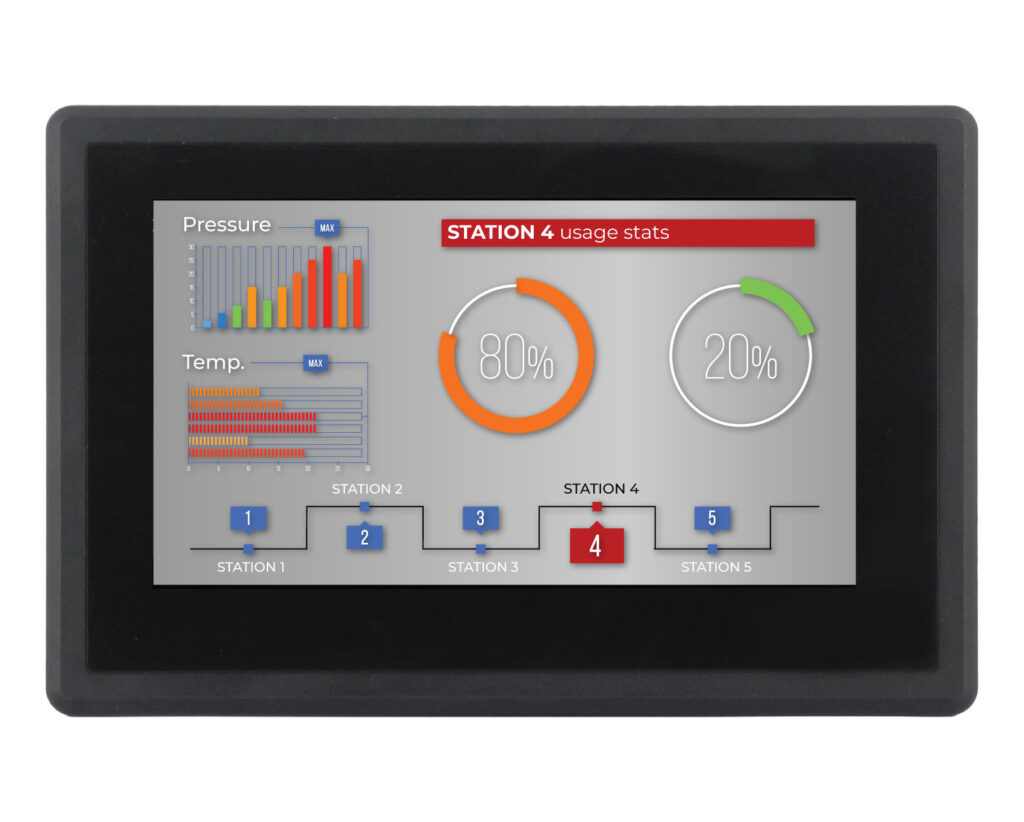

The PPC-A9-070-C features a 7’’ display with a 1024×600 pixel resolution, and a 5-point capacitive touch screen. 5-point capacitive touchscreens offer stable and accurate control over the device, as well as great image clarity.

The screen offers a very high brightness of 500 nits (or 1,713 ANSI Lumens). Regarding the viewing angle, the screen offers various angles: top, bottom, left, and right view.

If your application requires a secondary display the HDMI port on the back of the panel allows the device to work in a double monitor configuration up to 1920×1080 pixel resolution at a 60Hz refresh rate.








Performances and reliability


At the core of each Chipsee product lies a SOM (System-on-Module). All our products share the same core. This System-on-Module makes it possible to integrate a whole computer into a device, significantly simplifying the customization of the product. It makes your application easily upgradable – without needing to rewrite a single line of code your application is upgraded.

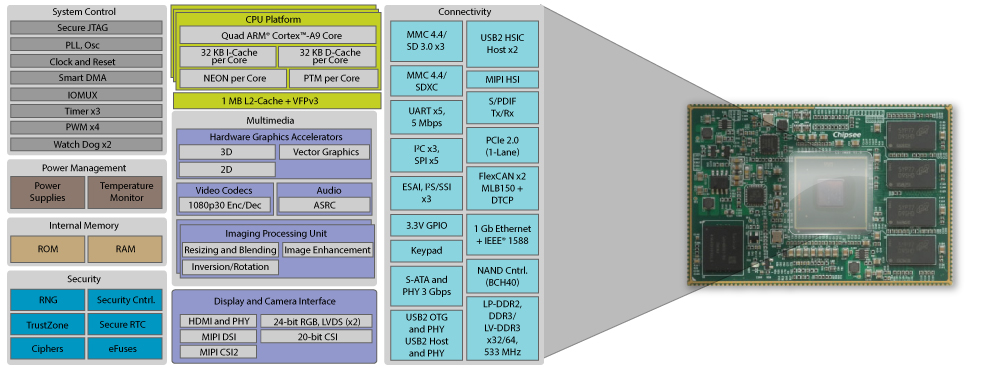

This product features the .iMX 6 series of application processors, the CS-SOM-iMX6Q.



The .iMX6Q Quad processor represents the latest achievement in integrated multimedia applications processors. They feature advanced implementation of the quad Arm® Cortex®-A9 core, which operates at speeds up to 1.2 GHz. They include 2D and 3D graphics processors, 1080p video processing, and integrated power management. Each processor provides a 64-bit DDR3/DDR3L/LPDDR2 memory interface and a number of other interfaces for connecting peripherals, such as WLAN, Bluetooth®, GPS, hard drive, displays, and camera sensors.







Multiple OS choices

This product comes with a pre-installed OS of your choice. Please use the drop-down menu to choose the one you need, and we’ll pre-install it for you.

It supports the following operating systems:

  • Chipsee Linux
  • Android 4.3
  • Android 6.0
  • Android 8.0
  • Ubuntu 12.04
  • Ubuntu 14.04



Weight 680 g
Dimensions 206 × 135 × 30.1 mm
Form-factor Panel
Display Size (inch.) 7.0"
Resolution 1024*600
Brightness (NIT) 500 NIT
Touch Screen Capacitive
CPU ARM Cortex A9: NXP iMX6Q
Frequency 1 GHz
RAM 2GB DDR3
FLASH 8GB
Bluetooth Onboard Bluetooth
WiFi Onboard WiFi
HDMI 1x HDMI
SATA 1x SATA II
Ethernet 1x LAN 1000M
USB 1x USB 2.0 OTG, 3x USB 2.0 HOST
GPIO 8x GPIO
RS485 2x RS485
CAN 2x CAN
RS232 2x RS232
External storage TF (microSD) Card Slot
Audio 3.5mm Output/input Connector, Internal Speaker
OS Chipsee Linux Qt
Power Input 6~36V DC
Power Consumption 6W
Certification CE
Working Temperature -20°C ~ 70°C.
Buzzer Yes
Mounting Method Panel Mounting





Stok Durumu : Stokta Var
Inch : 7.0''
İşlemci : ARM – NXP, TI
