Endüstriyel Panel PC PPC-A9-121-C
 PPC-A9-121-C



At the core of each Chipsee product lies a System-on-Module. This means all the products share the same core. It makes your application easily upgradable – without needing to rewrite a single line of code your application is upgraded, thanks to the same System-on-Module. This product features the .iMX 6 series of application processors, the CS-SOM-iMX6Q.



Industrial PC

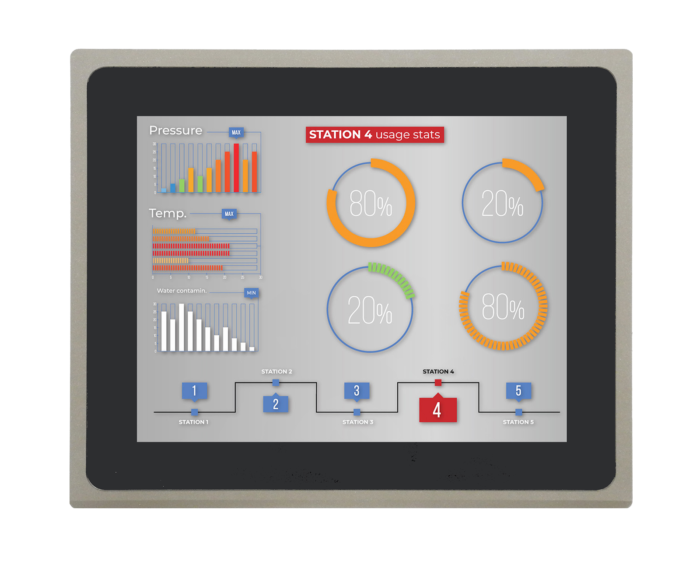

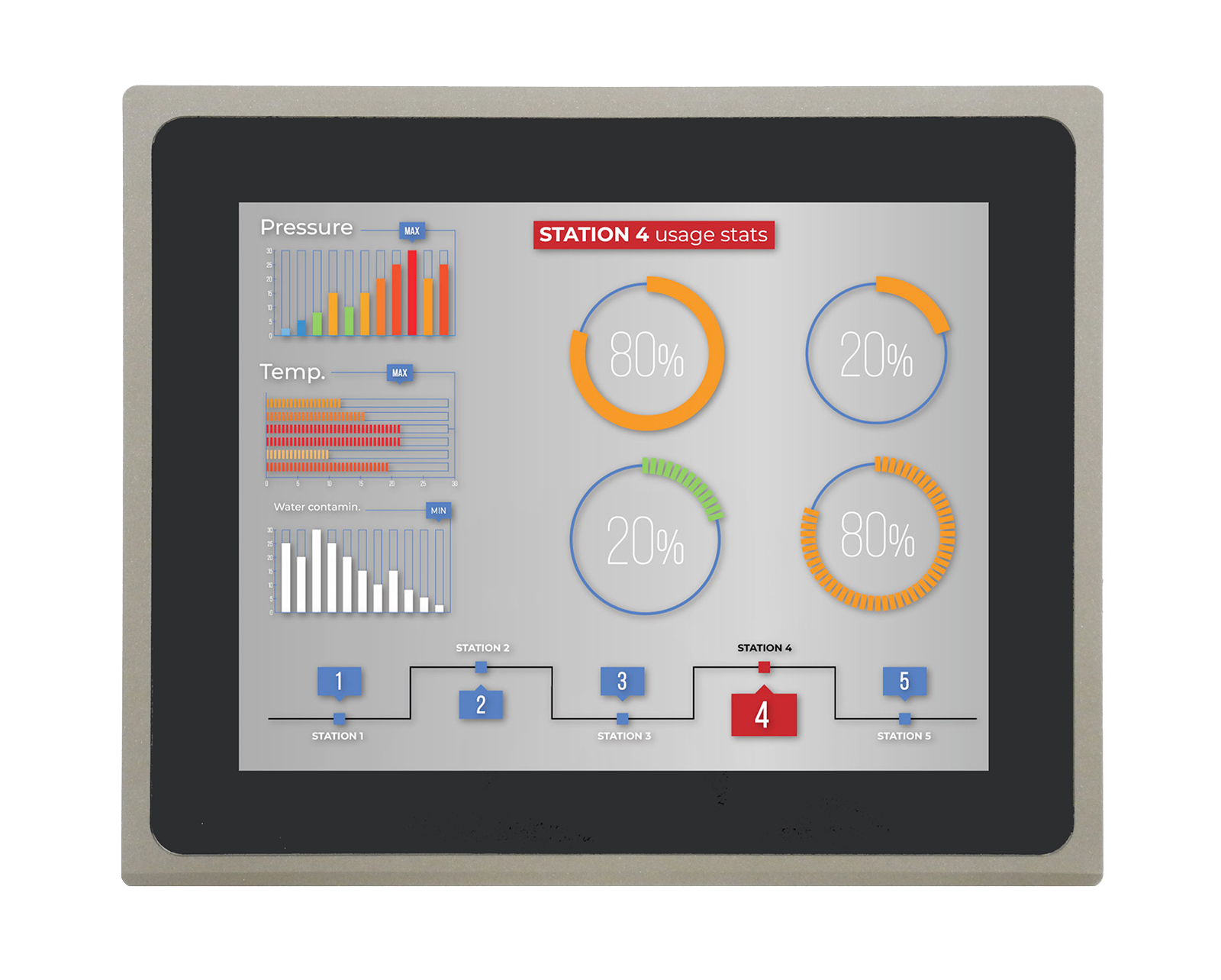

The PPC-A9-121-C (PN CS10768F121P) is a high-quality industrial panel computer, that features a 12.1-inch LCD with capacitive touchscreen, a quad-core Cortex-A9 processor with 2GB DDR3 RAM and 8GB eMMC Flash, an onboard WiFi and Bluetooth, 1Gb Ethernet, 4 USB 2.0 ports, 4 RS232 ports (on request RS485 or CAN), 1 HDMI port for a secondary monitor, a SATA-II channel for extra storage, as well as a 3.5mm audio connector.

DOCUMENTATION



Hardware Features

The PPC-A9-121-C has several expansion connectors on the back side – 4 USB 2.0 connectors, 1 LAN connector, and 4 RS232 connectors. It also features a WiFi and Bluetooth antenna, an HDMI connector, and a 3.5mm audio connector.

The WiFi/Bluetooth module is based on the Realtek RTL8723BS an 802.11bgn 2.4G single-chip that integrates Wireless LAN (WLAN) and an SDIO interface controller with integrated Bluetooth 2.1/3.0/4.0 controller. It combines a WLAN MAC, a 1T1R capable WLAN baseband, and WLAN RF in a single chip.

Please note that a 4G/LTE module can be added. Contact us for more information. The product also features a SIM card slot.

This computer has 5 UART channels. One UART channel is used by Bluetooth, the remaining 4 are routed to the 4 DB9 ports (COM1-4); the default setting is 4 * RS232, but it is possible to configure each port individually as RS232, RS485, CAN. Please contact us if you require a different configuration.

The speed of the RS232 port is up to 115200 Baud.

The PPC-A9-121-C has one channel 1Gb Ethernet port, and one HDMI port which can be configured by software. The maximum resolution supported on the external HDMI monitor is 1920×1080 at 60Hz.
When it comes to audio capabilities, the PPC-A9-121-C has one 3.5mm Output/input connector and a 2W internal speaker.

Display and Touch Screen

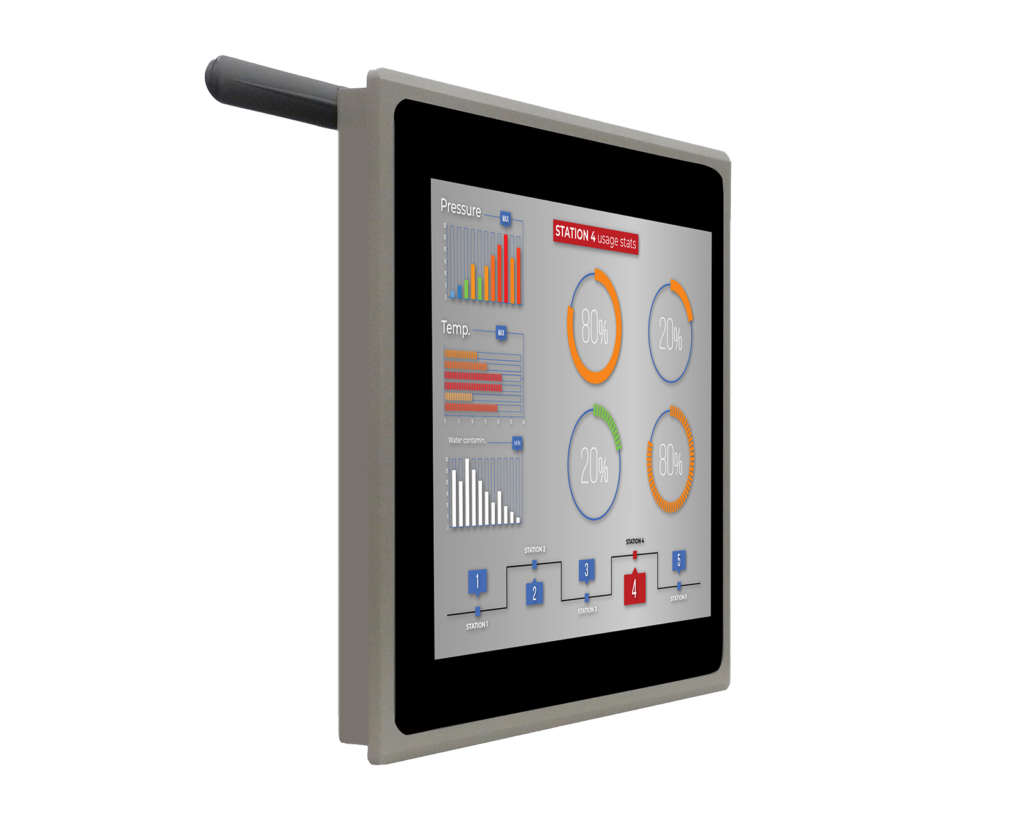

The PPC-A9-121-C features a 12.1’’ display with a 1024×768 pixel resolution and a 10-point capacitive touch screen. 10-point capacitive touchscreens offer a stable and accurate control over the device, as well as great image clarity.

The screen offers very high brightness of 250 nits. When it comes to the viewing angle, the screen offers various angles: top, bottom, left, and right view.

If your application requires a secondary display the HDMI port on the back of the panel allows the device to work in a double monitor configuration up to 1920×1080 pixel resolution at a 60Hz refresh rate.









Performances and reliability


This System-on-Module makes it possible to integrate a whole computer into a device, significantly simplifying the customization of the device. This is why we are able to offer fast turnaround customization of all our products.

At the core of each Chipsee product lies a System-on-Module. This means all the products share the same core. It makes your application easily upgradable – without needing to rewrite a single line of code your application is upgraded, thanks to the same System-on-Module.



This product features the .iMX 6 series of application processors, the CS-SOM-iMX6Q.

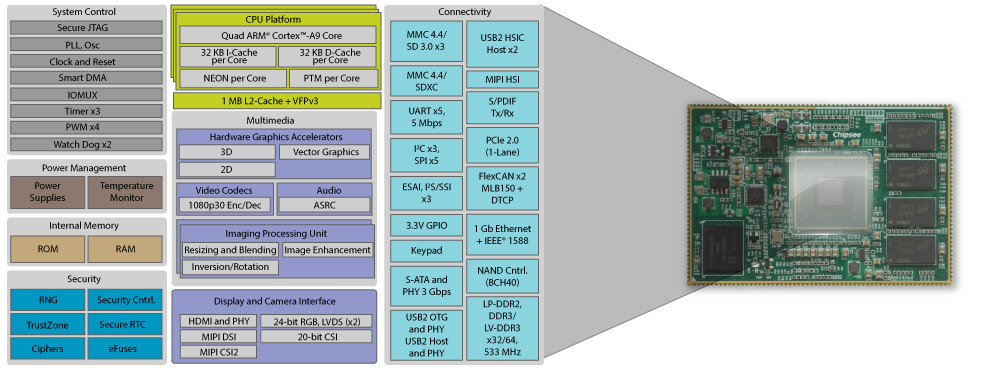

The .iMX6Q Quad processor represents the latest achievement in integrated multimedia applications processors. They feature advanced implementation of the quad Arm® Cortex®-A9 core, which operates at speeds up to 1.2 GHz. They include 2D and 3D graphics processors, 1080p video processing, and integrated power management. Each processor provides a 64-bit DDR3/DDR3L/LPDDR2 memory interface and a number of other interfaces for connecting peripherals, such as WLAN, Bluetooth®, GPS, hard drive, displays, and camera sensors.









Multiple OS choices

This product comes with a pre-installed OS of your choice. Please use the drop-down menu to choose the one you need, and we’ll pre-install it for you.

It supports the following operating systems:

  • Linux with Qt5.5
  • Android 4.3
  • Android 6.0
  • Android 8.0
  • Ubuntu 12.04
  • Ubuntu 14.04




Weight 3200 g
Dimensions 440 × 325 × 90 mm
Form-factor Panel
Display Size (inch.) 12.1"
Resolution 1024*768
Brightness (NIT) 250 NIT
Touch Screen Capacitive
CPU ARM Cortex A9: NXP iMX6Q
RAM 2GB DDR3
FLASH 8GB
WiFi Onboard WiFi
Bluetooth Onboard Bluetooth
4G Onboard 4G / Optional
HDMI 1x HDMI
SATA 1x SATA II
Ethernet 1x LAN 1000M
USB 1x USB 2.0 OTG, 4x USB 2.0 HOST
GPIO 8 x GPIO optional
RS232 4x RS232(can be customized to RS485 or CAN)
Buzzer Yes
Audio 3.5mm Output/input Connector, Internal 2W Speaker
Power Consumption 10W
OS Android, Ubuntu
External storage TF (microSD) Card Slot
Power Input 15~36V DC
Working Temperature -20°C ~ 70°C.
Weight (g) 3300
Certification CE
Mounting Method VESA
