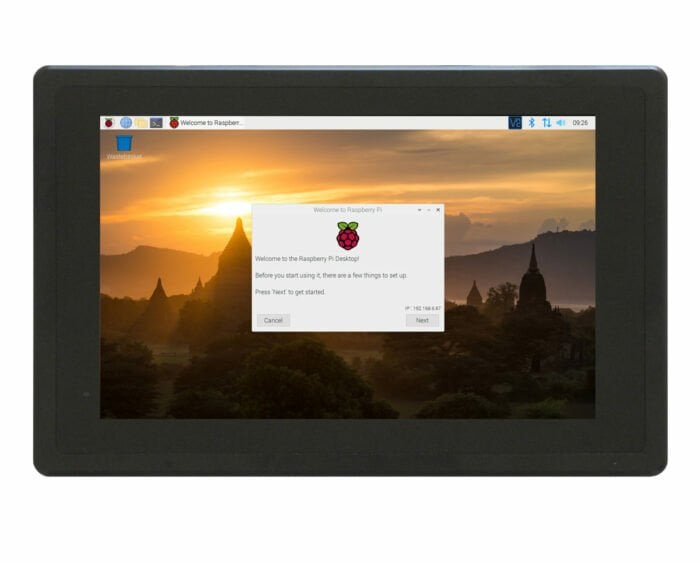

Endüstriyel Panel PC PPC-CM3-101
The PPC-CM3-101 is full-featured, rugged, designed and certified for industrial usage, ready to deploy industrial applications based around the Raspberry Pi® Compute Module 3. The Compute Module 3 contains the BCM2837 processor and 1GB RAM, with a processor speed of 1.2GHz.

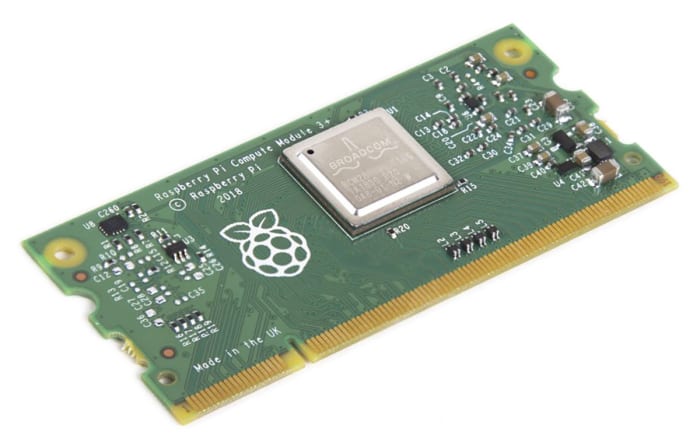

Based around the Raspberry Pi® Compute Module
The PPC-CM3-101 (CS12800RA101P) is an industrial computer for the Raspberry Pi® Compute Module 3. Available in panel form-factor, the Industrial Pi features a 10.1-inch IPS display (1280×800 pixels and 500 nits of brightness) with a 5-point capacitive touch panel, and RS232 and RS485 ports, multiple opto-isolated I/O, Ethernet, double USB, WiFi, Bluetooth, 4G (optional), double TF card, on-board audio, RTC with a backup battery, audio I/O, and power management. You can add a 4G/LTE module to the product, by choosing it in the optional modules section. The CM3+ Raspberry Pi® module is included in the product. The system of the Industrial Pi is compatible with both CM3 and CM3+. Please contact us if you would like to purchase the product without the CM3+ module.

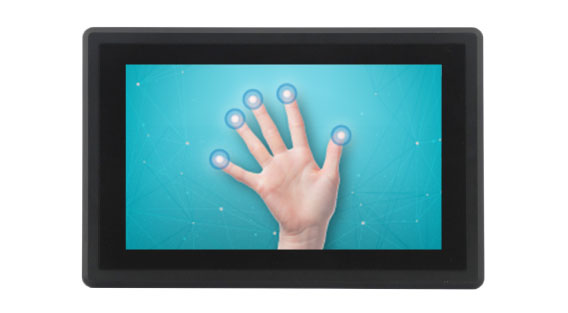

Capacitive Touch Panel
Software and OS
Peripherals/Hardware

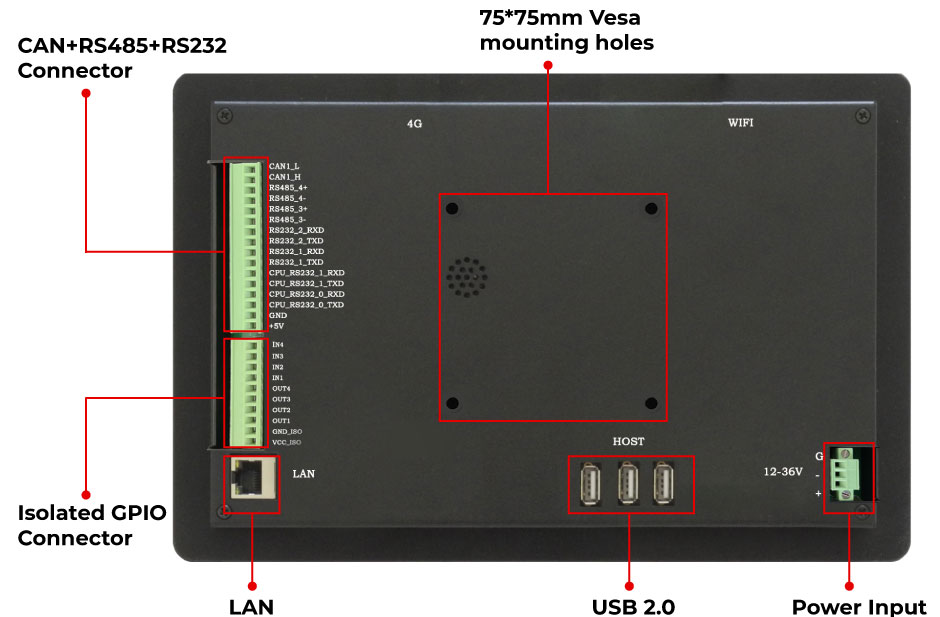

The PPC-CM3-101 features two TF card interfaces, three USB connectors, and one LAN connector. It also has four RS232 channels, two RS485 channels, and eight Opto-Isolated GPIOs. Concerning audio, it has one 3.5mm audio connector, one 2W internal speaker, and one Buzzer. The module also features onboard WiFi and Bluetooth, and an optional 4G/LTE module.
| Weight | 1500 g |
|---|---|
| Dimensions | 280 × 185 × 27.5 mm |
| Form-factor | Panel |
| CPU | ARM Cortex-A53: Raspberry Pi® CM3 |
| FLASH | 8GB |
| RAM | 1GB |
| Display Size (inch.) | 10.1" |
| Brightness (NIT) | 500 NIT |
| Touch Screen | Capacitive |
| Resolution | 1280*800 |
| Bluetooth | Onboard Bluetooth |
| WiFi | Onboard WiFi |
| 4G | Yes, Not mounted by default |
| Ethernet | 1x LAN 100M |
| Camera | Yes, Not mounted by default |
| USB | 1x USB 2.0 OTG, 2x USB 2.0 HOST |
| GPIO | Opto-Isolated GPIO, 4Input,4 Output, Can drive up 500mA current every Channel at most (external power source) |
| CAN | there is one CAN BUS channel by default. Can be customized to two CAN BUS channel on request |
| RS485 | Default 2*RS485 ( Optional 4 x RS485 at most ) |
| RS232 | Default 4 *RS232 Channels ( 1 debug port ) |
| Buzzer | Yes |
| OS | Debian |
| External storage | 2 TF card slots One TF Card slot design for Lite version that has no eMMC. The other one TF Card slot design for storage expansion |
| Power Input | 6~36V DC |
| Power Consumption | 7W Typical |
| Working Temperature | -20°C ~ 70°C. |
| Mounting Method | Panel Mounting & VESA |
| IP65 | Compliant front panel |
Certification
Certification
Powered By Raspberry Pi Official Certificate
| Stok Durumu | : | Stokta Var |
| Inch | : | 10.1'' |
| İşlemci | : | ARM – Raspberry Pi |
Endüstriyel Panel PC PPC-CM3-101
Chipsee Endüstriyel Panel PC PPC-CM3-101, 10.1 inçlik ekranı, ARM Cortex-A53: Raspberry Pi işlemcisi ve Raspberry Pi işletim sistemi ile endüstriyel otomasyon projeleriniz için ideal bir çözümdür. Yüksek performans, dayanıklılık ve çoklu işletim seçenekleriyle öne çıkan bu endüstriyel panel PC, sizin özel ihtiyaçlarınıza uygun esnek bir çözüm sunar.
