Kart Tipi Endüstriyel PC EPC-A9-101-C
 EPC-A9-101-C


This product features the .iMX 6 series of application processors, the CS-SOM-iMX6Q. The .iMX6Q Quad processor represents the latest achievement in integrated multimedia applications processors. They feature advanced implementation of the quad Arm® Cortex®-A9 core, which operates at speeds up to 1.2 GHz.



Industrial PC

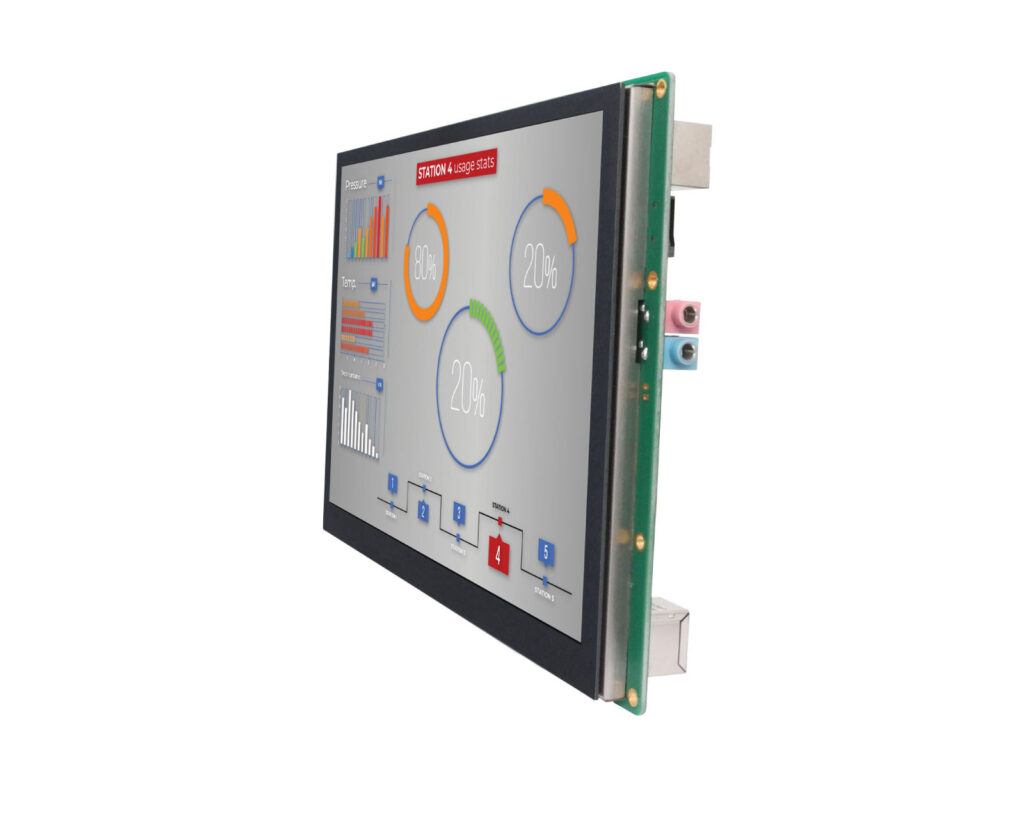

The EPC-A9-101-C (PN CS12800F101E) is a high-quality industrial embedded computer, that features a 10.1-inch LCD with capacitive touchscreen, a quad-core Cortex-A9 processor with 2GB DDR3 RAM and 8GB eMMC Flash, an onboard WiFi and Bluetooth, one optional 4G module, 1Gb Ethernet, 3 USB 2.0 ports, 2 CAN ports, 2 RS232, 3 RS485 ports, 1 HDMI port for a secondary monitor, a SATA-II channel for extra storage, as well as a 3.5mm audio connector.

DOCUMENTATION



Hardware Features

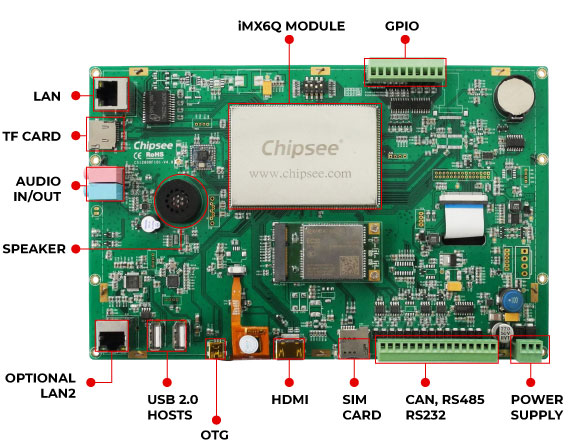

The EPC-A9-101-C has several expansion connectors on the backside – 3 USB 2.0 connectors, 2 LAN connectors, 2 CAN connectors, 3 RS485 connectors, and 2 RS232 connectors. It also features a WiFi and Bluetooth antenna, an HDMI connector, and a 3.5mm audio connector.
The WiFi/Bluetooth module is based on the Realtek RTL8723BS an 802.11bgn 2.4G single-chip that integrates Wireless LAN (WLAN) and an SDIO interface controller with an integrated Bluetooth 2.1/3.0/4.0 controller. It combines a WLAN MAC, a 1T1R capable WLAN baseband, and WLAN RF in a single chip.
Please note that a 4G/LTE module doesn’t come with the product by default, but can be added. Use the menu in the top right corner of the product page to add this module if you need it. The product also features a SIM card slot.
The CAN, RS485, RS232 connector is a 16 Pin 3.81mm screw terminal connector (as you can see from the image).
Since this display has 5 UART channels, they can be configured as RS232 or RS485. One UART channel is used by Bluetooth, so the default setting is 2 * RS232 + 2 * RS485 + Bluetooth. Please contact us if you need a different configuration from the default one.



The speed of the RS232 and the RS485 port is up to 115200 Baud.
The EPC-A9-101-C has one channel 1Gb Ethernet port, and one HDMI port which can be configured by software. The maximum resolution supported on the external HDMI monitor is 1920×1080 at 60Hz.
When it comes to audio capabilities, the EPC-A9-101-C product has one 3.5mm Output/Input connector and a 2W internal speaker.

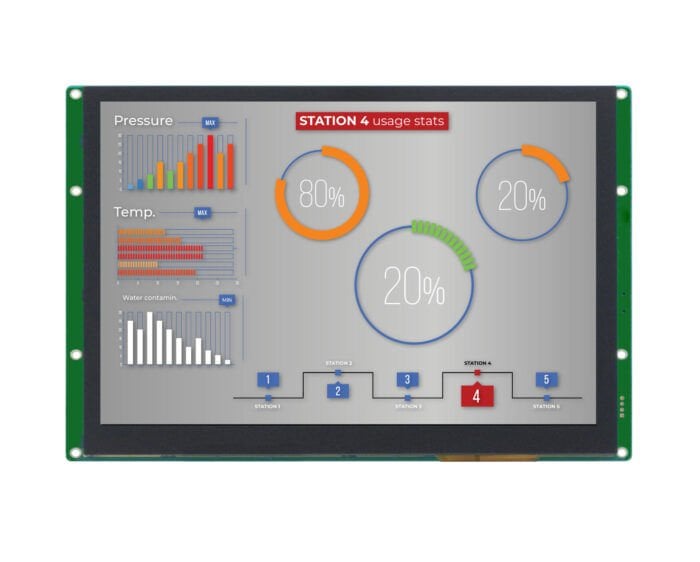

The EPC-A9-101-C features a 10.1’’ display with a 1280×800 pixel resolution, and a 10-point capacitive touch screen that offers a stable and accurate control over the device, as well as great image clarity.
The brightness of the screen is 250 nits. When it comes to the viewing angle, the screen offers various angles: top, bottom, left, and right view.
If your application requires a secondary display the HDMI port on the back of the panel allows the device to work in a double monitor configuration up to 1920×1080 pixel resolution at a 60Hz refresh rate.







Performances and reliability

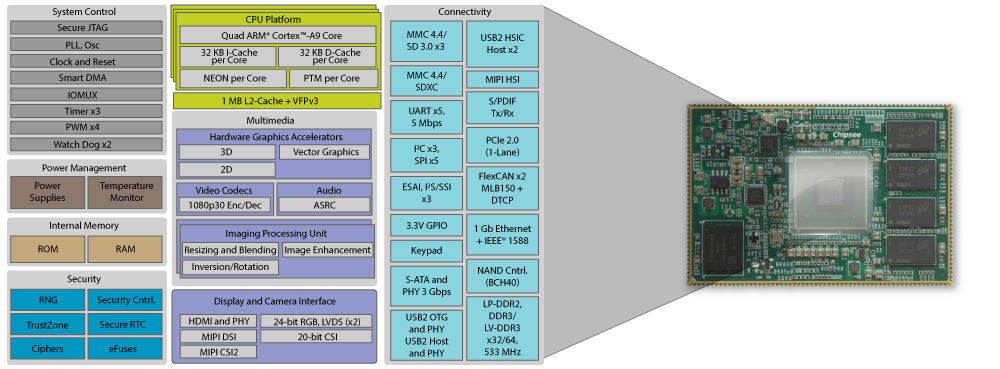

At the core of each Chipsee product lies a SOM (System-on-Module). All our products share the same core. This System-on-Module makes it possible to integrate a whole computer into a device, significantly simplifying the customization of the product. It makes your application easily upgradable – without needing to rewrite a single line of code your application is upgraded.

This product features the .iMX 6 series of application processors, the CS-SOM-iMX6Q.



The .iMX6Q Quad processor represents the latest achievement in integrated multimedia applications processors. They feature advanced implementation of the quad Arm® Cortex®-A9 core, which operates at speeds up to 1.2 GHz. They include 2D and 3D graphics processors, 1080p video processing, and integrated power management. Each processor provides a 64-bit DDR3/DDR3L/LPDDR2 memory interface and a number of other interfaces for connecting peripherals, such as WLAN, Bluetooth®, GPS, hard drive, displays, and camera sensors.






Multiple OS choices

This product comes with a pre-installed OS of your choice. Please use the drop-down menu to choose the one you need, and we’ll pre-install it for you.

It supports the following operating systems:
  • Linux with Qt5.5
  • Android 4.3
  • Android 6.0
  • Android 8.0
  • Ubuntu 12.04
  • Ubuntu 14.04



Weight 600 g
Dimensions 245 × 155 × 11 mm
Form-factor Embedded
Display Size (inch.) 10.1"
Resolution 1280*800
Brightness (NIT) 250 NIT
Touch Screen Capacitive
CPU ARM Cortex A9: NXP iMX6Q
FLASH 8GB
RAM 2GB DDR3
External storage TF card, supports up to 32GB SDHC
Bluetooth Onboard Bluetooth
WiFi Onboard WiFi
4G Onboard 4G / Optional
Ethernet 1 x LAN 1000M, 1 x LAN 100M Optional, support POE
HDMI 1x HDMI
SATA 1x SATA II
USB 2 x USB 2.0 Host,1 x USB OTG
GPIO 8x GPIO
RS485 3x RS485
RS232 2x RS232
CAN 2x CAN
Buzzer Yes
Power Consumption 7W
Power Input 12~36V DC
Working Temperature -20°C ~ 70°C.
OS Android, Ubuntu
Mounting Method Embedded Mounting
Certification CE
