Kart Tipi Endüstriyel PC EPC-CM4-050
The EPC-CM4-050 is Chipsee’s tiniest display-size industrial computer. It is full-featured, rugged, designed, and certified for industrial usage – and with its 5” display, it fits the industrial applications requiring compact space. It is ready to deploy industrial applications based around the Raspberry Pi® Compute Module 4.

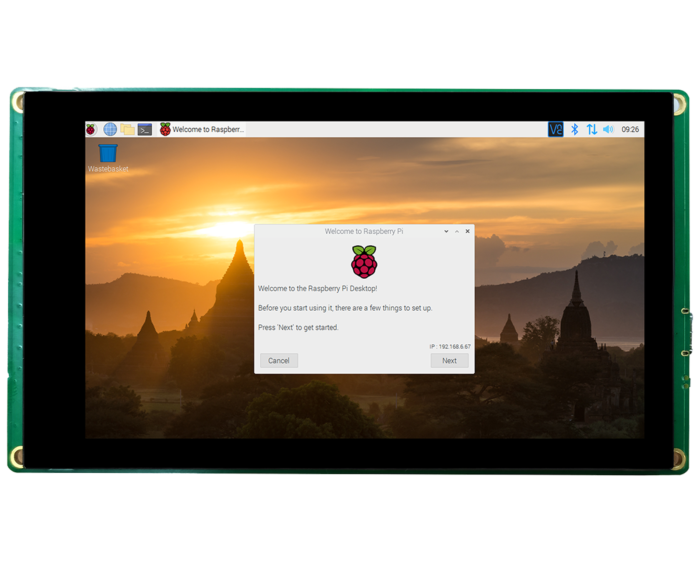

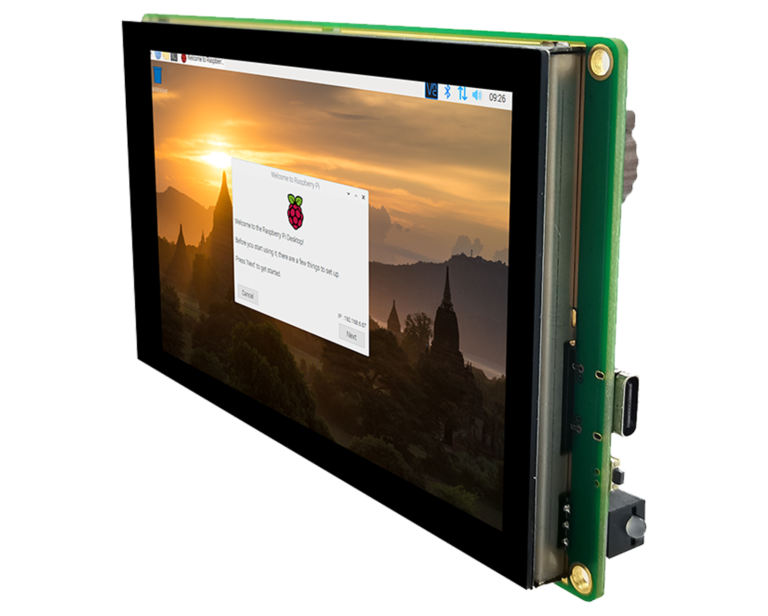

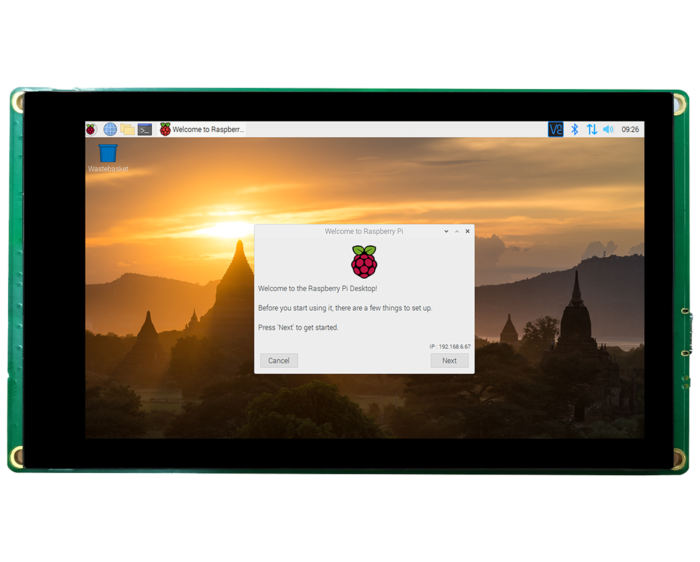

The EPC-CM4-050 (CS12720RA4050E) is an industrial computer for the Raspberry Pi® Compute Module 4. Available in embedded form-factor, the Industrial Pi features a 5-inch IPS display with a 5-point capacitive touch panel, RS232, RS485, and CAN ports, Ethernet, double USB, TF card, on-board audio, RTC with a backup battery, and power management. The CM4 Raspberry Pi® module is not included in the product by default. If you need the CM4 module, please contact when ordering.
Hardware Features
Performances and reliabilityv
The EPC-CM4-050 is powered by the Raspberry Pi CPU, a high-performance Broadcom BCM2711 (RPi 4) application processor.
The Compute Module 4 appears in different versions depending on the size of the DDR4 and eMMC. Compute Module 4 is not included in the product by default. If you want to purchase it with a CM4, please choose one from the drop-down menu.
This industrial computer is heavy-duty – resistant to environmental contaminants like dust and water. It works best with a finger or a stylus with a conductive tip.
Operating System
The Industrial Pi, like other Raspberry Pi® based products, supports the Debian operating system.
We have developed all the needed drivers, so every hardware feature is readily available for any standard development tool. If your project requires an OS that is not on the list, please contact us, and we’ll make a customized version that suits your needs.
| Weight | 200 g |
|---|---|
| Dimensions | 141.2 × 77.6 × 25.8 mm |
| Form-factor | Embedded |
| CPU | ARM Cortex-A72: Raspberry Pi® CM4 (Opsiyonel) |
| Display Size (inch.) | 5.0" |
| Resolution | 1280 x 720 |
| Brightness (NIT) | 400 NIT |
| Touch Screen | Capacitive |
| FLASH | Based on CM4 |
| External storage | TF (microSD) Card Slot |
| WiFi/BT | Depends on the Compute Module 4 selected. |
| ZIGBEE | Not supported. |
| 4G | Not supported. |
| Ethernet | 1x Giga LAN |
| Camera | Supported. Not mounted by default. |
| Audio | 3.5mm Audio Out Connector, Internal 2W Speaker |
| Buzzer | Not supported. |
| USB | 1 x Type-C OTG, 2x USB 2.0 HOST |
| RTC | Yes. High Accuracy RTC with Lithium Button Coin battery (Lithium Battery not included) |
| GPIO | Not supported. |
| RS485 | 2 x RS485 |
| RS232 | 2x RS232 |
| CAN | 1 x CAN-BUS |
| OS | Debian |
| Power Input | 9V~36V DC |
| Power Consumption | 6W |
| Current @ 12V | 500 mA max |
| Working Temperature | 0°C to +60°C |
| Mounting Method | Embedded Mounting |
| Stok Durumu | : | Ön Siparişli Ürün |
| Inch | : | 5.0'' |
| İşlemci | : | ARM – Raspberry Pi |
Kart Tipi Endüstriyel PC EPC-CM4-050
Chipsee Kart Tipi Endüstriyel PC EPC-CM4-050, 5.0 inçlik ekranı, ARM Cortex-A72: Raspberry Pi işlemcisi ve Raspberry Pi işletim sistemi ile endüstriyel otomasyon projeleriniz için ideal bir çözümdür. Yüksek performans, dayanıklılık ve çoklu işletim seçenekleriyle öne çıkan bu endüstriyel panel PC, sizin özel ihtiyaçlarınıza uygun esnek bir çözüm sunar.
