Kart Tipi Endüstriyel PC EPC-A9-070-C

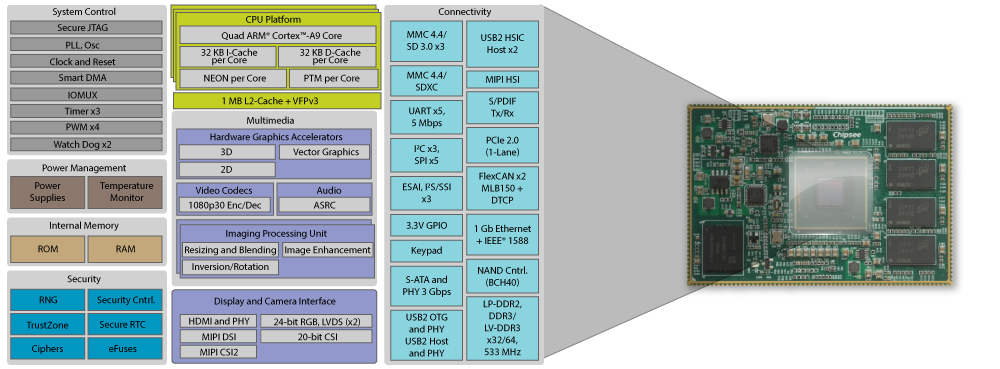

This product features the .iMX 6 series of application processors, the CS-SOM-iMX6Q. The .iMX6Q Quad processor represents the latest achievement in integrated multimedia applications processors. They feature advanced implementation of the quad Arm® Cortex®-A9 core, which operates at speeds up to 1.2 GHz.
The EPC-A9-070-C (PN CS10600F070E) is a high-quality industrial embedded computer, that features a 7-inch LCD with capacitive touchscreen, a quad-core Cortex-A9 processor with 2GB DDR3 RAM and 8GB eMMC Flash, an onboard WiFi and Bluetooth, 1Gb Ethernet, 3 USB 2.0 ports, 1 USB OTG port, 2 CAN ports, 2 RS232/RS485 ports, 1 HDMI port for a secondary monitor, a SATA-II channel for extra storage, as well as a 3.5mm audio connector.
Hardware Features

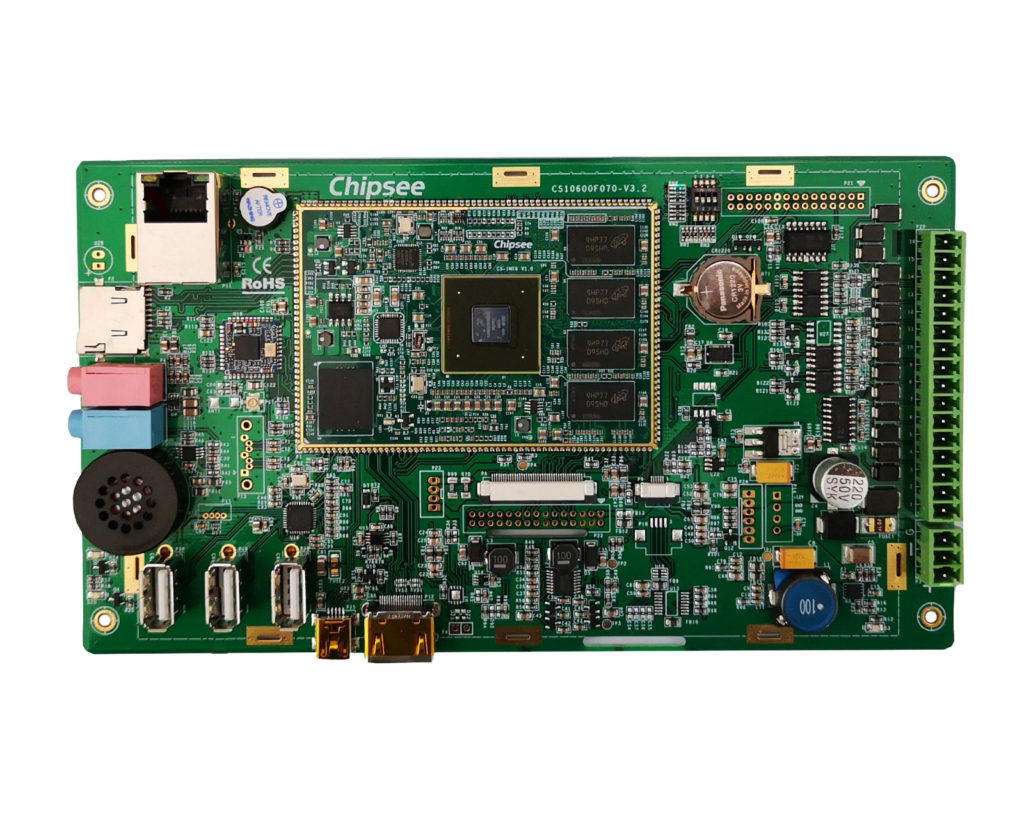

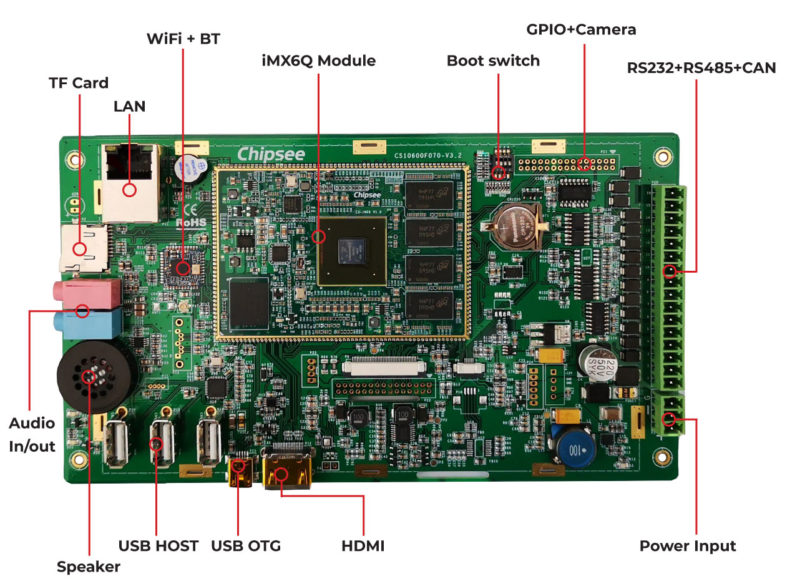

The EPC-A9-070-C has several expansion connectors on the back side – 3 USB 2.0, 1 USB OTG, 1 LAN, 2 CAN, 2 RS485, and 2 RS232. It also features a WiFi and Bluetooth antenna, an HDMI port, and a 3.5mm audio connector.
The CAN, RS485, and RS232 connector is a 16 Pin 3.81mm screw terminal connector (as you can see from the image).
Since this display has 5 UART channels, they can be configured as RS232 or RS485. One UART channel is used by Bluetooth – the default setting is 2x RS232 + 2x RS485 + Bluetooth. Please contact us if you require a different configuration.
The RS232 and the RS485 port speed is up to 115200 Baud.
The EPC-A9-070-C has one channel 1Gb Ethernet port and one HDMI port which can be configured by software. The maximum resolution supported on the
external HDMI monitor is 1920×1080 at 60Hz.
When it comes to audio capabilities, the EPC-A9-070-C has one 3.5mm Output/input connector and a 2W internal speaker.
The EPC-A9-070-C uses a wide range of power input: DC 6~36V. The typical power consumption is 6W.

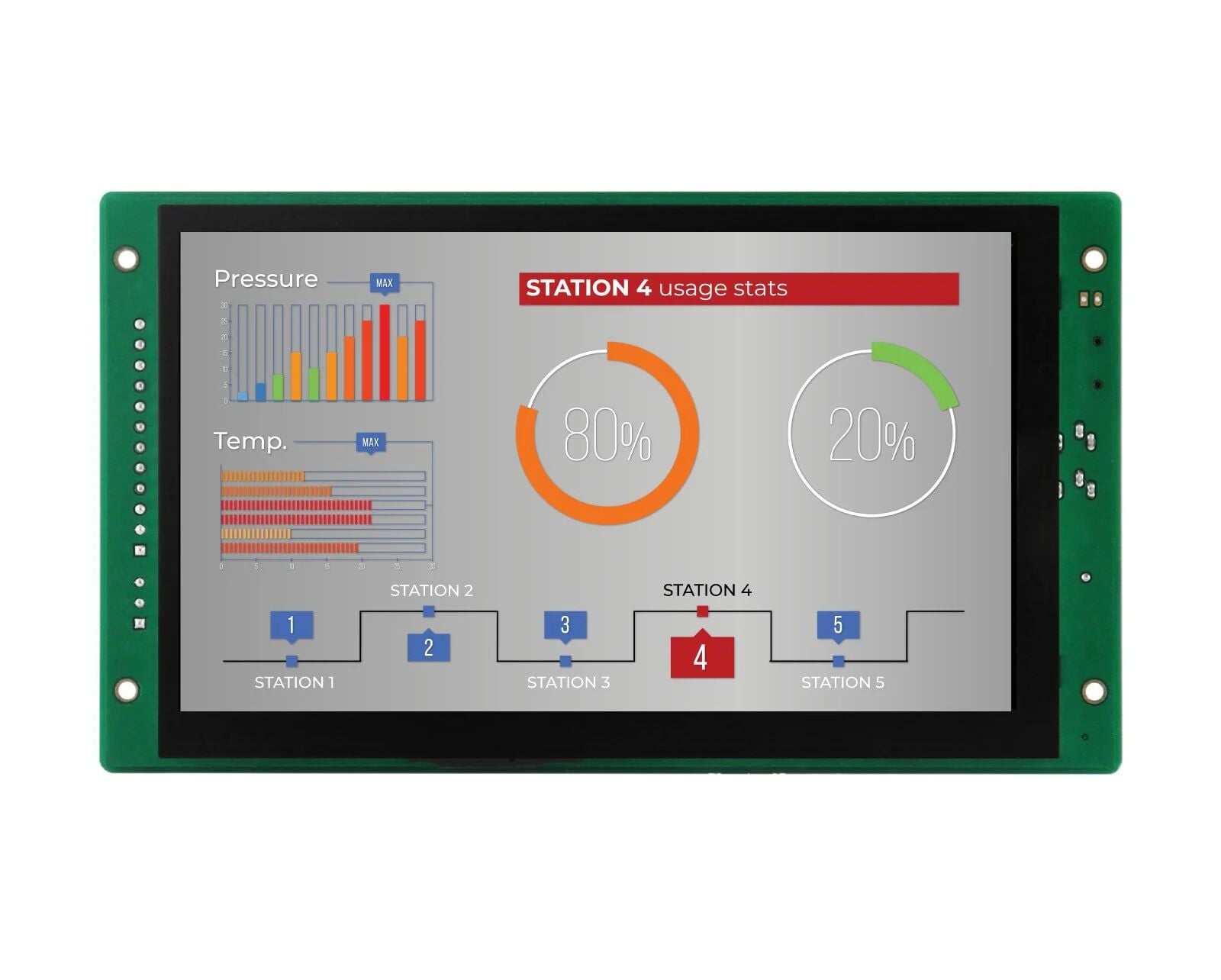

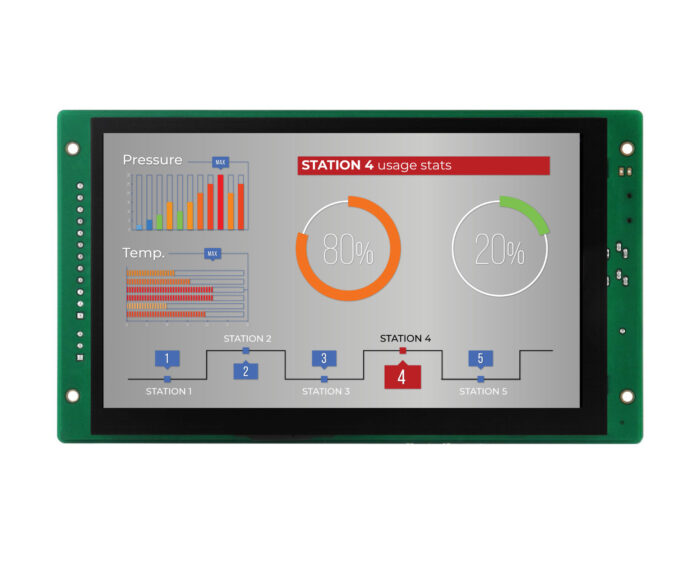

The EPC-A9-070-C features a 7’’ display with a 1024×600 pixel resolution, and a 5-point capacitive touch screen. 5-point capacitive touchscreens offer stable and accurate control over the device, as well as great image clarity.
The screen offers a brightness of 500 nits. Regarding the viewing angle, the screen offers various angles: top, bottom, left, and right view.
Performances and reliability
Multiple OS choices
It supports the following operating systems:
- Chipsee Linux
- Android 4.3
- Android 6.0
- Android 8.0
- Ubuntu 12.04
- Ubuntu 14.04
| Weight | 380 g |
|---|---|
| Dimensions | 290 × 207.8 × 27.7 mm |
| Form-factor | Embedded |
| Display Size (inch.) | 7.0" |
| Resolution | 2024*600 |
| Brightness (NIT) | 500 NIT |
| Touch Screen | Capacitive |
| CPU | ARM Cortex A9: NXP iMX6Q |
| Frequency | 2 GHz |
| RAM | 2GB DDR3 |
| FLASH | 8GB |
| Bluetooth | Onboard Bluetooth |
| WiFi | Onboard WiFi |
| HDMI | 2x HDMI |
| SATA | 2x SATA II |
| Ethernet | 2x LAN 2000M |
| USB | 2x USB 2.0 OTG, 3x USB 2.0 HOST |
| GPIO | 8x GPIO |
| RS485 | 2x RS485 |
| CAN | 2x CAN |
| RS232 | 2x RS232 |
| External storage | TF (microSD) Card Slot |
| Audio | 3.5mm Output/input Connector, Internal Speaker |
| OS | Chipsee Linux Qt |
| Power Input | 6~36V DC |
| Power Consumption | 6W |
| Certification | CE |
| Working Temperature | -20°C ~ 70°C. |
| Buzzer | Yes |
| Mounting Method | Embedded Mounting |
| Stok Durumu | : | Stokta Var |
| Inch | : | 7.0'' |
| İşlemci | : | ARM – NXP, TI |
Kart Tipi Endüstriyel PC EPC-A9-070-C
Chipsee Kart Tipi Endüstriyel PC EPC-A9-070-C, 7.0 inçlik ekranı, güçlü ARM Cortex A9: NXP iMX6Q işlemcisi ve çoklu işletim sistemleri (Android 4.3, Android 6.0, Android 8.0, Linux Qt 5.5, Ubuntu 12.04, Ubuntu 14.04) ile endüstriyel otomasyon projeleriniz için ideal bir çözümdür. Yüksek performans, dayanıklılık ve çoklu işletim seçenekleriyle öne çıkan bu endüstriyel panel PC, sizin özel ihtiyaçlarınıza uygun esnek bir çözüm sunar.
