MINI-M4 For STM32

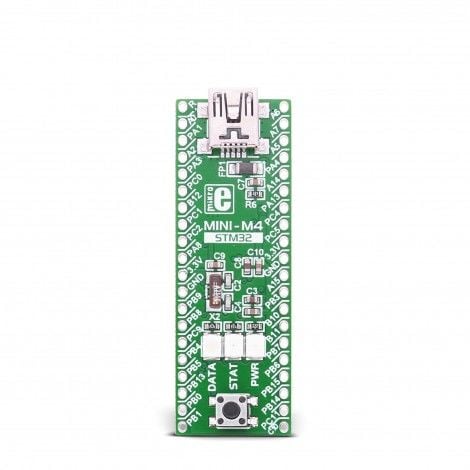

MINI-M4 for STM32 is a small ARM® Cortex™-M4 development board containing STM32F415RG microcontroller.
It is pin compatible with PIC16F887 and PIC18(L)F45K20 microcontrontrollers and it perfectly fits into standard DIP40 socket. Board is equipped with 16MHz SMD crystal oscillator, and 32.768KHz crystal which can be used for internal RTCC module. It has reset button and three signal LEDs.
Board comes preprogrammed with fast USB HID bootloader, so no external programmers are needed for development. It operates on 3.3V power supply. On-board voltage regulator allows the board to be powered directly from USB cable.
Applications
Board can be used as a DIP40 substitute for PIC16 and PIC18 microcontrollers working on 3.3V, thus adding exponentially more power to your target device.
Operating Voltage
Board operates on 3.3V power supply only. Dedicated voltage regulator enables the board to be powered directly from on-board USB connector.
Key Features
- STM32F415RG, ARM 32-bit Cortex™-M4 CPU with FPU, 1MB Flash, 192+4K RAM. 0-wait state execution from Flash memory, frequency up to 168MHz, and DSP instructions
- USB 2.0 On-The-Go support Signal LEDs, Crystal oscillator and Reset Button on board
- Supports CAN communication
Key Benefits
- Pin compatible with PIC16F887 and PIC18(L)F45K20
- Comes preprogrammed with USB bootloader
- Perfectly fits into DIP40 socket
- Fully supported in mikroE ARM compilers
| Type | MINI |
| Architecture | ARM (32-bit) |
| Programming | Bootloader |
| Silicon Vendor | STM |
| Supply Voltage | USB |
| Category | MINI |
