MYC-C335X-V4
MYC-J335X-V4
Measuring only 70mm by 50mm, the MYC-C335X-V4 is a highly-integrated low-cost ARM embedded SOM (System on Module) supporting Texas Instruments (TI) Sitara AM335x (AM3352, AM3354, AM3356, AM3357, AM3358 and AM3359) ARM Cortex-A8 processors, featuring PowerVR™ SGX530 for 2D and 3D graphics acceleration as well as PRU/ICSS supporting real-time protocols such as EtherCAT, PROFINET, EtherNet/IP, PROFIBUS, Ethernet Powerlink, Sercos, and others.
The MYC-C335X-V4 has integrated the AM335x processor, 512MB DDR3 SDRAM, 512MB Nand Flash and Gigabit Ethernet PHY chip on board and can be served as the core of your embedded system. It has two 2.0mm pitch 60-pin male expansion connectors for interconnecting with your base board, thus providing an interface for the base board to carry most of the I/O signals to and from the SOM. One 2.0mm pitch 26-pin interface and one 2.54mm pitch 10-pin interface are also designed with only reserved solder joints which have extended a few signals for some special purpose.

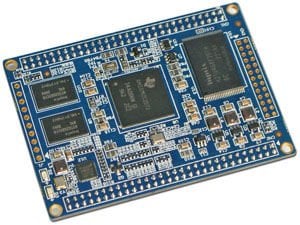

MYC-C335X-V4 Top-Bottom-view
- Up to 1GHz TI AM335x Series ARM Cortex-A8 Processors
- 512MB (2*256MB) DDR3 SDRAM, 512MB Nand Flash
- On-board Gigabit Ethernet PHY
- Two 2.0mm pitch 60-pin Male Expansion Connectors
- Supports for Linux 4.1.18
- Supports -40 to +85 Celsius Extended Temperature Operation
The MYC-C335X-V4 series have six models with different AM335x processors. They are sharing the same pin-out with software fully compatible.

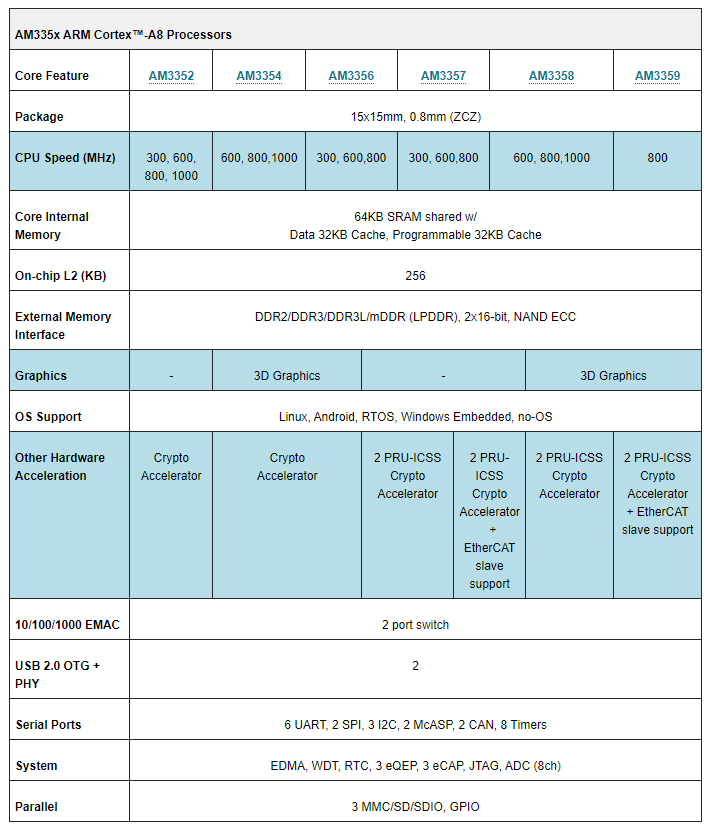

You can get to know the main differences of the six Sitara ARM Cortex-A8 processors from below image.
AM335x Devices Comparison
The MYC-C335X-V4 is the core of the MYD-C335X-V4 development board which is a full-featured evaluation platform for users developing applications with Linux. Many peripheral interfaces such as two serial ports, four USB Host ports, one USB OTG port, dual Gigabit Ethernet ports, one CAN, one RS485, one Micro SD, HDMI, LCD, Touch screen have been carried out by headers and connectors on the base board. It can work in harsh environment supporting -40 to +85 Celsius extended temperature operation and make it ideal for industrial embedded applications such as automotive, control systems, lighting, refining and processing.
http://www.myirtech.com/attached/image/20131224/myd-am335x-mark.jpg
Features
Mechanical Parameters
- Dimensions: 70mm x 50mm
- PCB Layers: 8-layer design
- Power supply: +3.3V/0.8A
- Working temperature: 0~70 Celsius (commercial grade) or -40~85 Celsius (industrial grade)
Processor
- TI AM3352, AM3354, AM3356, AM3357, AM3358, AM3359 (pin-to-pin compatible, 15x15 mm, 0.8-mm ball pitch, ZCZ package)
- 800-MHz ARM Cortex-A8 32-bit RISC MPU (Up to 1GHz)
- NEON™ SIMD Coprocessor
- 32KB/32KB of L1 Instruction/Data Cache with Single-Error Detection (parity)
- 256KB of L2 Cache with Error Correcting Code (ECC)
- SGX530 Graphics Engine
- Programmable Real-Time Unit Subsystem
Memory
- 512MB DDR3 SDRAM
- 512MB Nand Flash
Peripherals and Signals Routed to Pins
- On-board Gigabit Ethernet PHY
- One power indicator (Red LED)
- One user LED (Green)
- Two 2.0mm pitch 60-pin expansion connectors can carry out interfaces below:
-
- 2 x USB2.0 OTG ports
- 6 x Serial ports
- 2 x I2C
- 1 x SPI
- 7 x ADC
- 2 x PWM
- 3 x SDIO
- One 2.0mm pitch 26-pin expansion interface
- One 2.54mm pitch 10-pin expansion interface
OS Support
- Linux 4.1.18
Order Part No Packing List
| Item | Part No. |
|---|---|
| MYC-C335X-V4 (commercial, 512MB DDR3, 512MB Flash) |
MYC-C3352-V4-512N512D-80-C |
| MYC-C3358-V4-512N512D-100-C | |
| MYC-C335X-V4 (industrial, 512MB DDR3, 512MB Flash) |
MYC-C3352-V4-512N512D-80-I |
| MYC-C3358-V4-512N512D-100-I | |
| MYC-C335X-V4 (industrial, 256MB DDR3, 256MB Flash) |
MYC-C3352-V4-256N256D-80-I |
| MYC-C3358-V4-256N256D-100-I | |
| MYD-C335X-V4 Development Board (commercial, 512MB DDR3, 512MB Flash) |
MYD-C3352-V4-512N512D-80-C |
| MYD-C3358-V4-512N512D-100-C | |
| MYD-C335X-V4 Development Board (industrial, 512MB DDR3, 512MB Flash) |
MYD-C3352-V4-512N512D-80-I |
| MYD-C3358-V4-512N512D-100-I | |
| MYD-C335X-V4 Development Board (industrial, 256MB DDR3, 256MB Flash) |
MYD-C3352-V4-256N256D-80-I |
| MYD-C3358-V4-256N256D-100-I | |
| MY-LCD43TP 4.3 inch LCD Module with resistive touch screen |
MY-TFT043RV2 |
| MY-LCD70TP 7 inch LCD Module with resistive touch screen |
MY-TFT070RV2 |
| MY-LCD70TP-C 7 inch LCD Module with capacitive touch screen |
MY-TFT070CV2 |
Hardware Specification
The TI AM335x microprocessors, based on the ARM Cortex-A8, operating at up to 1GHz, are enhanced with image, graphics processing, peripherals and industrial interface options such as EtherCAT and PROFIBUS. The device
supports the following high-level operating systems (HLOSs) that are available free of charge from TI:
- Linux®
- Android™
The AM335x microprocessor contains these subsystems:
- Microprocessor unit (MPU) subsystem based on the ARM Cortex-A8 microprocessor.
- POWERVR SGX™ Graphics Accelerator subsystem for 3D graphics acceleration to support display and gaming effects.
- The Programmable Real-Time Unit and Industrial Communication Subsystem (PRU-ICSS) is separate from the ARM core, allowing independent operation and clocking for greater efficiency and flexibility. The PRU-ICSS enables additional peripheral interfaces and real-time protocols such as EtherCAT, PROFINET, EtherNet/IP, PROFIBUS, Ethernet Powerlink, Sercos, and others.
Software Features
MYIR’s MYC-C335X-V4 supports for Linux and is provided with software packages. Many peripheral drivers are in source code to help accelerate customers’ designs with a stable and reliable hardware and software platform. The software features are summarized as below:
| OS | Item | Features | Description |
|---|---|---|---|
| Linux | Bootstrap program | SPL | The primary bootstrap |
| u-boot | The secondary bootstrap | ||
| Kernel | Version | Linux 4.1.18 | |
| Drivers | USB OTG, USB WiFi, Gigabit Ethernet, MMC/SD/TF, NandFlash, CAN, RS485, Audio, LCD Controller (supports 4.3- and 7-inch LCD), RTC, HDMI, Touch driver, Button, UART, LED | ||
| File system | Buildroot With QT library (V5.6.2) | Provide image file and buildroot in source code | |
| Examples | Audio, CAN, EEPROM, framebuffer, gpio, keypad, led, mtd, network, rtc, RS232, RS485 | ||
