MYC-YG2UL CPU Module
MYC-YG2UL CPU Module
Measuring only 37mm by 39mm, the MYC-YG2UL CPU Module is a high-performance System-on Module (SoM) equipped with Renesas high-performance and cost-effective RZ/G2UL processor, single-core Cortex-A55@1.0GHz + Cortex-M33@200MHz. The processor features dual Gigabit Ethernet, dual CAN-FD, dual USB2.0 and up to seven UARTs and supports camera input and display output, thus making it ideal for applications such as entry-class industrial gateway control and embedded devices with simple GUI capabilities. In addition to the RZ/G2UL MPU, the MYC-YG2UL module has integrated DDR3L, eMMC, EEPROM and power management IC (PMIC) to provides a minimum system for your next embedded design through 1.0 mm pitch 140-pin Castellated-Hole and 50-pin LGA expansion interfaces.

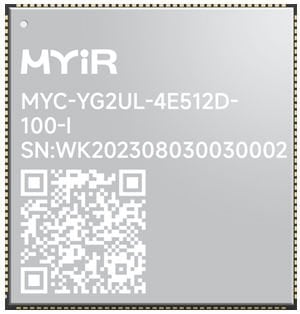

MYC-YG2LX CPU Module (delivered with shielding cover by default)
- RENESAS RZ/G2UL Processor based on 1.0GHz Single-core ARM Cortex-A55 and 200MHz Cortex-M33 Cores
- 512MB DDR3L, 4GB eMMC Flash, 4KB EEPROM
- Power Management IC
- 1.0mm pitch 140-pin Castellated-Hole and 50-pin LGA Expansion Interfaces
- Linux 5.10 OS, supports Yocto Project and OpenWrt 22.03
The MYC-YG2UL CPU Module is capable of running Linux 5.10 and provided with streamlined core-image and full-featured image by Yocto as well as highly modular and highly automated OpenWrt image. MYIR also offers the kernel and driver source codes, Linux gateway demo and compilation tools to enable users to start their development rapidly and easily.
The MYD-YG2UL Development Board is an expansion design based on the MYC-YG2UL CPU Module. It takes full features of the RZ/G2UL processor to carry out a variety of peripheral interfaces including one RS232, one RS485, two Gigabit Ethernet, two USB 2.0 HOST, one USB 2.0 OTG, one CAN, one Micro SD card slot, one M.2 Socket for USB based 4G/5G LTE Module with two SIM card holders and one USB2.0 based WiFi module. The board supports RGB video output, MIPI-CSI camera input and Audio input/output and it has one GPIO/I2C/UART/SPI/CAN extension header which can connect to MYIR’s MY-WIREDCOM RPI Module to further extend extra RS232, RS485 and CAN interfaces. The MY-LCD70TP-C LCD Module and MY-CAM003M MIPI Camera Module are also add-on options for the board to make the MYD-YG2UL a good reference design and starter kit for using Renesas’ RZ/G2UL solutions.
MYD-YG2UL Development Board (Top-view)
MYD-YG2UL Development Board (Bottom-view)
Features
Mechanical Parameters
- Dimensions: 39mm x 37mm
- PCB Layers: 10-layer design
- Power supply: 5V/1A
- Working temperature: -40~85 Celsius (industrial grade)
Processor
- RENESAS RZ/G2UL processor (Type-1)
- 1.0 GHz Single-core ARM Cortex-A55
- 200 MHz ARM Cortex-M33
- 16-bit DDR3L/DDR4-1600 (in line ECC)
- MIPI CSI-2 (4 lanes) Camera Interface
- Parallel Display Interface
- 2 x Gigabit Ethernet
Memory
- 512MB DDR3L
- 4GB eMMC
- 4KB EEPROM
Peripherals and Signals Routed to Pins
- Power Management IC
- 1.0mm pitch 140-pin Castellated-Hole and 50-pin LGA expansion interfaces
- 2 x RGMII
- 2 x USB 2.0
- 5 x SCIF
- 2 x SCI
- 2 x CAN FD
- 4 x I2C
- 3 x SPI
- 2 x ADC
- 1 x RGB
- 1 x MIPI CSI
- 4 x SSI
- Up to 82 GPIOs
OS Support
- Linux 5.10
Order Part No and Packing List
| Item | Part No. | Included |
|---|---|---|
|
MYC-YG2UL CPU Module |
MYC-YG2UL-4E512D-100-I |
- One MYC-YG2UL Module |
|
MYD-YG2UL-4E512D-100-I |
One MYD-YG2UL board |
|
| MY-CAM003M Camera Module |
MY-CAM003M |
MIPI Camera Module |
| MY-WIREDCOM | RPI Mofule for extension of RS232/RS485 | |
| MY-LVDS070C | 7-inch LCD Module with capacitive touch screen |
Hardware Specification
The MYC-YG2UL CPU Module is using the 13 x 13mm, 0.5 mm ball pitch, 361pin BGA package, 1.0 GHz RZ/G2UL (Type-1) MPU which belongs to the RENESAS RZ/G2UL product group and features single-core Arm Cortex-A55 (1.0 GHz) CPU and Single-core Arm Cortex-M33 (200 MHz) CPU. The processor also has many interfaces such as camera input, display output, USB 2.0, and Gbit-Ether, making it ideal for applications such as entry-class industrial gateway control and embedded devices with Simple GUI capabilities.
In addition, there are two types of RZ/G2UL:
- Type-1 supports all functions
- Type-2 supports pin compatibility with RZ/G2LC
- Type-1 Part Number: R9A07G043U11GBG#BC0
- Type-2 Part Number: R9A07G043U12GBG#BC0
For More Information on RZ/G2L, RZ/G2LC and RZ/G2UL, please visit:
Software Features
The MYC-YG2UL CPU Module supports Linux OS and comes with complete software package. The kernel and many peripheral drivers are available in source code to assist clients to expedite their development. The following are a summary of the software features:
| Item | Features | Description | Source Code |
|---|---|---|---|
| Bootloader | trusted-firmware-a | fsbl boot | YES |
| U-boot | secondary boot program based on uboot_2021.10 | YES | |
| Linux kernel | Linux kernel | Customized base on official kernel_5.10.83 version | YES |
| Device driver | PMIC | DA9062-53AM1 driver | YES |
| USB Host | USB Host driver | YES | |
| USB OTG | USB OTG driver | YES | |
| I2C | I2C driver | YES | |
| SPI | SPI driver | YES | |
| Ethernet | YT8531SH driver | YES | |
| SDHI | eMMC/SD driver | YES | |
| RGB | RGB display driver | YES | |
| Audio | SGTL5000 audio driver | YES | |
| 4G/5G | 4G/5G module driver | YES | |
| PWM | PWM driver | YES | |
| ADC | ADC driver | YES | |
| RTC | RTC driver | YES | |
| GPIO | GPIO driver | YES | |
| UART | RS485/RS232/TTL driver | YES | |
| CAN | CAN driver | YES | |
| Camera (MIPI) | OV5640 camera driver | YES | |
| WiFi | FG6131EUXX-00 driver | YES | |
| File System | myir-image-core | image without GUI interface built with Yocto | YES |
| myir-image-full | full-featured image built with Yocto | YES | |
| myir-image-OpenWrt | Image built with OpenWrt | YES |
