MYD-C7Z010/20-V2 Development Board
MYD-C7Z010/20-V2 Development Board

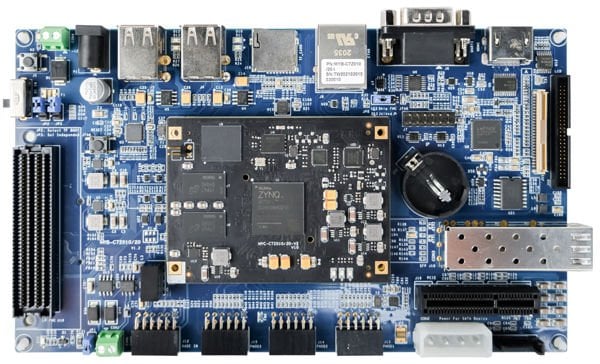

The MYD-C7Z010/20-V2 development board is built around the MYC-C7Z010/20-V2 CPU Module which is a compact Linux-ready ZYNQ-based SOM (System on Module). The MYC-C7Z010/20-V2 combines the Xilinx Zynq-7010 or Zynq-7020 SoC device, 1GB DDR3 SDRAM, 4GB eMMC, 32MB quad SPI Flash, a Gigabit Ethernet PHY, a USB PHY and external watchdog. It is connected to the MYD-C7Z010/20 base board through two 0.8mm pitch 140-pin board-to-board connectors.
The MYD-C7Z010/20-V2 development board takes full features of the Zynq-7010 and Zynq-7020 SoCs’ powerful dual-core ARM Cortex-A9 processing system and Xilinx 7-series Field Programmable Gate Array (FPGA) logic unit to create a rich set of peripherals to the base board through headers and connectors including one RS232 serial port, four USB Host ports, one Gigabit Ethernet port, CAN, HDMI, LCD/Touch screen, TF card slot, RTC, one XADC header to allow you take advantage of Xilinx XADC; it has three PMoD headers to meet your I/O needs with PMoDs (only for 7020); it also has a low-pin count FMC connector to allow various FMC cards for custom I/O options. User can integrate a MYC-C7Z010-V2 or a MYC-C7Z020-V2 SOM on the same base board, thus making two variants of Zynq evaluation boards.
MYC-C7Z010/20-V2 CPU Module
- MYC-C7Z010/20-V2 CPU Module as Controller Board
- Xilinx XC7Z010/20 Dual-core ARM Cortex-A9 Processor with Xilinx 7-series FPGA logic
- 1GB DDR3 SDRAM (2 x 512MB, 32-bit)
- 4GB eMMC, 32MB QSPI Flash
- 4 x USB2.0 Host, Gigabit Ethernet, CAN, HDMI, LCD, TF
- 1 x XADC, 3 x PMoD, 1 x FMC
- Optional 4.3 or 7 inch LCD/TSP
- Ready-to-Run Linux 5.4.0
The MYD-C7Z010/20-V2 development board is delivered with necessary cable accessories and MYIR offers optional 4.3-inch and 7-inch LCD Module. The board is preloaded with Linux. It is a high-performance and low-cost development platform for evaluation and prototype based on Xilinx Zynq-7000 All Programmable SoC family.
MYD-C7Z010/20-V2 Development Board
Features
Mechanical Parameters
- Dimensions: 190mm x 110mm (base board), 75mm x 55mm (CPU Module)
- PCB layers: 4-layer design (base board), 10-layer design (CPU Module)
- Power supply: 12V/0.5A (base board), 5V/0.5A (CPU Module)
- Working temp.: 0~70 Celsius or -40~85 Celsius (industrial grade)
SoC
- Xilinx XC7Z010-1CLG400 (Zynq-7010) or XC7Z020-1CLG400/XC7Z020-2CLG400 (Zynq-7020)
- 667MHz ARM® dual-core Cortex™-A9 MPCore processor (up to 866MHz)
- Integrated Artix-7 class FPGA subsystem with:
- 28K logic cells, 17,600 LUTs, 80 DSP slices (for XC7Z010)
- 85K logic cells, 53,200 LUTs, 220 DSP slices (for XC7Z020)
- NEON™ & Single / Double Precision Floating Point for each processor
- Supports a Variety of Static and Dynamic Memory Interfaces
Memory
- 1GB DDR3
- 4GB eMMC
- 32MB QSPI Flash (16MB is optional)
Peripherals and Signals Routed to Pins
- 10/100/1000M Ethernet PHY (YT8531SH)
- External watchdog
- Three LEDs
- One blue LED for power indicator
- One red LED for FPGA program done indicator
- One green user LED
- Two 0.8mm pitch 140-pin board-to-board expansion connectors bring out below signals:
- One Gigabit Ethernet
- One USB OTG 2.0
- Two Serial ports
- Two I2C
- Two CAN BUS
- Two SPI
- ADC (one independent differential ADC, 16-channel ADC brought out through PL pins)
- One SDIO
OS Support
- Linux 5.4.0
The MYD-C7Z010/20-V2 Base Board (MYB-C7Z010/20)
PS Unit
- Four USB 2.0 Host ports (through USB Hub)
- One RS232 (DB9 port)
- One TF card slot (bootable)
- One CAN interface
- One 10/100/1000M Ethernet
- One 2.54mm pitch 14-pin JTAG interface (PS, PL reused)
- Battery backed RTC
- One User Button (One I2C, can be connected to LCD and Resistive Touch Screen)
- Jumpers
- One for booting selection from TF card or QSPI
- One for JTAG selection for using PS and PL reused or independent JTAG configured through PL pins
- One for selection if adding FMC module to JTAG
PL Unit
- One XADC interface
- One Xilinx standard LPFMC interface
- One HDMI interface (16-bit YCrCb, support 1080p display, do not support audio)
- LCD/Touch screen interface (16-bit RGB, signals reused with HDMI, supports resistive and capacitive touch screen)
- Two LEDs (one for FMC module detection, one for power indicator)
- Three-channel PMoD (only for XC7Z020)
Order Part No and Packing List
| Item | Part No. | Included |
|---|---|---|
|
MYD-C7Z010-V2 |
MYD-C7Z010-V2-4E1D-667-C |
- One MYD-C7Z010-V2 board |
|
MYD-C7Z010-V2-4E1D-667-I |
||
|
MYD-C7Z020-V2 |
MYD-C7Z020-V2-4E1D-766-C |
- One MYD-C7Z020-V2 board |
|
MYD-C7Z020-V2-4E1D-766-I |
||
|
MYC-C7Z010-V2-4E1D-667-C |
- One MYC-C7Z010-V2 Module |
|
|
MYC-C7Z010-V2-4E1D-667-I |
- One MYC-C7Z010-V2 Module |
|
|
MYC-C7Z020-V2-4E1D-766-C |
- One MYC-C7Z020-V2 Module |
|
|
MYC-C7Z020-V2-4E1D-766-I |
- One MYC-C7Z020-V2 Module |
Hardware Specification
The Zynq™-7000 family of devices combines the software programmability of a Processor with the hardware programmability of an FPGA, resulting in unrivaled levels of system performance, flexibility, scalability while providing system benefits in terms of power reduction, lower cost with fast time to market. Unlike traditional SoC processing solutions, the flexible programmable logic of the Zynq-7000 devices enables optimization and differentiation, allowing designers to add peripherals and accelerators to adapt to a broad base of applications.
The Zynq-7000 AP SoC leverages the 28nm scalable optimized programmable logic used in Xilinx’s 7 series FPGAs. Each device is designed to meet unique requirements across many use cases and applications. The Z-7010, Z-7015, and Z-7020 leverage the Artix®-7 FPGA programmable logic and offer lower power and lower cost for high-volume applications. The Z-7030, Z-7035, Z-7045, and Z-7100 are based on the Kintex®-7 FPGA programmable logic for higher-end applications that require higher performance and high I/O throughput.
Software Features
The MYD-C7Z010/20-V2 development board is preloaded with Linux 5.4.0. MYIR provides software package in product disk along with the goods delivery. The software package features as below:
| Item | Features | Description | Remark |
|---|---|---|---|
| Cross compiler | gcc 9.2.0 | arm-xilinx-linux-gnueabi-gcc (GCC) 9.2.0 | |
| Boot program | BOOT.BIN | First boot program including FSBL, bitstream | Source code provided |
| u-boot | Secondary boot program | Source code provided | |
| Linux Kernel | Linux 5.4.0 | Customized kernel for MYD-C7Z010/20-V2 | Source code provided |
| Drivers | USB Host | USB Host driver | Source code provided |
| USB Host | USB Host driver | Source code provided | |
| Ethernet | Gigabit Ethernet driver | Source code provided | |
| MMC/SD/TF | MMC/SD/TF card driver | Source code provided | |
| CAN | CAN driver | Source code provided | |
| LCD Controller | XYLON LCD driver | Source code provided | |
| HDMI | HDMI (SII902X chip) driver | Source code provided | |
| Button | Button driver | Source code provided | |
| UART | UART driver | Source code provided | |
| LED | LED driver | Source code provided | |
| GPIO | GPIO driver | Source code provided | |
| QSPI | QSPI Flash S25FL256S driver | Source code provided | |
| RTC | DS3231 RTC driver | Source code provided | |
| Resistive Touch | TSC2007 resistive touch screen driver | Source code provided | |
| Capacitive Touch | FT5X0X capacitive touch screen driver | Source code provided | |
| ADC | ADC driver | Source code provided | |
| File System | Ramdisk | Ramdisk system image | |
| RootFS | Tar file |
Downloads
| Xilinx Zynq-7000 Overview | Download |
|---|---|
| MYC-C7Z010/20-V2 CPU Module Overview | Download |
| MYC-C7Z010/20-V2 Expansion Connectors Pin-out description | Download |
| Track length of MYC-C7Z010/20-V2 CPU Module | Download |
| MYD-C7Z010/20-V2 Development Board Overview | Download |
| 3D STEP file of MYC-C7Z010/20-V2 CPU Module | Download |
