MYD-JX8MPQ Development Board
MYD-JX8MPQ Development Board
The MYD-JX8MPQ Development Board consists of a high-performance CPU Module MYC-JX8MPQ and a base board to provide a complete evaluation platform for NXP’s i.MX 8M Plus application processors which features quad Arm Cortex-A53 cores running at up to 1.8 GHz and an 800 MHz Cortex-M7 real-time co-processor, with an integrated Neural Processing Unit (NPU) operating at up to 2.3 TOPS, 800 MHz audio DSP, 1080p VPU, dual ISPs and 3D/2D GPU to focus on machine learning and vision, Artificial Intelligence (AI), advanced multimedia and industrial automation fields.
The MYC-JX8MPQ CPU Module integrates a NXP i.MX 8M Plus processor, LPDDR4, eMMC, QSPI Flash and PMIC. It is mounted on the MYD-JX8MPQ base board through one 0.5mm pitch 314-pin MXM 3.0 gold-finger-edge-card connector. The base board adopts double-sided layout and has extended various peripherals and signals to provide two Gigabit Ethernet, one USB3.0 HOST, one USB3.0 OTG, two CAN, Micro SD, LVDS/MIPI-DSI, HDMI, two MIPI-CSI, AUDIO, etc. It can support MYIR’s MY-WF005S WIFI/Bluetooth module through one 10-pin extension header. 5G module and PCIe SSD can also be supported through the M.2 sockets on the board. The board has full version and lite version. The lite version (-L) doesn’t support CAN and PCIe SSD.
MYC-JX8MPQ CPU Module
- MYC-JX8MPQ CPU Module as Controller Board
- NXP i.MX 8M Plus Quad Application Processor based on 1.6 GHz Arm Cortex-A53 and 800MHz Cortex-M7 Cores
- Neural Processing Unit (NPU) operating at up to 2.3 TOPS
- 2GB/3GB/4GB LPDDR4, 8GB eMMC Flash, 32MB QSPI flash
- USB 3.0 Host, OTG, Dual Gigabit Ethernet, MIPI-CSI, MIPI-DSI, LVDS, HDMI, Audio, Micro SD…
- Extension Interfaces for WiFi/Bluetooth and UART/I2C/SPI/GPIO
- M.2 Sockets for 5G LTE Module and PCIe SSD and Dual CAN (Lite version doesn't support)
- Supports Working Temperature Ranging from -40°C to 85°C
- Supports Running Linux L5.10.9
The MYD-JX8MPQ development board is ready to run Linux OS and provided with Linux software package, documentations and delivered with necessary cable accessories for customer to easily start development as soon as getting it out-of-box. It would be a powerful and solid reference design for your development.

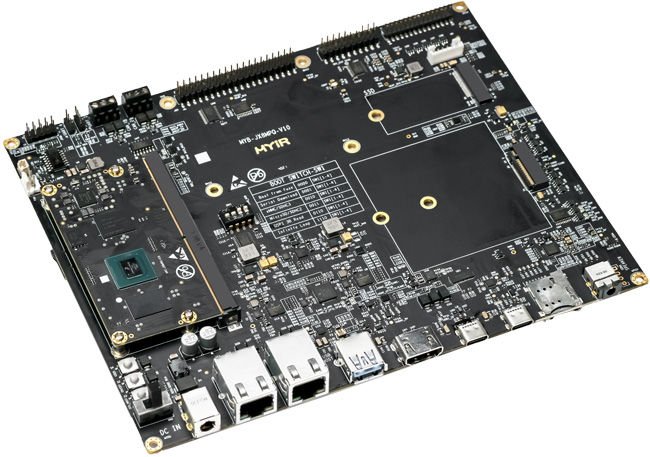

MYD-JX8MPQ Development Board Top-view (delivered with installed heatsink by default）
MYD-JX8MPQ Development Board Bottom-view
Features
Mechanical Parameters
- Dimensions: 200mm x 160mm (base board), 82mm x 45mm (CPU Module)
- PCB Layers: 6-layer design (base board), 8-layer design (CPU Module)
- Power supply: +12V/2A (base board), 5V/1.1A (max, CPU Module)
- Working temperature: 0~70 Celsius (commercial grade) or -40~85 Celsius (industrial grade)
Processor
- NXP i.MX 8M Plus Quad Processor
- 1.6 GHz Quad-core ARM Cortex-A53 CPU (MIMX8ML8CVNKZAB, industrial grade)
- 800MHz Real-time ARM Cortex-M7 co-processor
- Integrated 2.3 TOPS Neural Processing Unit (NPU)
- Integrated 2D/3D GPU and 1080p VPU
Memory
- 2GB/3GB/4GB LPDDR4 (supports up to 6GB)
- 8GB eMMC Flash (supports up to 128GB)
- 32MB QSPI Flash
Peripherals and Signals Routed to Pins
- Power Management IC
- 0.5mm pitch 314-pin MXM 3.0 Gold-finger-edge-card Connector
- 2 x 10/100/1000Mbps Ethernet
- 1 x MIPI DSI
- 2 x MIPI CSI
- 4 x UART
- 2 x USB 3.0
- 6 x I2C
- 3 x SPI
- 2 x LVDS
- 1 x HDMI
- 1 x HiFi4 Audio DSP
- 1 x PCIE3.0
- 2 x CAN
- 2 x uSDHC (uSDHC1: 8bit width, uSDHC2: 4bit width)
OS Support
- Linux L5.10.9
The MYD-JX8MPQ Development Board Base Board
MYD-JX8MPQ Development Board Base Board (MYB-JX8MPQ)
- Serial ports
- Debug serial port (USB Type-C)
- 1 x TTL serial port (UART4)
- USB
- 1 x USB 3.0 Host port (Type-A)
- 1 x USB 3.0 OTG port (DRP, Type-C)
- 1 x SIM card slot
- 2 x 10/100/1000 Mbps Ethernet interfaces (RJ45)
- 2 x CAN (3-pin phoenix terminal, -L lite version doesn't support)
- 1 x Micro SD card slot
- 2 x MIPI-CSI Camera interfaces (J15 & J16, 24-pin 0.5mm pitch FPC connectors)
- 1 x MIPI-DSI Display Interface (J17, 30-pin 0.5mm pitch FPC connector)
- 1 x Single-channel LVDS Display interface (J18 & J19, 40-pin 0.5mm pitch FPC connector)
- 1 x Dual-channel LVDS Display interface (J20, 30-pin 2.0mm pitch header connector)
- 1 x HDMI (supports 4K resolution)
- 1 x 3.5mm Headphone/Mic Jack
- 1 x RTC Battery Connector (JP2, 1.25mm pitch 2-pin male header)
- 3 x Buttons (one for RESET, one for ON/OFF and one for USER)
- 1 x 2.54mm 2 x 20-pin male expansion header (GPIO/SPI/UART/I2C/SAI, compatible with Raspberry PI standard 40-pin extension interface)
- 1 x 2.54mm 2 x 10-pin male header (supports MYIR MY-WF005S WIFI/Bluetooth module)
- 2 x M.2 sockets (one for PCIe SSD and another for 5G module, -L lite version doesn't support)
Order Part No and Packing List
| Item | Part No. | Included |
|---|---|---|
| MYD-JX8MPQ Development Board | MYD-JX8MPQ-8E3D-160-C |
- One MYD-JX8MPQ board |
| MYD-JX8MPQ-8E2D-160-I | ||
| MYD-JX8MPQ-8E4D-160-I | ||
| MYD-JX8MPQ-8E3D-160-C-L | ||
| MYC-JX8MPQ CPU Module | MYC-JX8MPQ-8E3D-160-C |
One MYC-JX8MPQ CPU Module |
| MYC-JX8MPQ-8E2D-160-I | ||
| MYC-JX8MPQ-8E4D-160-I | ||
| MY-WF005S WiFi/BT Module | MY-WF005S | WiFi/Bluetooth Module |
| MY-LVDS070C LCD Module | MY-LVDS070C | 7-inch LCD Module with capacitive touch screen |
| MY-CAM003M Camera Module | MY-CAM003M | MIPI Camera Module |
Hardware Specification
The MYC-JX8MPQCPU Module is using NXP’s 15 x 15 mm, 0.5 mm pitch, FCBGA bare die package i.MX 8M Plus Quad Application Processor (MIMX8ML8CVNKZAB) which is among the i.MX 8M Plus family and features as in below tables.
| Family | Part Number | Configuration | Temperature |
|---|---|---|---|
| i.MX 8M Plus Quad | MIMX8ML8DVNLZAB | 4x A53 (1.8GHz), VPU, NPU, ISP | 0°C - +95°C |
| i.MX 8M Plus Quad | MIMX8ML6DVNLZAB | 4x A53 (1.8GHz), VPU, ISP | 0°C - +95°C |
| i.MX 8M Plus Quad Lite | MIMX8ML4DVNLZAB | 4x A53 (1.8GHz) | 0°C - +95°C |
| i.MX 8M Plus Dual | MIMX8ML3DVNLZAB | 2x A53 (1.8GHz), VPU, NPU, ISP | 0°C - +95°C |
| i.MX 8M Plus Quad | MIMX8ML8CVNKZAB | 4x A53 (1.6GHz), VPU, NPU, ISP, CAN-FD | -40°C - +105°C |
| i.MX 8M Plus Quad | MIMX8ML6CVNKZAB | 4x A53 (1.6GHz), VPU, ISP, CAN-FD | -40°C - +105°C |
| i.MX 8M Plus Quad Lite | MIMX8ML4CVNKZAB | 4x A53 (1.6GHz), CAN-FD | -40°C - +105°C |
| i.MX 8M Plus Dual | MIMX8ML3CVNKZAB | 2x A53 (1.6GHz), VPU, NPU, ISP, CAN-FD | -40°C - +105°C |
i.MX 8M Plus Family Application Processors
- ARM Cortex-A53, frequency up to 1.8GHz; 800MHz ARM Cortex-M7
- 16/32-bit DRAM interface, support LPDDR4-4000, DDR4-3200, DDR3L-1600
- x1, 8-bit NAND Flash
- x2, eMMC 5.1 Flash
- x3, SPI NOR FLASH
- x1, PCIe Gen3
- x2 USB 3.0 Type C controllers with integrated PHY (also supported USB 2.0) interfaces
- x3 uSDHC interface with eMMC 5.1 compliance
- x2 Gigabit Ethernet controller
- x4 UART, x6 I2C, x3 SPI
Video Processing Unit
- 1080p60 HEVC/H.265 Main, Main 10 (up to level 5.1)
- 1080p60 VP9 Profile0,2
- 1080p60 AVC/H.264 Baseline, Main, High decoder
- 1080p60 AVC/H.264 encoder
- 1080p60 HEVC/H.265 encoder
Graphic Processing Unit
- GC7000UL with OpenCL and Vulkan support
- 166 million triangles/sec
- Supports OpenGL ES 1.1, 2.0, 3.0, OpenCL 1.2, Vulkan
- GC520L for 2D acceleration
LCDIF Display Controller
- Supports up to 1080p60 display per LCDIF if no more than 2 instances used simultaneously
- Supports 1x 1080p60 + 2x 720p60 if all 3 instances used simultaneously
- One LCDIF drives MIPI DSI
- One LCDIF drives LVDS Tx
- One LCDIF drives HDMI Tx
MIPI Interface
- 4-lane MIPI DSI interface
- Two instances of 4-lane MIPI CSI interface and HDR ISP
Audio
- HiFi4 Audio DSP, SPDIF input and output，x6 SAI
FCBGA, 0.5mm pitch, 15x15mm
Software Features
MYIR's MYD-JX8MPQ development board is ready to run Linux which is provided with software package. Many peripheral drivers are in source code to help accelerate customer’s designs. The software package provided is characterized as following:
| Item | Features | Description | Source Code Provided |
|---|---|---|---|
| Bootstrap program | U-boot | The primary bootstrap based on U-boot 2020.04 | YES |
| Linux kernel | Image | Based on Linux L5.10.9 | YES |
| Drivers | PMIC | pca9450 PMIC driver | YES |
| USB Host | USB Host driver | YES | |
| USB OTG | USB OTG driver | YES | |
| I2C | I2C Bus driver | YES | |
| SPI | SPI Bus driver | YES | |
| Ethernet | 10/100/100M Ethernet driver | YES | |
| MMC | MMC/eMMC/TF card driver | YES | |
| PWM | PWM driver | YES | |
| RTC | RTC driver | YES | |
| IO | GPIO driver | YES | |
| Touch | Capacitive touch screen driver | YES | |
| Audio | WM8960 driver | YES | |
| Camera | OV5640 driver | YES | |
| WIFI/BT | AP6212 driver | YES | |
| Watchdog | Watchdog driver | YES | |
| 5G LTE MODULE | EC20/RM500-Q | YES | |
| M.2 | NVME driver | YES | |
| File system | Yocto rootfs | Yocto 3.2.1 include QT5.15.0, armnn, tensorflow-lite | YES |
| Application Programs | GPIO KEY | Key example | YES |
| NET | TCP/IP socket C/S example | YES | |
| RTC | RTC example | YES | |
| UART | UART example | YES | |
| Audio | Audio example | YES | |
| Camera | Camera display example | YES | |
| Compiler Tool Chain | Cross compiler | Yocto GCC 7.5.0 | BINARY |
Linux Software Features
Downloads
| MYC-JX8MPQ CPU Module Overview | Download |
|---|---|
| i.MX 8M Plus Applications Processor Datasheet for Industrial Products | Download |
| i.MX 8M Plus Applications Processor Datasheet for Consumer Products | Download |
| MYD-JX8MPQ Development Board Overview | Download |
| CE Certification of MYC-JX8MPQ CPU Module | Download |
| 3D STEP file of MYC-JX8MPQ CPU Module | Download |
