MYD-Y6ULX-V2 Development Board

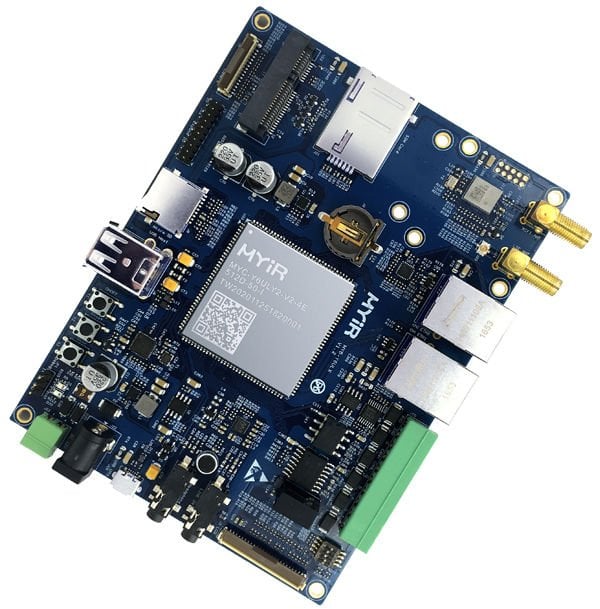

The MYD-Y6ULX-V2 development board employs the MYC-Y6ULX-V2 CPU Module as the System on Module (SoM) controller board by populating the CPU Module on its base board through 1.0mm pitch 140-pin stamp hole interface. The MYC-Y6ULX-V2 CPU Module is mounted with a shield cover and integrated with core components including i.MX 6UL / i.MX 6ULL Cortex-A7 processor, 256MB DDR3, 256MB Nand Flash or optional 4GB eMMC and Ethernet PHY. The base board has extended rich peripherals through connectors and headers like Serial ports, USB, Ethernet, CAN, Micro SD card, WiFi module, LCD/Touch screen, Camera, Audio as well as an optional Mini PCIe interface for USB based 4G LTE module. It is a versatile platform and solid reference design delivered with necessary cable accessories as well as detailed documentations ideal for prototype and evaluation based on i.MX 6UL / 6ULL solutions.

MYIR offers various models of MYD-Y6ULX-V2 development boards with mainly different features as shown in below table. User can select model according to their own requirement.

Features

The MYD-Y6ULX-V2 Base Board

MYB-Y6ULX Base Board

• Serial ports:
  • 1 x Debug serial port (TTL)
  • 1 x RS485 serial port (with isolation)
  • 1 x 3-wire RS232 serial port (with isolation)
• USB:
  • 2 x USB2.0 Host ports
  • 1 x Micro USB2.0 OTG port
• Mini PCIe interface (for optional USB based 4G LTE module)
• SIM card socket
• SDIO based WiFi module
• External antenna interfaces (one for WiFi module and one for 4G LTE module)
• 2 x 10/100 Mbps Ethernet interfaces
• Camera interface
• CAN interface (with isolation)
• Micro SD card slot
• LCD interface (16-bit true color, supports optional 4.3-inch and 7-inch TFT LCD)
• Battery backed RTC
• Audio input/output port (3.5mm jack)
• 3 x Buttons (1 x Reset button, 1 x User button, 1 x ON/OFF button)
• 2 x LEDs (1 x power indicator LED, 1 x user-defined LED)
• 1 x 2.0mm 20-pin male expansion connector
  • 1 x SPI
  • 1 x I2C
  • 2 x UART
  • 10 x GPIO

Hardware Specification

The MYC-Y6ULX-V2 CPU Module is using the 14 x 14mm, 0.8 mm ball pitch, 289 MAPBGA package 528 MHz i.MX 6UltraLite / i.MX 6ULL ARM Cortex-A7 application processor which provides multiple compatible options of G0, G1, G2, G3, Y0, Y1 and Y2 sub family. The MCIMX6G2CVM05A and MCIMX6Y2DVM05A are optional as the default part with the board.

Expanding the i.MX 6 series, the i.MX 6UltraLite is a high performance, ultra-efficient processor family featuring an advanced implementation of a single ARM® Cortex®-A7 core, which operates at speed up to 696 MHz. The i.MX 6UltraLite applications processor includes an integrated power management module that reduces the complexity of external power supply and simplifies power sequencing. Each processor in this family provides various memory interfaces, including 16-bit LPDDR2, DDR3, DDR3L, raw and managed NAND flash, NOR flash, eMMC, Quad SPI and a wide range of other interfaces for connecting peripherals such as WLAN, Bluetooth™, GPS, displays and camera sensors.

The i.MX 6ULL is a power efficient and cost optimized application processor family featuring an advanced implementation of a single ARM Cortex-A7 core, which operates at speeds up to 900 MHz. The i.MX 6ULL applications processor includes an integrated power management module that reduces the complexity of an external power supply and simplifies power sequencing. Each processor in this family provides various memory interfaces, including 16-bit LPDDR2, DDR3, DDR3L, raw and managed NAND flash, NOR flash, eMMC, Quad SPI and a wide range of other interfaces for connecting peripherals such as WLAN, Bluetooth®, GPS, displays and camera sensors.
