MYD-Y7Z010/20-V2 Development Board

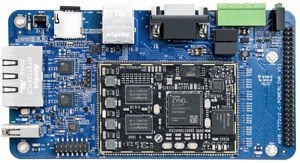

The MYD-Y7Z010/20-V2 development board employs the MYC-Y7Z010/20-V2 as the controller board by populating the CPU Module on its base board through 1.27mm pitch 180-pin stamp-hole (Castellated-Hole) interface, allowing users to take the advantages of numerous extended out signals. Core components on CPU Module including Z-7010 or Z-7020 processor, 512MB DDR3 SDRAM, 4GB eMMC, 16MB QSPI Flash, Gigabit Ethernet PHY and external watchdog. Additionally, the MYD-Y7Z010/20-V2 development board takes full features of the Zynq SoC to create a rich set of peripherals to the base board through headers and connectors including RS232, RS485, USB Host, three Gigabit Ethernet ports, CAN, TF card slot, JTAG as well as one 2.54mm pitch 2 x 25-pin expansion header to let more GPIOs available for further extension.

Features

Hardware Specification

The Zynq®-7000 All Programmable SoC (AP SoC) family integrates the software programmability of an ARM®- based processor with the hardware programmability of an FPGA, enabling key analytics and hardware acceleration while integrating CPU, DSP, ASSP, and mixed signal functionality on a single device. Consisting of single-core Zynq-7000S and dual-core Zynq-7000 devices, the Zynq-7000 family is the best price to performanceper-watt, fully scalable SoC platform for your unique application requirements.

Zynq-7000S

Zynq-7000S devices feature a single-core ARM Cortex™-A9 processor mated with 28nm Artix®-7 based programmable logic, representing the lowest cost entry point to the scalable Zynq-7000 platform. It includes Zynq Z-7007S, Z-7012S and Z-7014S which target smaller embedded designs. Available with 6.25Gb/s transceivers and outfitted with commonly used hardened peripherals, the Zynq-7000S delivers cost-optimized system integration ideal for industrial IoT applications such as motor control and embedded vision.

Zynq-7000

Zynq-7000 devices are equipped with dual-core ARM Cortex-A9 processors integrated with 28nm Artix-7 or Kintex®-7 based programmable logic for excellent performance-per-watt and maximum design flexibility. With up to 6.6M logic cells and offered with transceivers ranging from 6.25Gb/s to 12.5Gb/s, Zynq-7000 devices enable highly differentiated designs for a wide range of embedded applications including multi-camera drivers assistance systems and 4K2K Ultra-HDTV.
