MYD-YG2LX Development Board
MYD-YG2LX Development Board
The MYD-YG2LX Development Board consists of a compact CPU Module MYC-YG2LX and a base board to provide a complete evaluation platform for RENESAS RZ/G2L Processors which features dual-core Arm Cortex-A55 operating at up to 1.2GHz, an embedded Cortex-M33 core operating at up to 200MHz, ARM Mali-G31 based 3D Graphics and Video CODEC Engine. Typical applications are industrial HMI, medical, industrial automation, power, display and control terminal and other scenarios which require rich performance and low power.
The MYC-YG2LX CPU Module is populated on the MYD-YG2LX base board through 164-pin stamp-hole (Castellated-Hole) and 58-pin LGA expansion interfaces. It is a highly-integrated SoM which combines the RZ/G2L processor, 1GB/2GB DDR4, 8GB eMMC, 32KB EEPROM and a PMIC chip. The base board has brought out rich peripherals through connectors and headers such as four Serial ports, two Gigabit Ethernet, two USB 2.0 HOST and one USB 2.0 OTG, one Micro SD card slot, one M.2 Socket for USB based 4G/5G LTE Module with two SIM card holders, one USB2.0 based WiFi module, one GPIO/I2C/UART/SPI/CAN extension header, Audio input/output, MIPI-CSI camera interface as well as HDMI, LVDS and RGB video output interfaces.
MYC-YG2LX CPU Module
- MYC-YG2LX CPU Module as Controller Board
- RENESAS RZ/G2L Processor based on 1.2GHz Dual ARM Cortex-A55 and 200MHz Cortex-M33 Cores
- 1GB/2GB DDR4, 8GB eMMC Flash, 32KB EEPROM
- UARTs, 2 x USB 2.0 HOST, 1 x USB 2.0 OTG, 2 x Gigabit Ethernet, WiFi, 4G/5G LTE, Micro SD card Slot
- Camera Interface (MIPI-CSI), HDMI, LVDS, RGB, Audio
- Supports Running Linux 5.10 OS
- Optional 7-inch LCD Modules, Camera Module and RPI Module
The MYD-YG2LX Development Boardis delivered with one Quick Start Guide, one USB to TTL serial cable and one 12V/2A power adapter. MYIR also offers MY-CAM003M MIPI Camera Module, MY-WIREDCOM RPI Module (RS232/RS485/CAN), MY-LCD70TP-C LCD Module and MY-LVDS070C LCD Module as add-on options for the board.

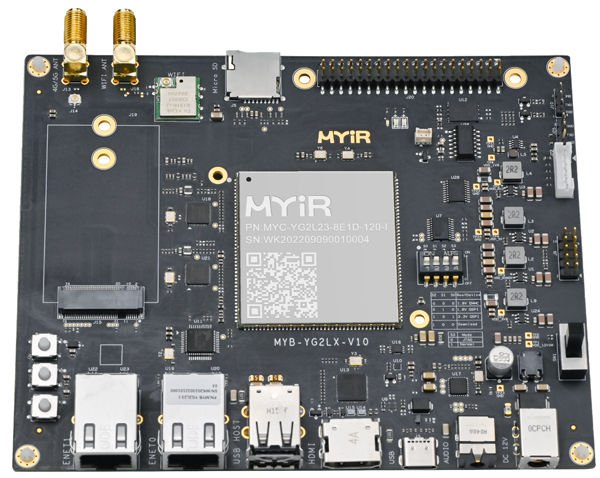

MYD-YG2LX Develoment Board Top-view
MYD-YG2LX Develoment Board Bottom-view
MYIR offers MY-CAM003M MIPI Camera Module, MY-WIREDCOM RPI Module (RS232/RS485/CAN), MY-LCD70TP-C LCD Module and MY-LVDS070C LCD Module as options for the board which have greatly enhanced the functionality of the board.
Features
Mechanical Parameters
- Dimensions: 150mm x 120mm (base board), 45mm x 43mm (CPU Module)
- PCB Layers: 6-layer design (base board), 10-layer design (CPU Module)
- Power supply: +12V/2A (base board) or USB Type-C power supply, 5V/1A (CPU Module)
- Working temperature: -40~85 Celsius (industrial grade)
- (WiFi Module: -20~70 Celsius)
Processor
- RENESAS RZ/G2L processor (R9A07G044L23GBG)
- 1.2 GHz Dual-core ARM Cortex-A55
- 200 MHz ARM Cortex-M33
- 3D graphics functions (Arm Mali-G31)
- Video codec (H.264)
Memory
- 1G/2G DDR4 (supports optional 4GB)
- 8GB eMMC (supports optional 4GB/16GB/32GB)
- 32KB EEPROM
Peripherals and Signals Routed to Pins
- Power Management IC (RAA215300)
- 164-pin stamp-hole (Castellated-Hole) and 58-pin LGA expansion interfaces
- 2 x RGMII
- 4 x I2C
- 3 x SPI
- 2 x USB 2.0
- 1 x MIPI DSI
- 1 x MIPI CSI
- 1 x Parallel CSI
- 1 x RGB
- 2 x SCI
- 5 x SCIF
- 8 x ADC
- 4 x SSI
- 1 x SRC
- 2 x CAN
- Up to 118 GPIOs
OS Support
- Linux 5.10
The MYD-YG2LX Development Board Base Board
- 1 x Power Jack
- 1 x Power Switch
- Serial ports
- Debug serial port (TTL)
- 3 x RS232
- USB
- 1 x USB2.0 Host ports
- 1 x USB2.0 OTG port
- 1 x M.2 socket for USB based 4G/5G LTE Module
- 1 x USB based WiFi Module
- 2 x SIM card slots
- 1 x Micro SD card slot
- 2 x Antenna Interfaces (one for WiFi and one for 4G/5G)
- 2 x 10/100/1000 Mbps Ethernet interface (RJ45)
- 1 x JTAG interface
- Video Input
- 1 x MIPI-CSI Interface (0.5mm pitch 24-pin FPC connector) Supports MYIR’s MY-CAM003M Camera Module through J2
- Video Output
- 1 x HDMI Output Interface
- 1 x RGB Display interface (J24, 40-pin 0.5mm pitch FPC connector) Supports MYIR’s MY-LCD70TP-C LCD Module with Capacitive Touch Screen through the LCD interface
- 1 x LVDS Display interface (J6, 30-pin 0.5mm pitch FPC connector) Supports MYIR’s MY-LVDS070C LCD Module with Capacitive Touch Screen through the LCD interface
- Audio Input and Output Interface
- 1 x 2.54mm 2 x 20-pin male expansion header
- (J20, GPIO/TWI/UART, compatible with Raspberry PI standard 40-pin extension interface) Supports MYIR’s MY-WIREDCOM RPI Module through J25 to extend RS485, RS232 and CAN functions
- 3 x Buttons (one for Reset, one for Power On/Off and one for USER)
Order Part No and Packing List
| Item | Part No. | Included |
|---|---|---|
|
MYD-YG2LX Development Board |
MYD-YG2L23-8E1D-120-I |
- One MYD-YG2LX Development Board |
|
MYD-YG2L23-8E2D-120-I |
||
|
MYC-YG2L23-8E1D-120-I |
- One MYC-YG2LX Module |
|
|
MYC-YG2L23-8E2D-120-I |
||
| MY-CAM003M Camera Module |
MY-CAM003M |
MIPI Camera Module |
| MY-WIREDCOM | RPI Mofule for extension of RS232/RS485 | |
| MY-LVDS070C | 7-inch LCD Module with capacitive touch screen | |
| MY-TFT070CV2 | 7-inch LCD Module with capacitive touch screen |
Hardware Specification
The MYC-YG2LX CPU Module is using the 15 x 15mm, 0.5 mm ball pitch, 456pin LFBGA package, 1.2 GHz RZ/G2L (R9A07G044L23GBG) MPU which belongs to the RENESAS RZ/G2L product group and features dual-core Arm Cortex-A55 (1.2 GHz) CPUs and Single-core Arm Cortex-M33 (200 MHz) CPU, with 3D graphics and video CODEC engine. And the microprocessor also comes with 16-bit DDR4-1600/DDR3L-1333 dynamic Random access memory, camera interface (MIPI-CSI/Parallel-IF), display interface (MIPI-DSI/Parallel-IF), and USB2.0 Interface, SDHI interface, CAN interface, Gigabit Ethernet interface, making it ideal for applications such as entry-class industrial human-machine interfaces (HMIs) and embedded devices with video capabilities.
Dimensions of MYC-YT507H
Software Features
The MYC-YG2LX CPU Module supports Linux OS and comes with complete software package. The kernel and many peripheral drivers are available in source code to assist clients to expedite their development. The following are a summary of the software features:
| Item | Features | Description | Source Code |
|---|---|---|---|
| Bootloader | trusted-firmware-a | fsbl boot | YES |
| U-boot | second boot program based on uboot_2021.10 | YES | |
| Linux kernel | Linux kernel | Customized base on official kernel_5.10.83 version | YES |
| Device driver | PMIC | RAA215300A2GNP driver | YES |
| PMIC | RAA215300A2GNP driver | YES | |
| QSPI | W25Q128JVEIQ driver | YES | |
| USB Host | USB Host driver | YES | |
| USB OTG | USB OTG driver | YES | |
| I2C | I2C bus driver | YES | |
| SPI | SPI bus driver | YES | |
| Ethernet | YT8531SH driver | YES | |
| SDHI | eMMC/SD card storage driver | YES | |
| HDMI | LT8912 driver | YES | |
| LVDS | LT8912 driver | YES | |
| RGB | RGB driver | YES | |
| Audio | SGTL5000 audio driver | YES | |
| 4G/5G | 4G/5G driver | YES | |
| PWM | PWM control | YES | |
| ADC | ADC driver | YES | |
| RTC | RTC driver | YES | |
| GPIO | Generic GPIO driver | YES | |
| UART | RS232/RS485/TTL driver | YES | |
| CAN | CAN driver | YES | |
| Camera(MIPI) | OV5640 camera driver | YES | |
| WiFi | FG6188EUFX-05 driver | YES | |
| File System | myir-image-core | image without GUI interface built with Yocto | YES |
| myir-image-full | full-featured image built with Yocto | YES | |
| myir-image-ubuntu-xfce | image with xfce desktop system built with Ubuntu 20.04 (not available yet) | YES | |
| Application DEMO | Charging pile application | Refer to State Grid charging pile program to implement Modbus protocol, IEC104 platform communication protocol and charging demonstration interface. Integrating the features into MEasyHMI V2.0 for demonstration through full image. |
YES |
| PLC controller | Porting open source Ethercat host IGH; Use Linux real-time patch PREEMPT-RT or XENOMAI (real-time response speed and real-time jitter time measured data), to write a console application and control the EtherCAT slave station and servo motor by command. | YES | |
| Engineering machinery scene | Four AHD cameras capture four channels of videos to display on screen. The analog instrument information is displayed on screen. The videos and instrument information are displayed with split-screen presentation. Integrating the features into MEasyHMI V2.0 for demonstration through full image. |
YES |
