MYD-YT113i Development Board
MYD-YT113i Development Board
The MYD-YT113i Development Board is built around the MYC-YT113i CPU Module to provide a complete evaluation platform for ALLWINNER T113-i processor which features up to 1.2GHz Dual-core ARM Cortex-A7 MPU with a RISV slave core and a single-core HiFi4 DSP, targeting applications such as HMI, industrial automation, display and control terminals. It is provided with various RAM and Flash configurations to meet customers’ different requirements, supporting 512MB/1GB DDR3 and 4GB/8GB eMMC. The base board has brought out rich peripherals through connectors and headers such as four UART ports, one Debug port, one Gigabit Ethernet, two USB 2.0 HOST and one USB 2.0 OTG, one Micro SD card slot, one M.2 Socket for 4G/5G LTE Module with two SIM card holders, one WiFi module, one GPIO/I2C/UART/SPI/CAN extension header, one single-channel LVDS and one dual-channel LVDS display interface, as well as audio output interface.
MYC-YT113i (Top-view and Bottom-view)
- MYC-YT113i CPU Module as Controller Board
- Up to 1.2GHz Allwinner T113-i Dual-core ARM Cortex-A7 MPU with Single-core HiFi4 DSP
- 512MB/1GB DDR3, 4GB/8GB eMMC, 32KB EEPROM
- UARTs, 2 x USB 2.0 HOST, 1 x USB 2.0 OTG, 1 x CAN, 1 x Gigabit Ethernet, WiFi, 4G/5G Module Interface, Micro SD card Slot
- 1 x Single-channel LVDS, 1 x Dual-channel LVDS, 1 x Audio Output
- Supports Running Linux 5.4 OS
- Optional LCD Module and RPI Module (RS232/RS485/CAN)
The MYD-YT113i Development Board is capable of running Linux OS. MYIR provides abundant software resources including image files, kernel and driver source code, application demos and compilation tools to enable users to start their development rapidly and easily. It is delivered with one Quick Start Guide, one USB to TTL serial cable and one 12V/2A power adapter. MYIR also offers MY-WIREDCOM RPI Module (RS232/RS485/CAN) and MY-LVDS070C 7 inch LCD Module as add-on options for the board.

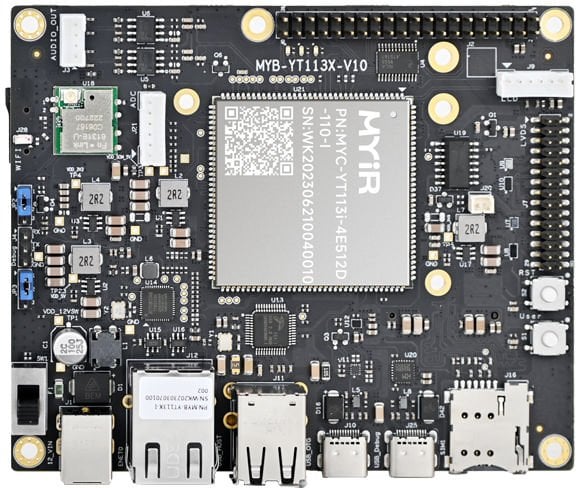

MYD-YT113i Development Board Top-view
MYD-YT113i Development Board Bottom-view
MYIR also offers MY-WIREDCOM RPI Module (RS232/RS485/CAN) and MY-LVDS070C LCD Module as options for the MYD-YT113i Development Board to enhance the functionality of the board.
Features
Mechanical Parameters
- Dimensions: 110mm x 90mm (base board), 39mm x 37mm (CPU Module)
- PCB Layers: 4-layer design (base board), 8-layer design (CPU Module)
- Power supply: 12V/2A (base board), 5V/1A (CPU Module)
- Working temperature: -40~85 Celsius (WiFi Module only supports -20~70 Celsius)
Processor
- Allwinner T113-S3 processor
- Up to 1.2GHz Dual-core Arm Cortex-A7 CPU
- Single-core HiFi4 DSP
- Supports H.265/H.264 4K video decoding
Memory
- 512MB/1GB DDR3
- 4GB/8GB eMMC
- 32KB EEPROM
Peripherals and Signals Routed to Pins
- 1.0mm pitch 140-pin stamp hole expansion interface + 50-pin LGA
- 1 x RGMII/RMII
- 2 x USB2.0
- 6 x UART
- 2 x CAN
- 4 x TWI
- 2 x SPI
- 1 x GPADC and 4 x TPADC
- 1 x MIPI DSI
- 2 x LVDS
- 1 x RGB
- 1 x CVBS Out (TV Out)
- 1 x Parallel CSI
- 2 x CVBS In (TV In)
- 2 x I2S
- Up to 81 GPIOs
OS Support
- Linux 5.4
The MYD-YT113i Development Board Base Board
- 1 x Power Switch
- Serial ports
- 1 x Debug UART (TTL)
- 4 x TTL serial ports
- USB
- 2 x USB2.0 Host ports
- 1 x USB 2.0 OTG port (Type-C)
- 1 x USB based WiFi Module
- 1 x USB based M.2 socket for 4G/5G LTE Module
- 2 x SIM card slots
- Ethernet
- 1 x 10/100/1000 Mbps Ethernet interface (RJ45)
- 1 x Micro SD card slot
- Video Output
- 1 x Single-channel LVDS Display interface (LVDS0, 40-pin 0.5mm pitch FPC connector)
Supports MYIR’s MY-LVDS070C LCD Module with Capacitive Touch Screen through the LCD interface - 1 x Dual-channel LVDS Display interface (LVDS, 30-pin 2.0mm pitch header connector)
- 1 x Single-channel LVDS Display interface (LVDS0, 40-pin 0.5mm pitch FPC connector)
- 1 x Audio output interface
- 1 x 2.54mm 2 x 20-pin male expansion header
J25, GPIO/I2C/UART/SPI/CAN, compatible with Raspberry PI standard 40-pin extension interface
Supports MYIR’s MY-WIREDCOM RPI Module to extend CAN/RS232/RS485 functions - 2 x Buttons (one for Reset and one for User)
Order Part No and Packing List
| Item | Part No. | Included |
|---|---|---|
|
MYD-YT113i-4E256D-110-I |
- One MYD-YT113i board (including MYC-YT113i) |
|
|
MYD-YT113i-4E512D-110-I |
||
|
MYD-YT113i-8E512D-110-I |
||
|
MYD-YT113i-8E1D-110-I |
||
|
MYC-YT113i-4E256D-110-I |
- One MYC-YT113i Module |
|
|
MYC-YT113i-4E512D-110-I |
||
|
MYC-YT113i-8E512D-110-I |
||
|
MYC-YT113i-8E1D-110-I |
||
| MY-WIREDCOM RPI Module |
MY-WIREDCOM |
RPI Mofule for extension of RS232/RS485/CAN |
| MY-LVDS070C | 7-inch LCD Module with capacitive touch screen |
Hardware Specification
The MYC-YT113i is using 13 x 13 mm, 337-LFBGA package Allwinner T113-i processor which is the Multi-Media decoding platform. T113-i integrates a 64-bit XuanTie C906 RISC-V CPU, a dual-core Arm Cortex-A7 CPU, and a HiFi4 DSP to provide the high-efficient computing power. It supports the full format decoding such as H.265, H.264, MPEG-1/2/4, JPEG, etc. The independent encoder can encode in JPEG or MJPEG. Integrated multi ADCs/DACs and I2S/PCM/DMIC/OWA audio interfaces can work seamlessly with the CPU to accelerate multimedia algorithms and improve the user experience. T113-i supports RGB/LVDS/MIPI DSI/CVBS OUT display output interfaces to meet the requirements of the different screen display. T113-i comes with extensive connectivity and interfaces, such as USB, SDIO, EMAC, TWI, UART, SPI, PWM, GPADC, LRADC, TPADC, IR TX&RX, etc. Besides, T113-i can connect with other different peripherals like Wi-Fi and BT via SDIO and UART.
| Features | Description |
|---|---|
| CPU |
|
| DSP |
|
| Memory |
|
| Video Engine |
Video decoding
Video encoding
|
| Display Engine |
|
| Video OUT |
|
| Video IN |
|
| Audio |
|
| Connectivity |
|
| Package | LFBGA 337 balls, 13 mm x 13 mm |
Dimensions of MYC-YT113i
Software Features
The MYC-YT113i CPU Module supports Linux OS and comes with complete software package. The kernel and many peripheral drivers are available in source code to assist clients to expedite their development. The following are a summary of the software features:
| Item | Features | Description | Features |
|---|---|---|---|
| Bootloader | U-boot | Boot boot program uboot_2018.05 | YES |
| Linux kernel | Linux kernel | Customized base on official kernel_5.4.61 version | YES |
| Device driver | USB Host | USB Host driver | YES |
| USB OTG | USB OTG driver | YES | |
| I2C | I2C bus driver | YES | |
| SPI | SPI bus driver | YES | |
| Ethernet | YT8531SH driver | YES | |
| SDHI | EMMC/SD card storage driver | YES | |
| LVDS | LCD driver | YES | |
| Touch | Touch screen driver | YES | |
| Audio | SPDIF driver | YES | |
| Watchdog | Watchdog driver | YES | |
| 4G/5G | 4G/5G driver | YES | |
| PWM | PWM control driver | YES | |
| ADC | ADC driver | YES | |
| RTC | RTC driver | YES | |
| GPIO | Universal GPIO driver | YES | |
| UART | RS232/RS485/TTL driver | YES | |
| CAN | CAN driver | YES | |
| WIFI | RTL8731BU driver | YES | |
| Images | t113_linux_myir_emmc_core | Image built with Buildroot, excluding GUI interface | YES |
| t113_linux_myir_emmc_full | A fully functional image built with Buildroot | YES |
