MYD-YT113X Development Board
MYD-YT113X Development Board

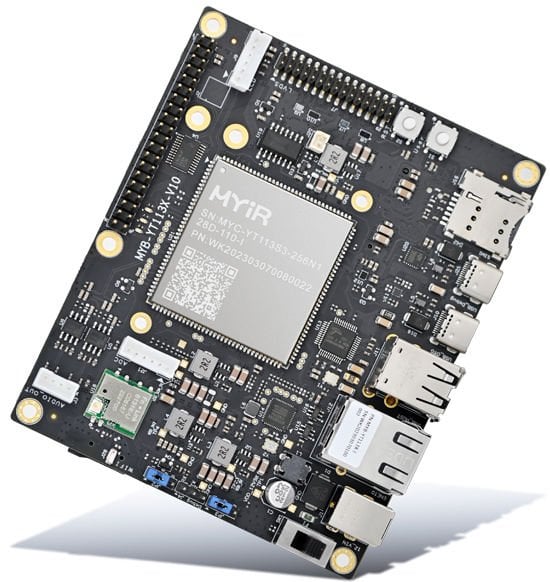

The MYD-YT113X Development Board consists of a compact CPU Module MYC-YT113X and a base board to provide a complete evaluation platform for ALLWINNER T113-S3 processors which features dual-core Arm Cortex-A7 operating at up to 1.2GHz, with built-in 128MB DDR3, single-core HiFi4 DSP and Video CODEC Engine, targeting applications such as HMI, industrial automation, display and control terminals.
MYC-YT113X CPU Module (delivered with shieldinig cover by default)
- MYC-YT113X CPU Module as Controller Board
- Up to 1.2GHz Allwinner T113-S3 Dual-core ARM Cortex-A7 MPU with 128MB DDR3 and Single-core HiFi4 DSP
- 4GB eMMC / 256MB Nand FLASH, 32KB EEPROM
- UARTs, 2 x USB 2.0 HOST, 1 x USB 2.0 OTG, 1 x CAN, 1 x Gigabit Ethernet, WiFi, 4G/5G Module Interface, Micro SD card Slot
- 1 x Single-channel LVDS , 1 x Dual-channel LVDS, Audio Output
- Supports Running Linux 5.4 OS
- Optional LCD Module and RPI Module (RS232/RS485/CAN)
The MYC-YT113X CPU Module is populated on the MYD-YT113X base board through 1.0mm pitch 140-pin stamp-hole (Castellated-Hole) interface. It is a highly-integrated SoM which combines the T113-S3 processor, 4GB eMMC FLASH or 256MB Nand FLASH, and 32KB EEPROM. The base board has brought out rich peripherals through connectors and headers such as four UART ports, one Debug port, one Gigabit Ethernet, two USB 2.0 HOST and one USB 2.0 OTG, one Micro SD card slot, one M.2 Socket for 4G/5G LTE Module with two SIM card holders, one WiFi module, one GPIO/I2C/UART/SPI/CAN extension header, one single-channel LVDS and one dual-channel LVDS display interface, as well as audio output interface.
MYD-YT113X Development Board Top-view
MYD-YT113X Development Board Bottom-view
The MYD-YT113X Development Board is capable of running Linux OS. MYIR provides abundant software resources including image files, kernel and driver source code, application demos and compilation tools to enable users to start their development rapidly and easily. It is delivered with one Quick Start Guide, one USB to TTL serial cable and one 12V/2A power adapter. MYIR also offers MY-WIREDCOM RPI Module (RS232/RS485/CAN) and MY-LVDS070C 7 inch LCD Module as add-on options for the board.
Features
Mechanical Parameters
- Dimensions: 37mm x 39mm
- PCB Layers: 6-layer design
- Power supply: 5V/1A
- Working temperature: -40~85 Celsius (industrial grade)
Processor
- Allwinner T113-S3 processor
- Up to 1.2GHz Dual-core Arm Cortex-A7 with built-in 128MB DDR3
- Single-core HiFi4 DSP
- Supports H.265/H.264 video decoding up to 1080p@60fps and JPEG/MJPEG video encoding up to 1080p@60fps
Memory
- 4GB eMMC or 256MB Nand FLASH
- 32KB EEPROM
Peripherals and Signals Routed to Pins
- 1.0mm pitch 140-pin stamp hole expansion interface
- 1 x RGMII/RMII
- 2 x USB2.0
- 6 x UART
- 2 x CAN
- 4 x TWI
- 2 x SPI
- 1 x GPADC and 4 x TPADC
- 1 x MIPI DSI
- 2 x LVDS
- 1 x RGB
- 1 x CVBS Out (TV Out)
- 1 x Parallel CSI
- 2 x CVBS In (TV In)
- 2 x I2S
- Up to 59 GPIOs
OS Support
- Linux 5.4
The MYD-YT113X Development Board Base Board
- 1 x Power Switch
- Serial ports:
- 1 x Debug UART (TTL)
- 4 x TTL serial ports
- USB
- 2 x USB2.0 Host ports
- 1 x USB 2.0 OTG port (Type-C)
- 1 x USB based WiFi Module
- 1 x USB based M.2 socket for 4G/5G LTE Module
- 2 x SIM card slots
- Ethernet
- 1 x 10/100/1000 Mbps Ethernet interface (RJ45)
- 1 x Micro SD card slot
- Video Output:
- 1 x Single-channel LVDS Display interface (LVDS0, 40-pin 0.5mm pitch FPC connector)
- Supports MYIR’s MY-LVDS070C LCD Module with Capacitive Touch Screen through the LCD interface
- 1 x Dual-channel LVDS Display interface (LVDS, 30-pin 2.0mm pitch header connector)
- 1 x Audio output interface
- 1 x 2.54mm 2 x 20-pin male expansion header
(J25, GPIO/TWI/UART, compatible with Raspberry PI standard 40-pin extension interface) - Supports MYIR’s MY-WIREDCOM RPI Module to extend CAN/RS232/RS485 functions
- 2 x Buttons (one for Reset and one for User)
Order Part No and Packing List
| Item | Part No. | Included |
|---|---|---|
|
MYD-YT113S3-256N128D-110-I |
-One MYD-YT113X board (including MYC-YT113X CPU Module) |
|
|
MYD-YT113S3-4E128D-110-I |
||
|
MYC-YT113S3-256N128D-110-I |
One MYC-YT113X Module |
|
|
MYC-YT113S3-4E128D-110-I |
||
| MY-WIREDCOM RPI Module |
MY-WIREDCOM |
RPI Mofule for extension of RS232/RS485/CAN |
| MY-LVDS070C | 7-inch LCD Module with capacitive touch screen |
Hardware Specification
The MYC-YT113X CPU Module populated on the MYD-YT113X Development Board is using 14 x 14 mm, eLQFP128 package Allwinner T113-S3 processor which is designed for the automotive and industrial control products. It integrates dual-core Cortex-A7 CPU and single-core HiFi4 DSP to provide the high efficient computing power. T113-S3 supports full format decoding such as H.265, H.264, MPEG-1/2/4, JPEG, VC1, and so on. The independent hardware encoder can encode in JPEG or MJPEG. Integrated multi ADCs/DACs and I2S/PCM/DMIC/OWA audio interfaces can provide the perfect voice interaction solution. T113-S3 comes with extensive connectivity to facilitate product expansion, such as CAN, USB, SDIO, EMAC, TWI, UART, SPI, PWM, GPADC, IR TX&RX, and so on.
| Features | Description |
|---|---|
| CPU |
|
| DSP |
|
| Memory |
|
| Video Engine |
Video decoding
Video encoding
|
| Display Engine |
|
| Video OUT |
|
| Video IN |
|
| Audio |
|
| Security System |
|
| Connectivity |
|
| Package | eOFP128, 14 mm x 14 mm |
Dimensions of MYC-YT113X
Software Features
The MYD-YT113X Development Board supports Linux OS and comes with complete software package. The kernel and many peripheral drivers are available in source code to assist clients to expedite their development. The following are a summary of the software features:
| Item | Features | Description | Features |
|---|---|---|---|
| Bootloader | U-boot | Boot boot program uboot_2018.05 | YES |
| Linux kernel | Linux kernel | Customized base on official kernel_5.4.61 version | YES |
| Device driver | USB Host | USB Host driver | YES |
| USB OTG | USB OTG driver | YES | |
| I2C | I2C bus driver | YES | |
| SPI | SPI bus driver | YES | |
| Ethernet | YT8531SH driver | YES | |
| SDHI | EMMC/SD card storage driver | YES | |
| LVDS | LCD driver | YES | |
| Touch | Touch screen driver | YES | |
| Audio | SPDIF driver | YES | |
| Watchdog | Watchdog driver | YES | |
| 4G/5G | 4G/5G driver | YES | |
| PWM | PWM control driver | YES | |
| ADC | ADC driver | YES | |
| RTC | RTC driver | YES | |
| GPIO | Universal GPIO driver | YES | |
| UART | RS232/RS485/TTL driver | YES | |
| CAN | CAN driver | YES | |
| WIFI | RTL8731BU driver | YES | |
| File System | t113_linux_myir_emmc_core | Image built with Buildroot, excluding GUI interface | YES |
| t113_linux_myir_emmc_full | A fully functional image built with Buildroot | YES | |
| t113_linux_myir_nand | Image built with Buildroot, excluding GUI interface, used for Nand Flash version | YES |
