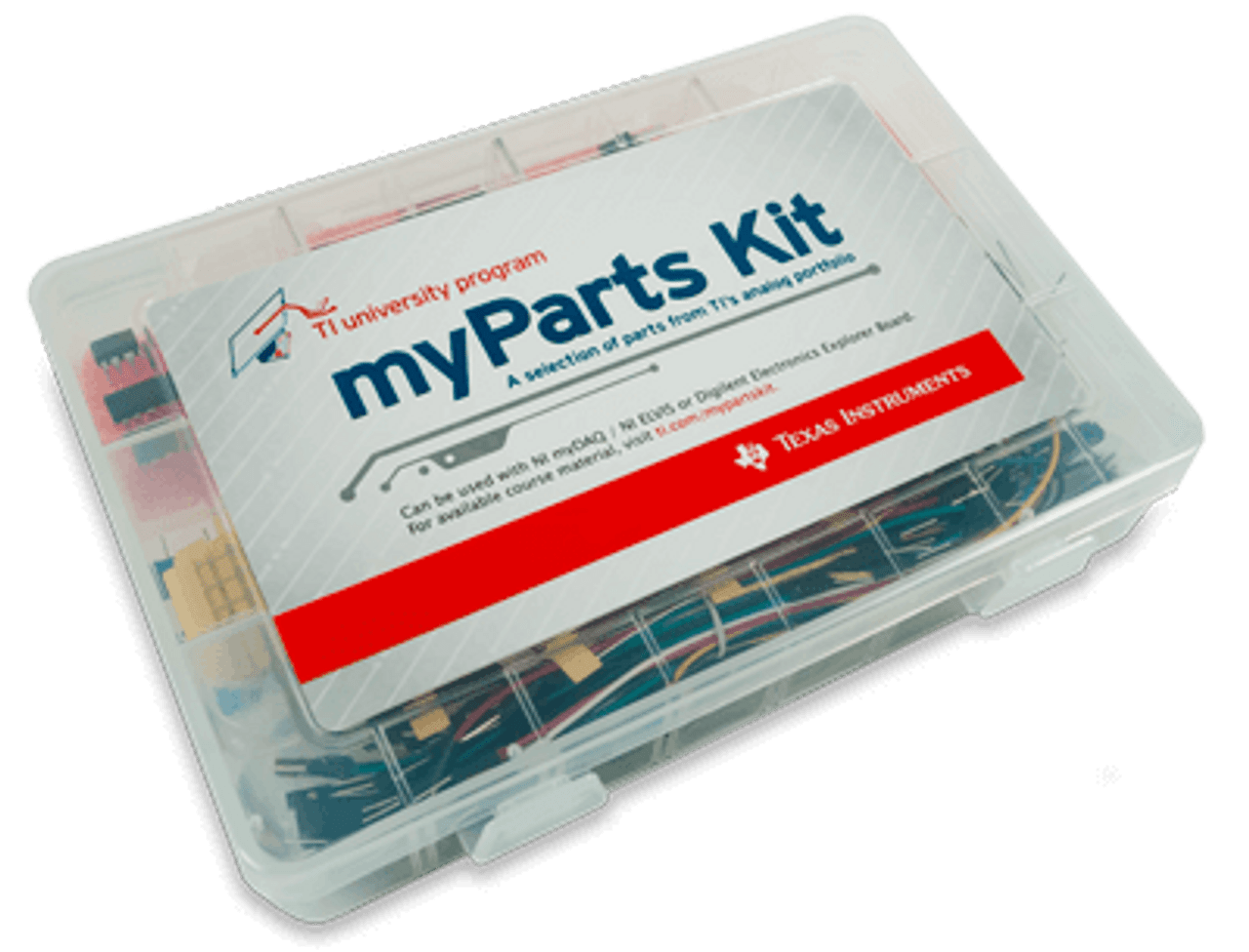

Whether you are getting started or a long time engineer picking a selection of parts to stock a lab can be a daunting task. Parts Kits provide a useful selection of parts to help get started. Get your students quickly involved in building essential electronic circuits using myParts Kit supported by the Texas Instruments® University Program.
The set of key components in the myParts Kit encourages hands-on experimentation with breadboards of basic circuitry, helping to make learning productive and enjoyable for beginners and more advanced students alike. Hobbyists and independent developers will also find the kit useful for investigating their design concepts.
The kit comes with a collection of parts that are the building blocks of all electronics, including op-amps, an instrumentation amplifier, a comparator, voltage regulators, switching regulators, digital logic gates, timers, temperature sensors, data converters, transistors, resistors, capacitors, LEDs, switches, a wiring kit and more. myParts Kit enables your students to run experiments that help them understand real-life applications in areas such as power management, audio amplification, spinning motors, light detection, signal conditioning, and telecommunications to name a few. Projects that can be built with the kit include:
- Inverting and non-inverting amplifiers
- Filters
- Voltage followers
- Regulators
- Signal conditioning
- Pulse-width modulated (PWM) signal generators
- Integrators
- Differentiators
- Light detectors
- Data converters
...and many others.
The kit is a great compliment to the Analog Discovery, Analog Discovery Studio, NI myDAQ and ELVIS tools for hands-on learning both inside and outside of the lab. Students can use the simulation software that is already available in school to simulate results before building their circuits. In addition, if your school uses NI Multisim, you have the capability of pulling many of these TI devices into a design.
myParts Kit can help get your students ready to launch specialized advanced projects in renewable energy, bio-medical and robotics and automation, to name only a few applications. For these systems, students can turn to the wide portfolio of semiconductor products that TI offers, including microcontrollers, processors, wireless connectivity solutions, power management, data conversion, amplifiers, and logic. Many of the analog devices are supported by educational kits available through TI's University Program, such as the Analog System Lab Kit PRO, which helps you learn the essential analog building blocks of an electronics system.
The TI myParts Kit is curated by Texas Instruments. A link to the data sheet from Texas Instruments including a full list of parts can be found in the Support Materials tab.
What's Included
Op-amps:
- Op-amp: TL072CP
- Op-amp: TL074CN
- Op-amp: LF356
- Op-amp: LM741C
- Instrumentation Amp: INA217
- Comparator: LM311P
Regulators:
- 1.5A boost/buck/inverting switching regulator: MC34063AP
- Voltage regulator: LM317 (TO-220)
Converters:
- Freq to V converter: LM2917N/NOPB
- A/D converter, 12-bit: ADS7816P
- A/D converter: ADS7822P
- D/A converter, 12-bit: TLV5616CP
Diodes:
- Zener diode: 1N4735
- Small signal diode: 1N3064
- Fast switching diode: 1N914B
- 1A Shottky diode: 1N5819
- 1A rectifier diode: 1N4001
- Infrared receiver diode
- Infrared emitter diode
Power Resistors:
- 10W, 6.8 Ω, ±5%
Potentiometers:
- ¾ W, 1 kΩ, ±10%: 3006P-102
- ¾ W, 10 kΩ, ±10%: 3006P-103
- ¾ W, 100 kΩ, ±10%: 3006P-104
Ceramic Capacitors:
- 39 pF (x2)
- 100 pF (x2)
- 1 nF (x2)
- 2.2 nF (x2)
- 4.7 nF (x2)
- 10 nF (x4)
- 47 nF (x2)
- 100 nF (x2)
Electrolytic Capacitors:
- 1 uF, 50V (x2)
- 4.7 uF, 50V (x2)
- 10 uF, 50V (x2)
- 22 uF, 25V (x2)
- 47 uF, 25V (x2)
- 220 uF, 25V, ±20% (x1)
- 470 uF, 25V, ±20% (x2)
Transistors:
- P-channel MOSFET (x4): ZVP2110A
- NPN transistor (x3): 2N3904L
- PNP transistor (x3): 2N3906L
- NPN bipolar power transistor: TIP31C
- PNP bipolar power transistor: TIP32C
- N-channel power MOSFET: IRF510
- Compl. transistor pair: STD815CP40 or STD830CP40
- Dual NPN high voltage transistors: STD845DN40 or STD840DN40
Logic ICs:
- NAND: triple 3 input (SN74LS10N)
- NAND: quad 2 input (SN74LS00N)
- OR: quad 2 input (SN74LS32N)
- XOR: quad 2 input (SN74LS86N)
- NOR: quad 2 input (SN74LS02N)
- AND: quad 2 input (SN74LS08N)
- Inverter buffer/driver: SN74LS04N Hex
- Counter, 4-bit: SN74LS163N
- Dual JK flip-flop: SN74LS107AN
- D type dual flip-flop: SN74LS74N
- Decoder/encoder/mux: CD4511BE
- 3 to 8 decoder/demux: SN74LS138N
- 8 to 3 encoder: SN74LS148
- Dual complementary pair/inverter: CD4007UB
- Timer: TLC555CP
Resistors:
- ¼ W, 1.1 Ω, ±5%
- ¼ W, 2.2 Ω, ±5%
- ¼ W, 10 Ω, ±5%
- ¼ W, 47 Ω, ±5%
- ¼ W, 68 Ω, ±5%
- ¼ W, 100 Ω, ±5%
- ¼ W, 150 Ω, ±5%
- ¼ W, 200 Ω, ±5%
- ¼ W, 220 Ω, ±5%
- ¼ W, 330 Ω, ±5%
- ¼ W, 470 Ω, ±5%
- ¼ W, 680 Ω, ±5%
- ¼ W, 1 kΩ, ±5%
- ¼ W, 1.5 kΩ, ±5%
- ¼ W, 2.2 kΩ, ±5%
- ¼ W, 3.3 kΩ, ±5%
- ¼ W, 4.7 kΩ, ±5%
- ¼ W, 5.6 kΩ, ±5%
- ¼ W, 10 kΩ, ±5%
- ¼ W, 15 kΩ, ±5%
- ¼ W, 20 kΩ, ±5%
- ¼ W, 22 kΩ, ±5%
- ¼ W, 33 kΩ, ±5%
- ¼ W, 47 kΩ, ±5%
- ¼ W, 68 kΩ, ±5%
- ¼ W, 100 kΩ, ±5%
- ¼ W, 200 kΩ, ±5%
- ¼ W, 470 kΩ, ±5%
- ¼ W, 1 MΩ, ±5%
- ¼ W, 10 MΩ, ±5%
LEDs:
- Red (x2)
- Yellow (x2)
- Green (x2)
Misc:
- Audio transformer
- Photocell buzzer
- Light sensor
- Wiring kit
