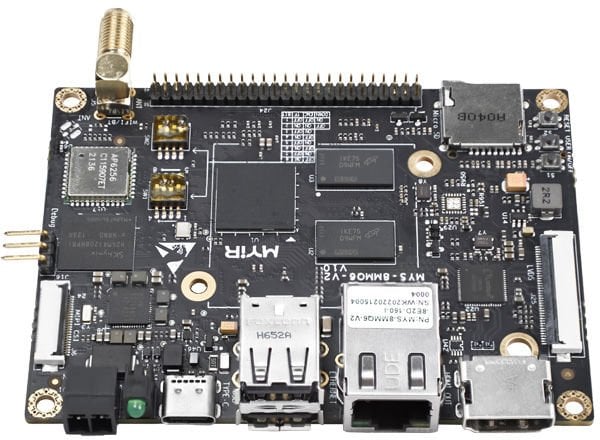

MYS-8MMX-V2 Single Board Computer

The MYS-8MMX-V2 Single Board Computer has a compact design with only 95mm by 65mm form factor. It is powered by NXP’s first embedded multicore applications processor i.MX 8M Mini which features up to 1.8GHz quad-core ARM Cortex-A53 plus 400MHz Cortex-M4 processor, combining advanced 14LPC FinFET process technology to provide more speed and improved power efficiency. The tiny board takes full features of the processor and is equipped with 2GB DDR4, 8GB eMMC and 32MB QSPI Flash. It has explored rich peripheral interfaces through headers and connectors including two USB 2.0 Host, one USB OTG, one Gigabit Ethernet, TF card, M.2 interface, LVDS LCD interface, MIPI CSI interface, HDMI output, IO expansion interface and more others. The AP6256 WiFi/BT module on the board also allows wireless communications with other devices.

The MYS-8MMX-V2 board is capable of running Linux operating system based on the Yocto 3.0 or Ubuntu 18.04 . MYIR provides software resources including kernel and driver source code, together with detailed user manual, schematic documentations to help customer start their development rapidly.

The MYS-8MMX-V2 SBC can be used as a System-on-Module (SOM) for your next embedded design. It can be also used directly for your system integration with your created applications. It can support wide working temperature ranging from -40 to 85 Celsius. With advanced video and graphics capabilities on a single board, the MYS-8MMX-V2 provides a low-power and high-performance solution for embedded applications in areas of consumer electronics, industrial automation, smart healthcare, security monitoring, etc.

MYIR also provides a high-quality aluminum enclosure to house the MYS-8MMX-V2 Single Board Computer, which is called MYS-8MMX-V2 Box. Inside of the enclosure, the MYS-8MMX board is installed with a heat-sink. The Box effectively protects against external interference and gives the product a more elegant appearance. This enables the product to be used in various industries and fields.

Packing List

Hardware Specification

The MYS-8MMX-V2 board is using NXP’s 14 x 14 mm, 0.5 mm pitch, FCBGA486 package i.MX 8M Mini Quad Application Processor (MIMX8MM6DVTLZAA / MIMX8MM6CVTKZAA) which is among the i.MX 8M Mini family and features as in below table.

Feature	MIMX8MM6CVTKZAA	MIMX8MM6DVTLZAA
Marketing Description	i.MX 8M Mini Quad	i.MX 8M Mini Quad
Core: Number of cores (SPEC)	4	4
Core Type	Arm Cortex-A53	Arm Cortex-A53
Operating Frequency [Max] (MHz)	1600	1800
Co Processor Type	Arm Cortex-M4F	Arm Cortex-M4F
Co Processor Frequency (MAX) (MHz)	400	400
External Memory Supported	DDR3L SDRAM, DDR4 SDRAM, ECC, LPDDR4 DRAM, NAND FLASH, NOR FLASH, QSPI
L2 Cache (Max) (KB)	512
Ethernet Type	1 Gbps + IEEE 1588 + AVB
Serial Communication	3 x SPI, 4 x I2C, 4 x UART
PCIe 2.0	1
USB Controllers	2
Video Decode Acceleration	HD1080p60, H.265, H.264, VP8, VP9
Video Encode Acceleration	HD1080p60, H.264, VP8
Display	1 x MIPI-DSI
Camera	1 x MIPI-CSI
GPU 2D / GPU 3D	1x shader, Vivante GC320, Vivante GCNanoUltra
Audio Specific Modules	8-ch PDM input, SAI/I2S
Junction Temperature (Min) (℃)	-40	0
Junction Temperature (Max) (℃)	105	95

The i.MX 8M Mini family of applications processors (i.MX 8M Mini Quad/QuadLite, i.MX 8M Mini Dual/DualLite, i.MX8M Mini Solo/SoloLite) represent NXP’s latest video and audio experience combining state-of-the-art media-specific features with high-performance processing while optimized for lowest power consumption. The i.MX 8M Mini family of processors features advanced implementation of a quad Arm® Cortex®-A53 core, which operates at speeds of up to 1.8GHz. A general-purpose Cortex®-M4 400 MHz core processor is for low-power processing. The DRAM controller supports 32-bit/16-bit LPDDR4, DDR4, and DDR3L memory. A wide range of audio interfaces are available, including I2S, AC97, TDM, and S/PDIF. There are a number of other interfaces for connecting peripherals, such as USB, PCIe, and Ethernet. It is NXP’s first embedded multicore applications processor built using advanced 14LPC FinFET process technology, providing more speed and improved power efficiency. With commercial and industrial level qualification and backed by NXP’s product longevity program, the i.MX 8M Mini family may be used in any general purpose industrial and IoT application.

i.MX 8M Mini System Block Diagram

MYS-8MMX Board Function Block Diagram

Dimensions of MYS-8MMX-V2 Board
