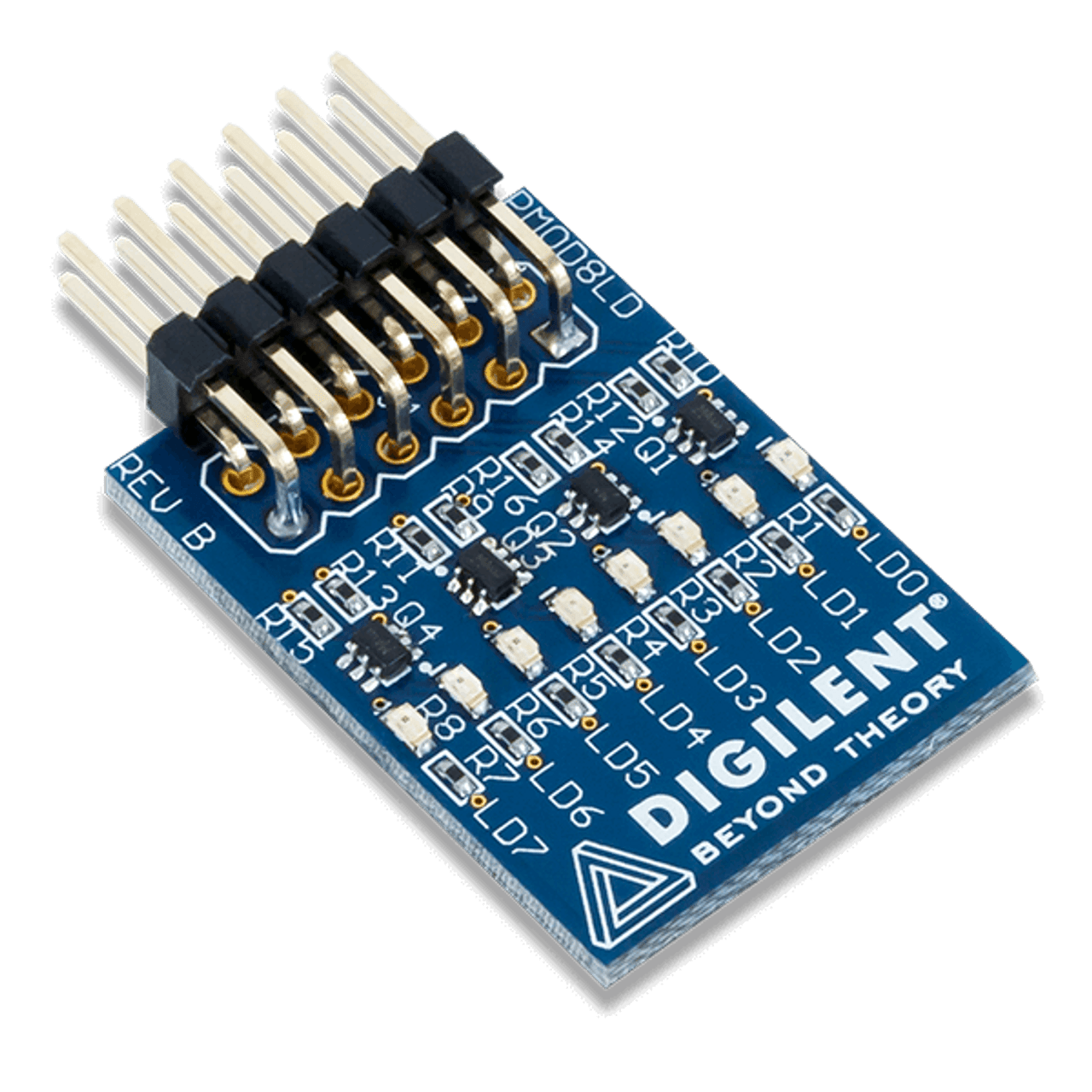

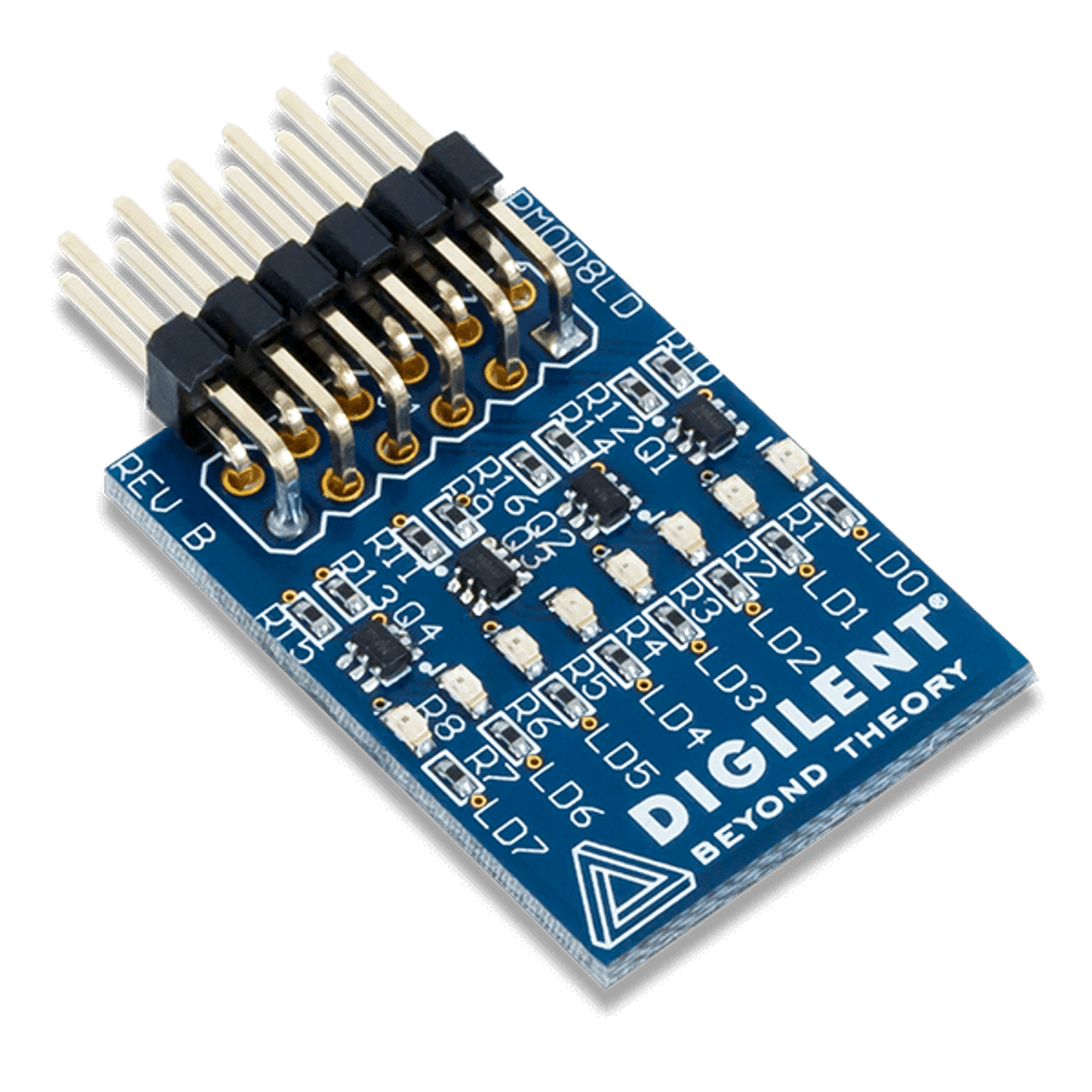

Pmod 8LD: Eight High-brightness LEDs
Stok Kodu : 103.04.02.02
454,02 TL
* 48,39 TL den başlayan taksitlerle!
Pmod 8LD
Eight High-brightness LEDs
The Digilent Pmod 8LD has eight high-brightness LEDs that are driven by logic level transistors so that each LED can be individually illuminated from a logic high signal.
Features
- Eight high-brightness green LEDs
- Uses BJTs for low-power logic level control
- Small PCB size for flexible designs 1.1 in × 0.8 in (2.8 cm × 2.0 cm)
- 2×6-pin Pmod connector with GPIO interface
- Library and example code available in resource center
What's Included
- Pmod 8LD
- Custom antistatic Pmod packaging
| Communication Protocol | : | GPIO |
