Pmod ACL: 3-axis Accelerometer
Stok Kodu : 103.01.04.01
689,23 TL
* 73,47 TL den başlayan taksitlerle!

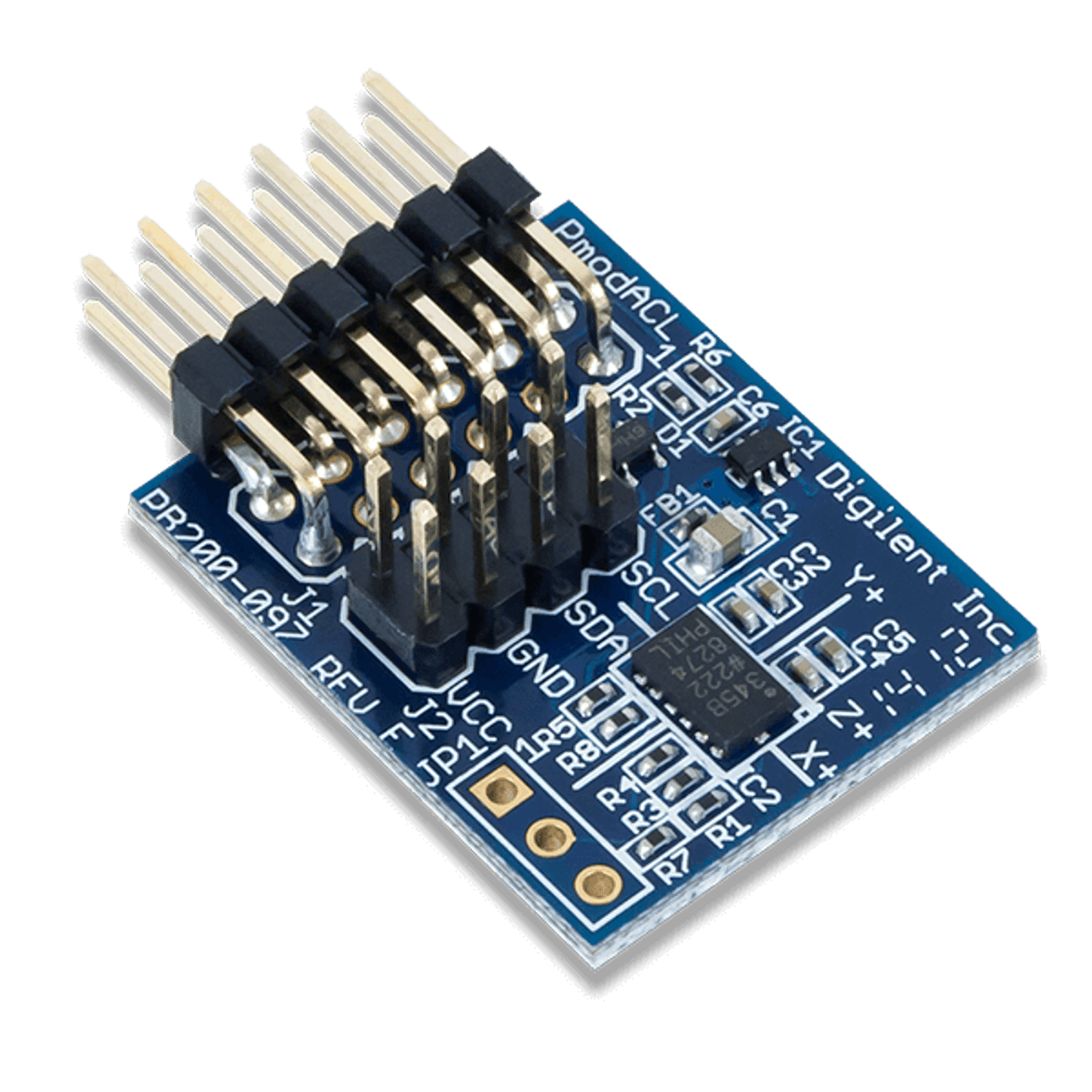

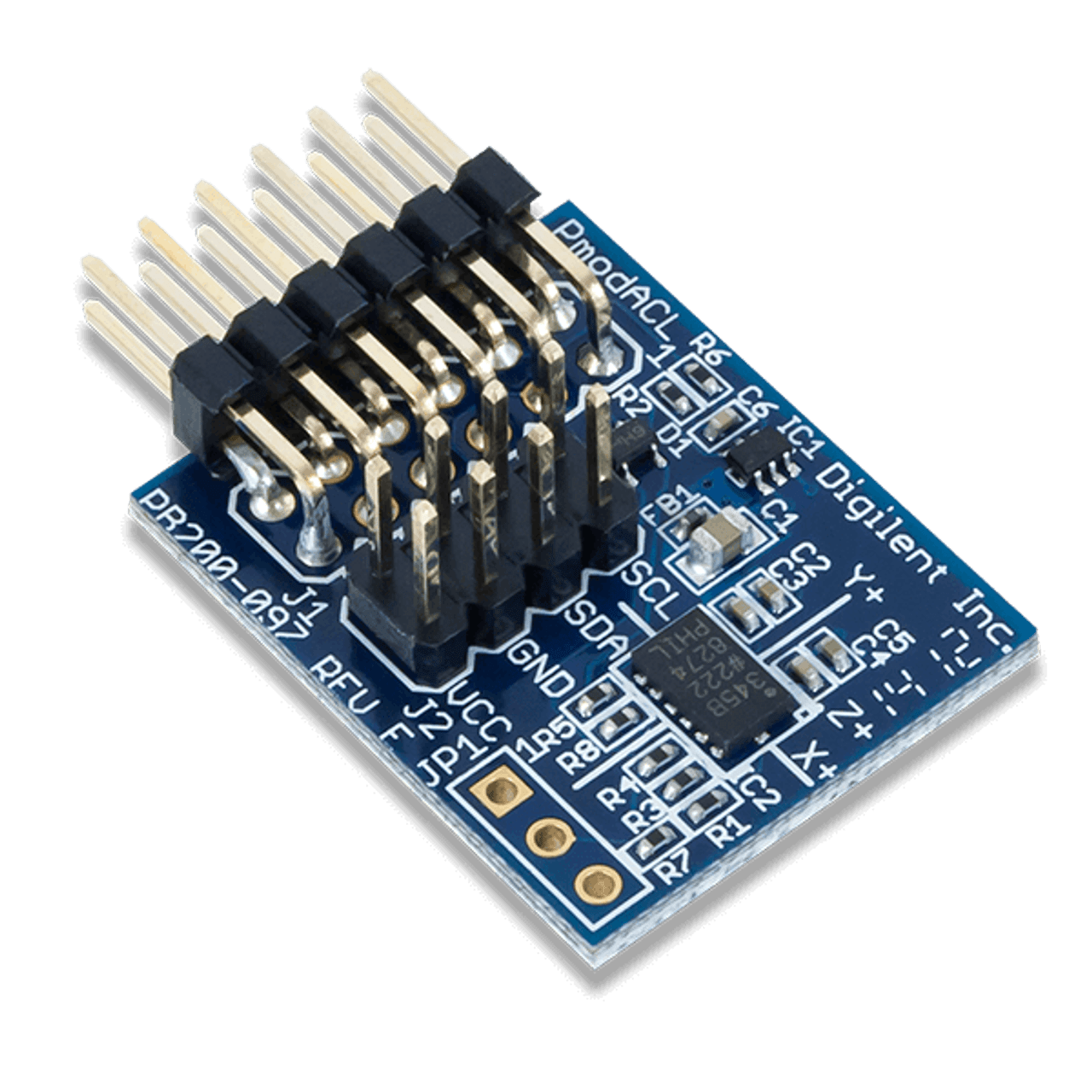

Pmod ACL
3-axis Accelerometer
The Pmod ACL is a 3-axis digital accelerometer module that provides input to a system board. Communication via SPI or I2C with the on-board Analog Devices ADXL345 allows the user to access up to 13 bits of acceleration data, indicating the Pmod's angle of orientation.
Features
- 3-axis, ±2/4/8/16g accelerometer
- User-selectable resolution
- Activity/inactivity monitoring
- Single/double-tap and free-fall detection
- Small PCB size for flexible designs 1.0 in × 0.8 in (2.5 cm × 2.0 cm)
- 12-pin Pmod connector with SPI interface and 2×4-pin I²C interface
- Follows Digilent Pmod Interface Specification Type 2A
What's Included
- Pmod ACL
- Custom antistatic Pmod packaging
| Communication Protocol | : | I2C, SPI |
