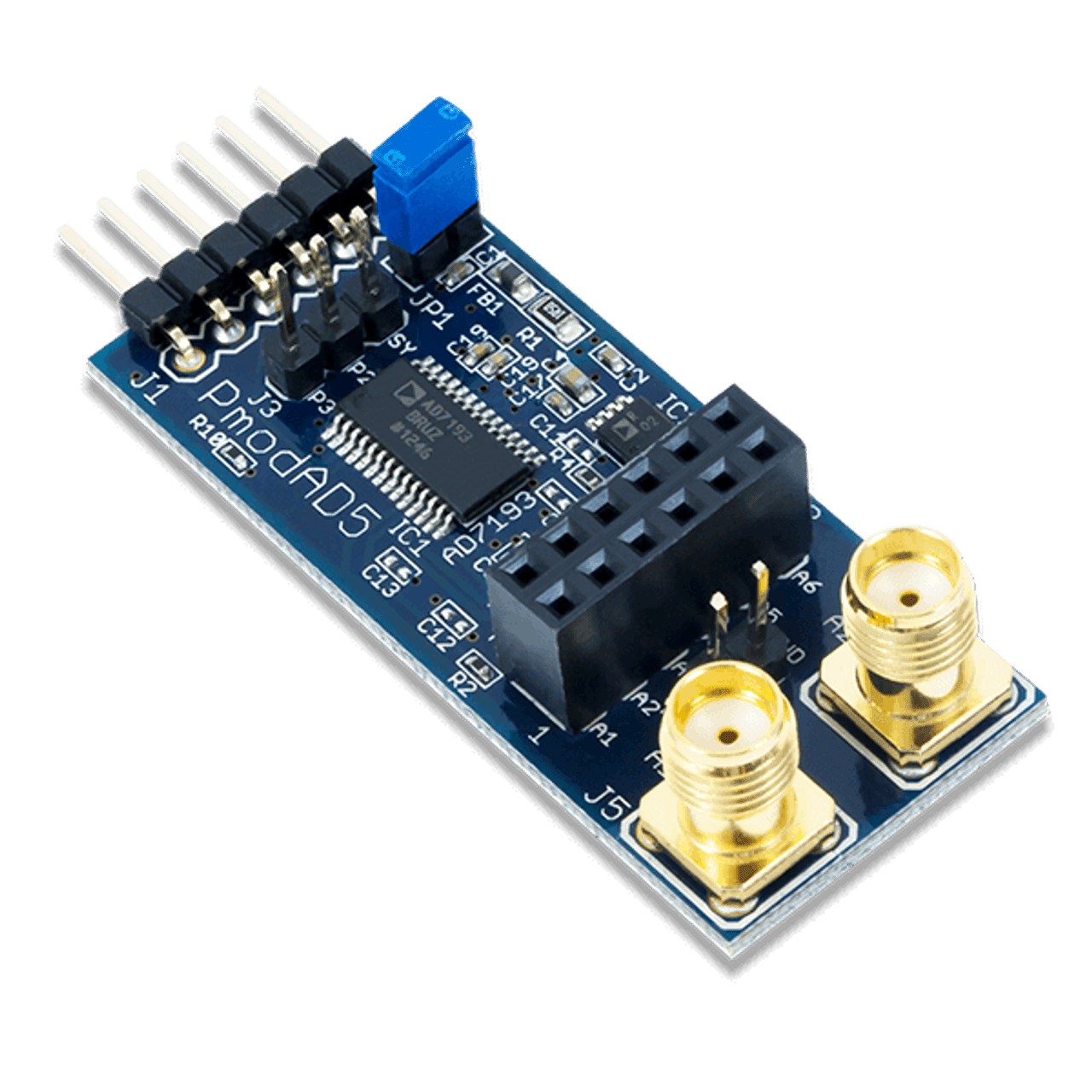

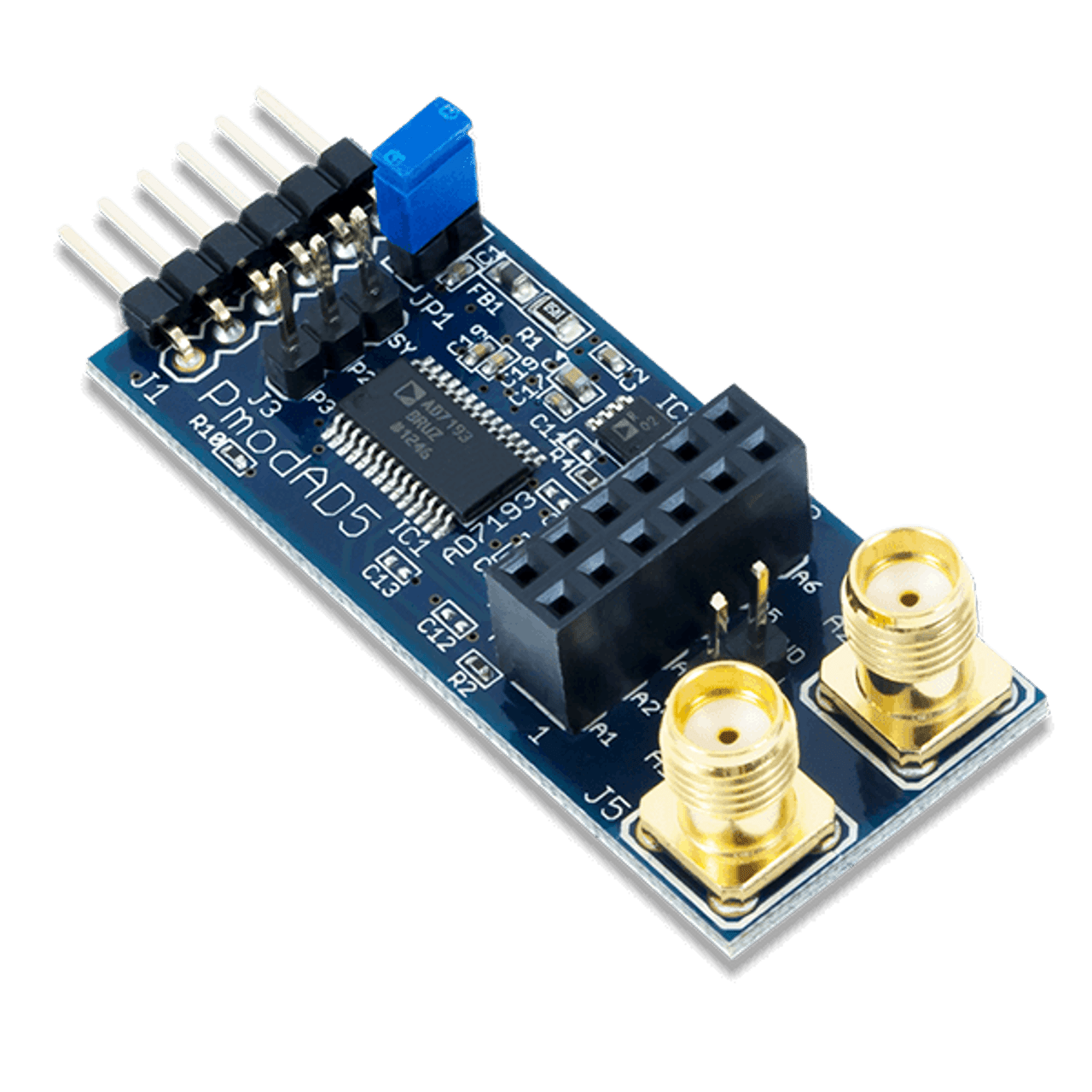

Pmod AD5
4-channel 4.8 kHz 24-bit A/D Converter
The Pmod AD5 is an analog-to-digital converter that utilizes a fourth order sigma-delta modulator, a programmable gain array, and on-chip digital filtering, all powered by the Analog Devices AD7193. With 24 bits of resolution on up to 8 different analog input channels, users may read the highly accurate voltage measurements with an rms noise as low as 11 nV through SPI.
Features
- High precision 24-bit Sigma-Delta analog-to-digital converter
- 4 differential or 8 pseudo-differential input channels
- Ultra-low noise
- Programmable gain (1 to 128)
- Flexible digital filter with fast settling option
- Two SMA connectors
- Small PCB size for flexible designs 1.9" × 0.8” (4.8 cm × 2.0 cm)
- 6-pin Pmod connector with SPI interface
- Follows Digilent Interface Specification Type 2
What's Included
- Pmod AD5
- Custom antistatic Pmod packaging
| Communication Protocol | : | SPI |
