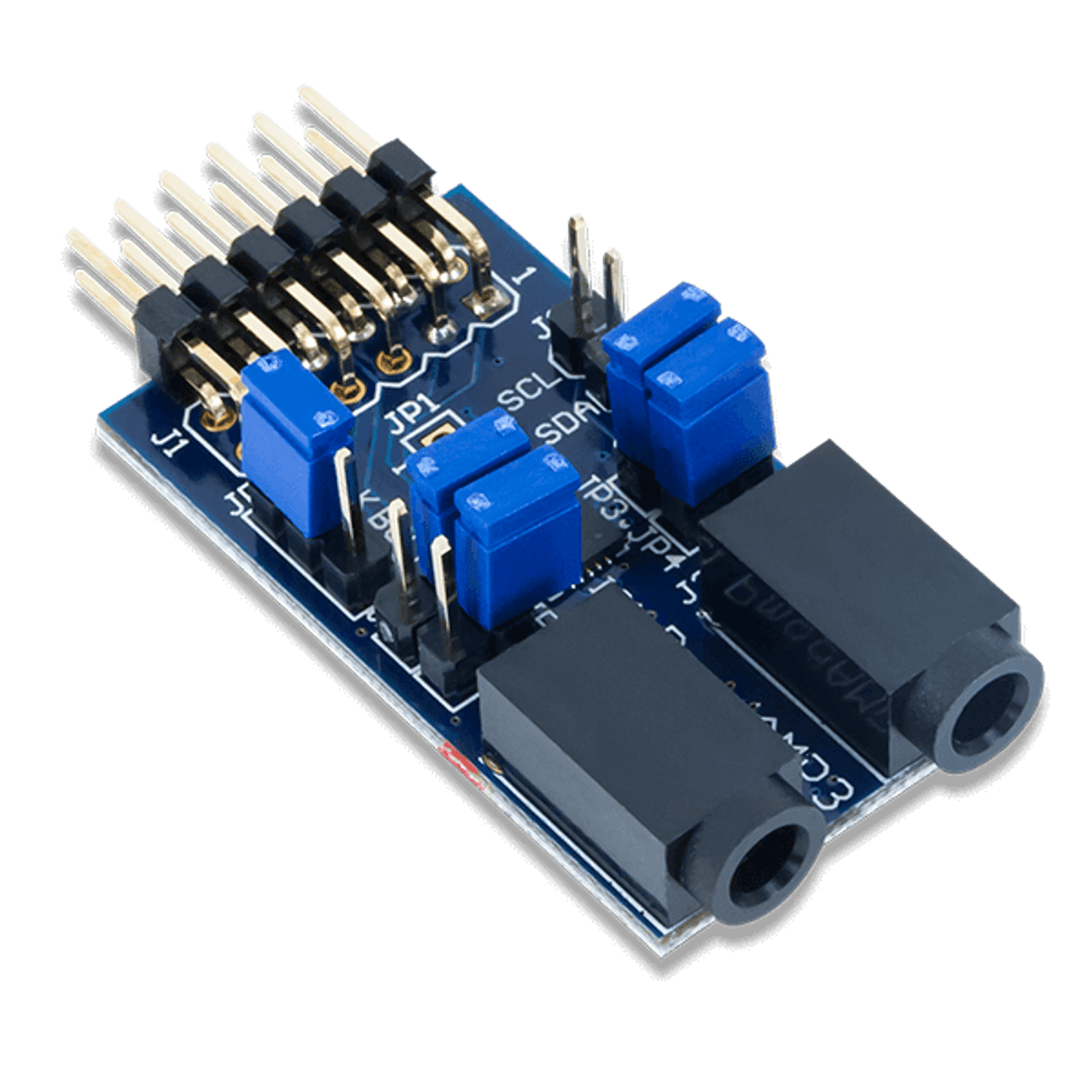

Pmod AMP3: Stereo Power Amplifier
Stok Kodu : 73.04.02.01
936,14 TL
* 101,18 TL den başlayan taksitlerle!
Pmod AMP3
Stereo Power Amplifier
The Pmod AMP3 uses a 2W Class-D audio power amplifier, the Analog Devices SSM2518 . Users are able to provide stereo audio through either I2S or TDM at a variety of sampling frequencies. The I2C interface can be used to configure the digital volume and dynamic range control, although the Pmod may also be used in a stand-alone mode without the I2C interface.
Features
- Audio amplifier with left and right channel separation
- Stereo output via two standard 1/8" (0.32 cm) mono speaker jacks
- Supports common I²S audio formats
- Digitally configurable volume control for each channel
- Dynamic range control
- Stand-alone mode for systems without I²C interface
- Small PCB size for flexible designs 1.5” × 0.8" (3.8 cm × 2.0 cm)
- 12-pin Pmod connector with I²C interface
What's Included
- Pmod AMP3
- Custom antistatic Pmod packaging
| Communication Protocol | : | GPIO, I2C |
