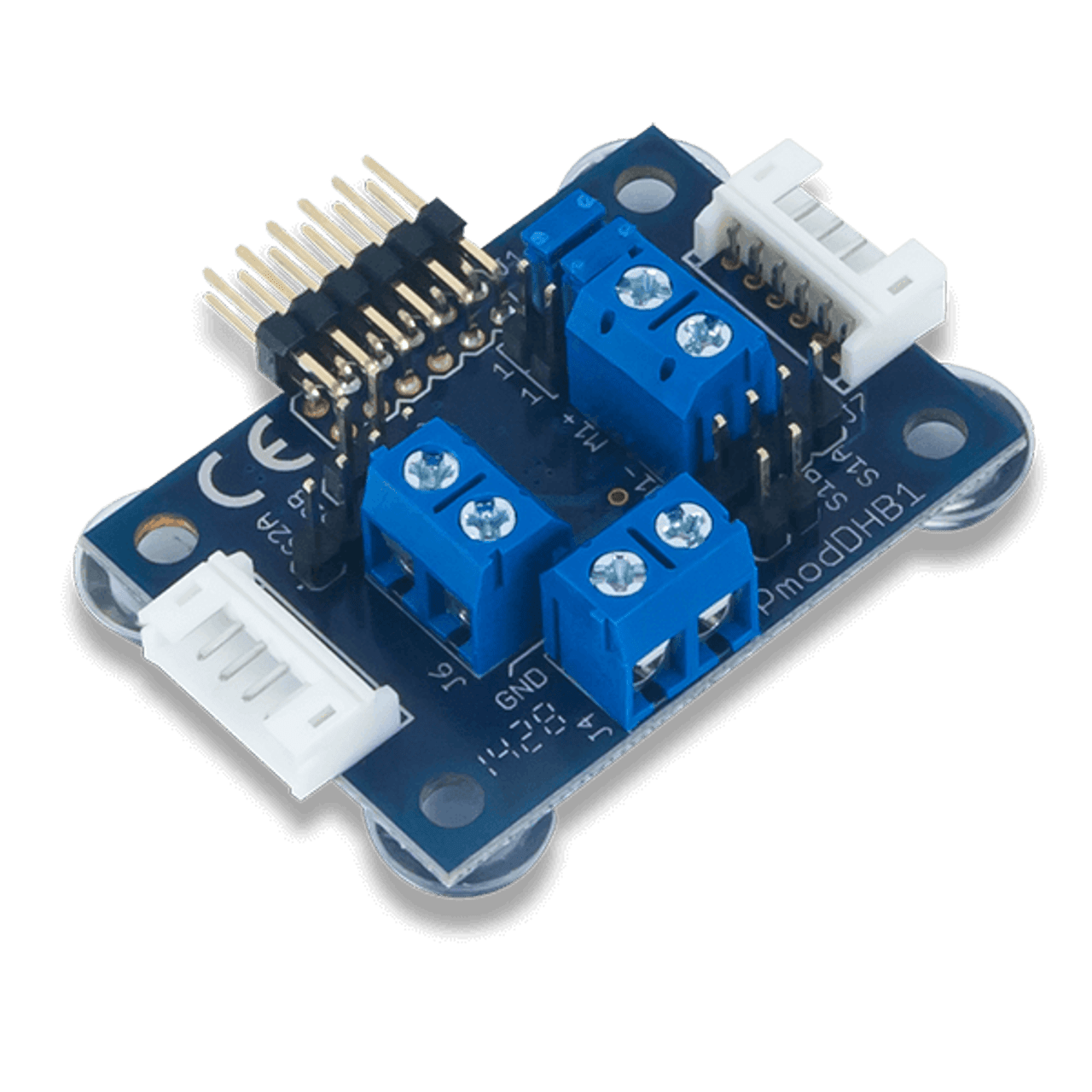

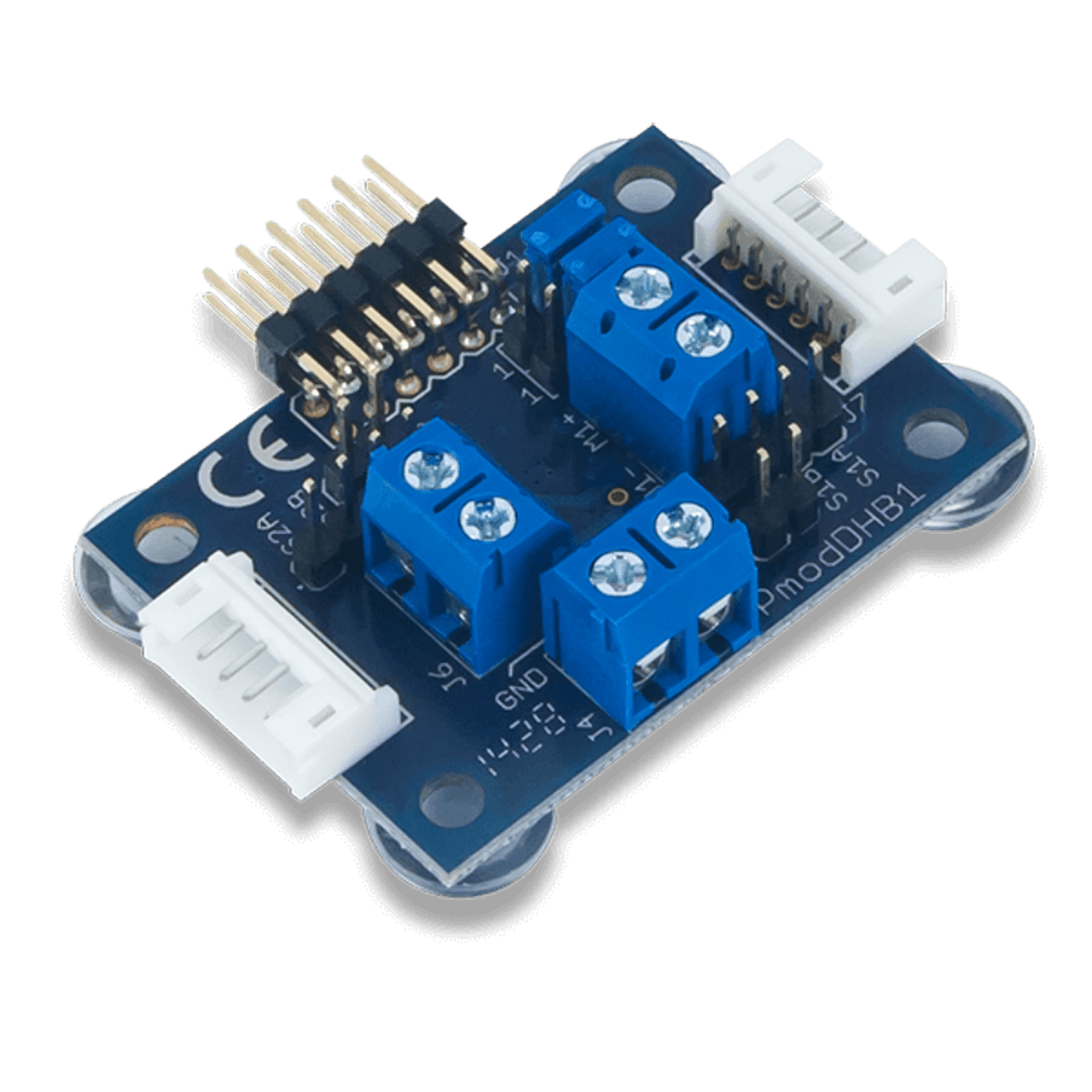

Pmod DHB1: Dual H-bridge
Stok Kodu : 103.04.04.01
591,81 TL
* 63,08 TL den başlayan taksitlerle!
Pmod DHB1
Dual H-bridge
The Pmod DHB1 uses the Texas Instruments® DRV8833 dual H-Bridge motor driver chip to drive two DC motors or a single stepper motor. Each H-Bridge can be driven by GPIO signals.
Features
- Dual H-Bridge capable of 1.5A RMS
- Two quadrature encoder channels for motor feedback
- Two JST 6-pin ports for connection to Digilent motor/gearbox
- Over-current protection
- Recommended 10.8 V max motor voltage
- Logic input voltage range of 2.5 V to 5 V
- Small PCB size for flexible designs 1.3" × 1.8” (3.3 cm × 4.6 cm)
- Follows Digilent Pmod Interface Specification Type 5
What's Included
- Pmod DHB1
- Custom antistatic Pmod packaging
| Communication Protocol | : | GPIO |
