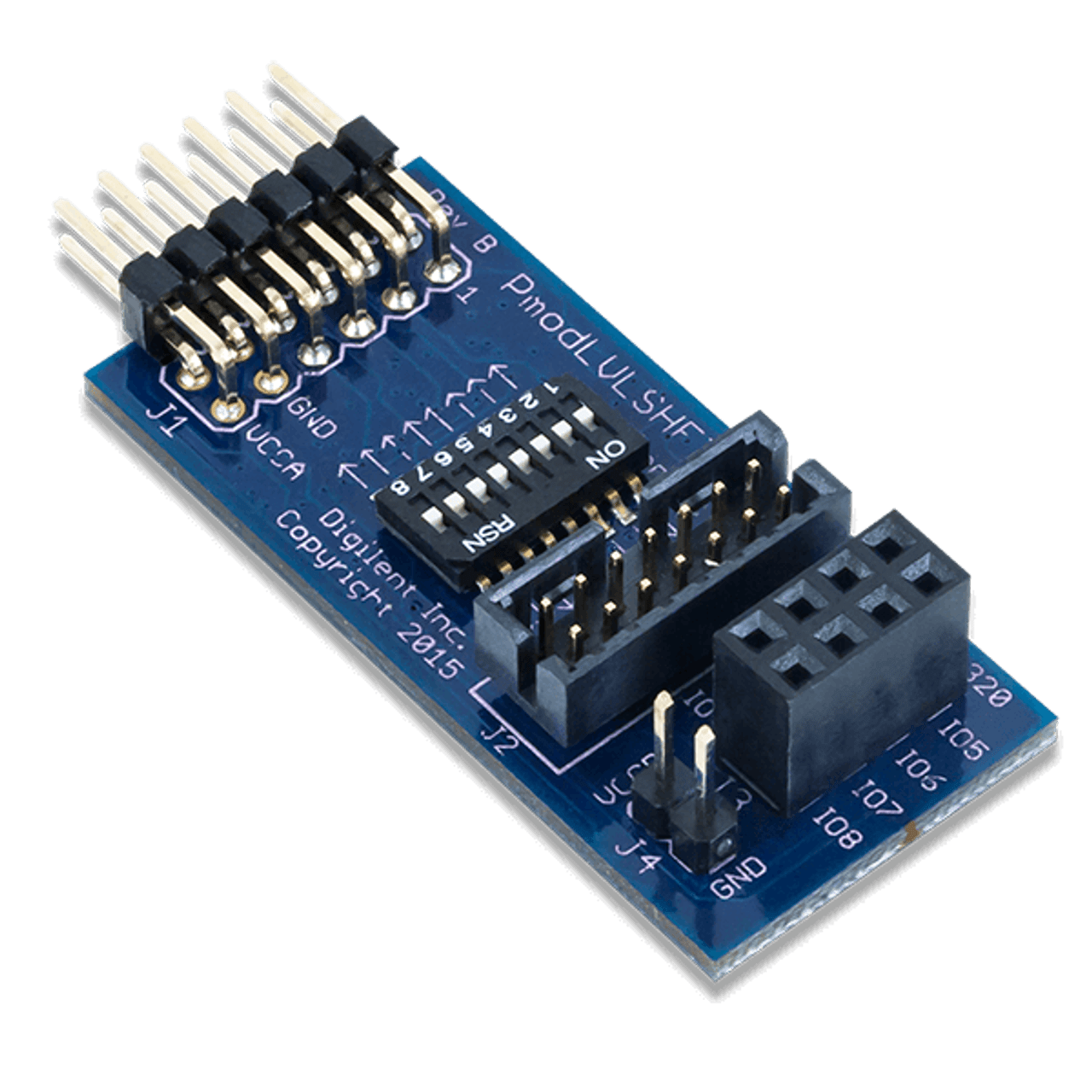

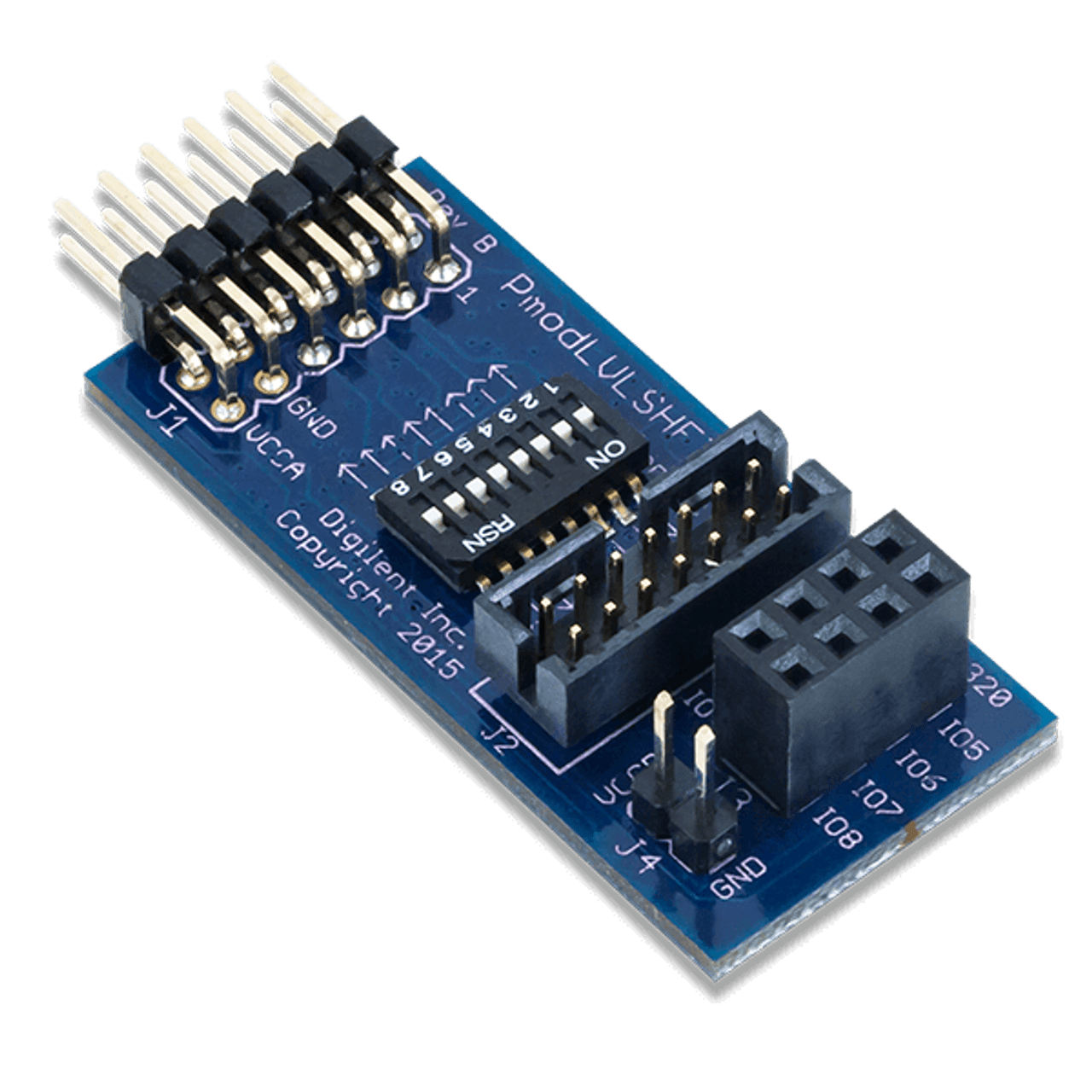

Pmod LVLSHFT
Logic Level Shifter
The Digilent Pmod LVLSHFT is a digital logic level shifter that uses the Texas Instruments SN47LVC1T45 transceiver. This module is ideal for users who want to supply logic signals following a 3.3V CMOS standard but have an alternate logic level output that is used for other applications, such as JTAG programming.
Features
- Digital logic level shifter
- Translate logic signals between two user supplied voltage levels
- 2×7 JTAG header
- 8 miniature switches to dictate logic level conversion
- Voltage range between 1.8V and 5.5V
- Small PCB size for flexible designs: 1.8 in × 0.8 in (4.6 cm × 2.0 cm)
- 12-pin Pmod connector with GPIO interface
What's Included
- Pmod LVLSHFT
- Custom antistatic Pmod packaging
v
| Communication Protocol | : | GPIO |
