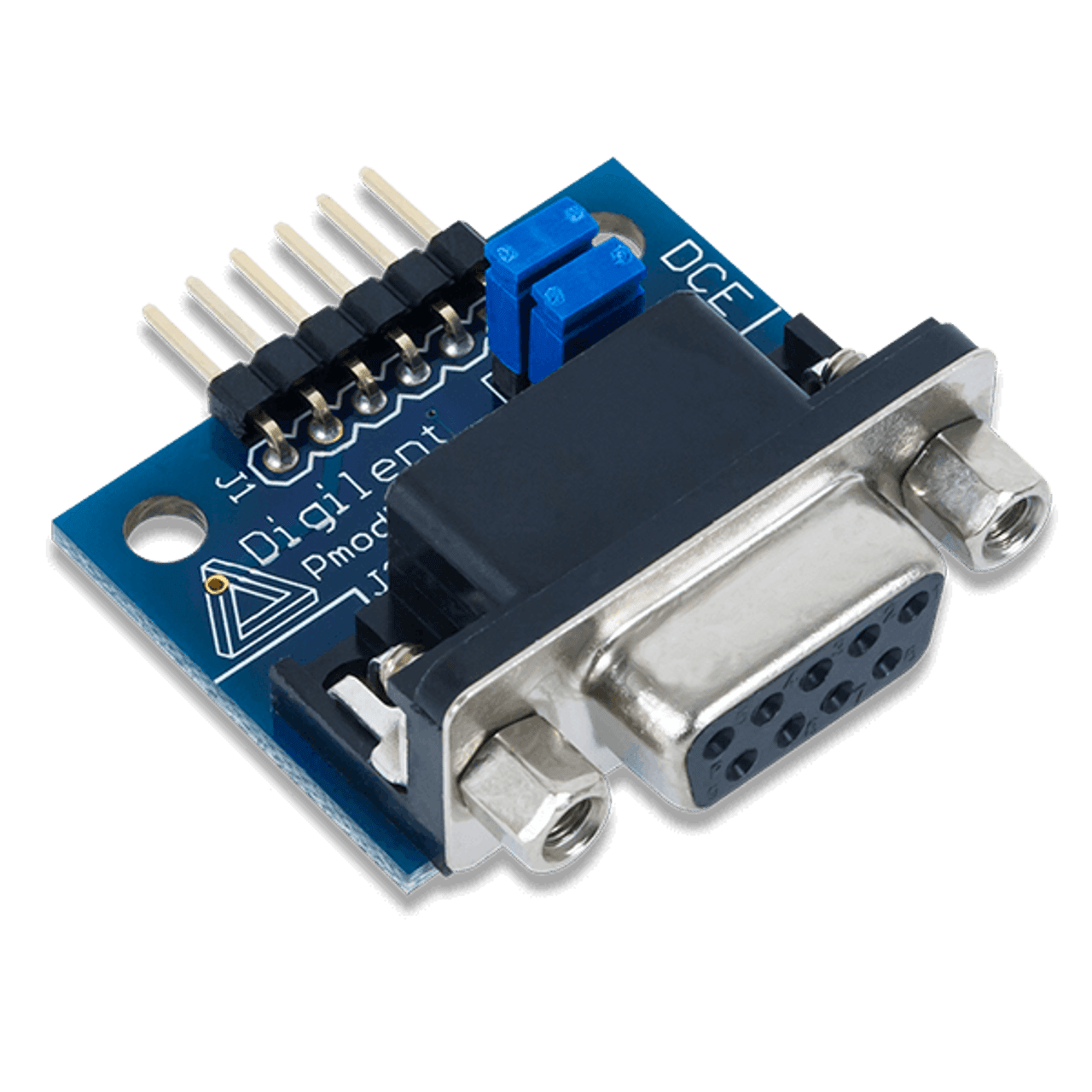

Pmod RS232: Serial Converter and Interface Standard
Stok Kodu : 73.03.04.01
734,02 TL
* 79,34 TL den başlayan taksitlerle!

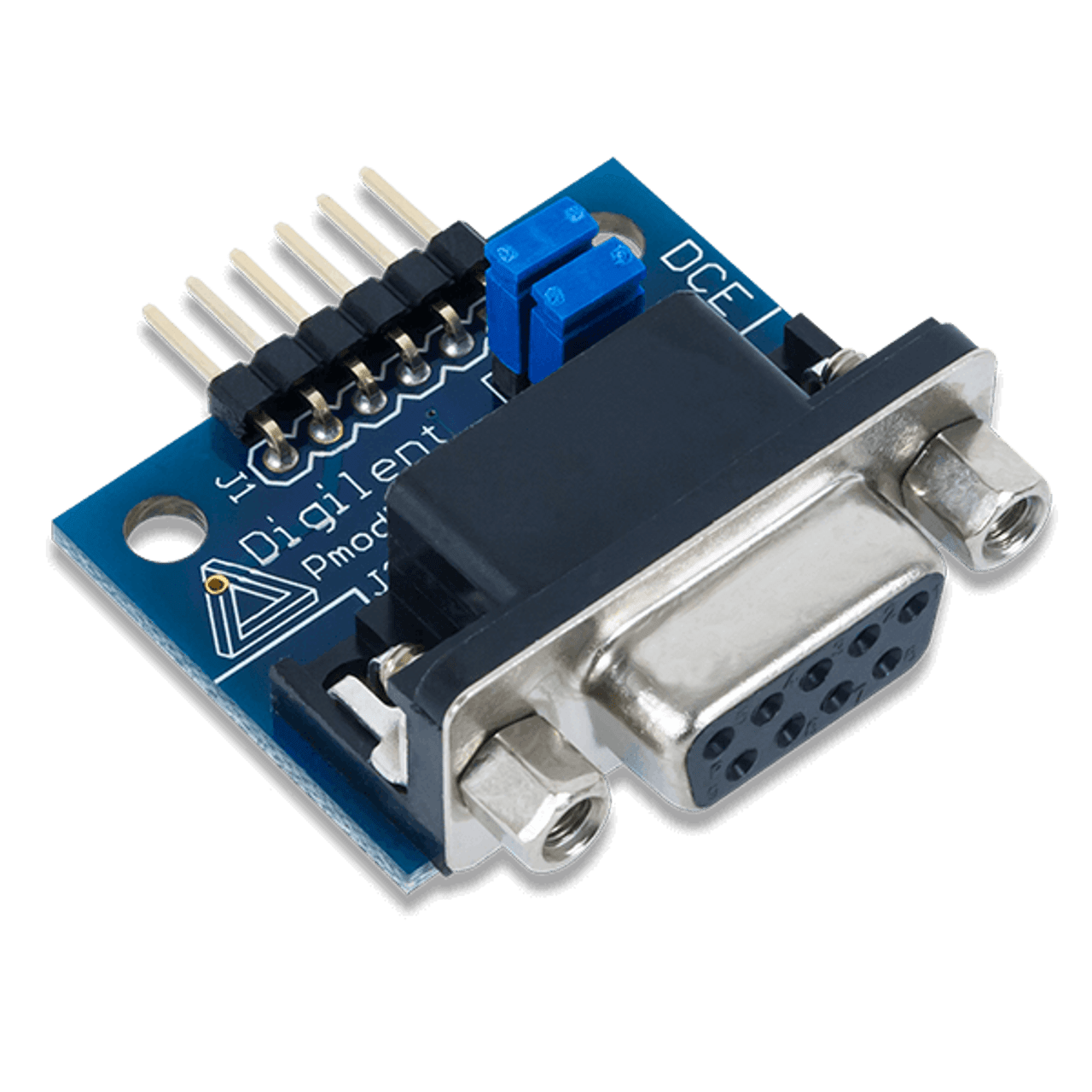

Pmod RS232
Serial Converter and Interface Standard
The Digilent Pmod RS232 converts between digital logic voltage levels to RS232 voltage levels using the Maxim Integrated MAX3232 transceiver. The RS232 module is configured as a data communications equipment (DCE) device. It connects to data terminal equipment (DTE) devices, such as the serial port on a PC, using a straight-through cable.
Features
- Maxim Integrated MAX3232 RS232 transceiver
- Standard RS232 DB9 connector
- Optional RTS and CTS handshaking functions
- Small PCB size for flexible designs 1.0" × 1.3” (2.5 cm × 3.3 cm)
- 6-pin Pmod connector with UART interface
- Follows Digilent Pmod Interface Specification Type 3
- Example code available in resource center
What's Included
- Pmod RS232
- Custom antistatic Pmod packaging
| Communication Protocol | : | UART |
