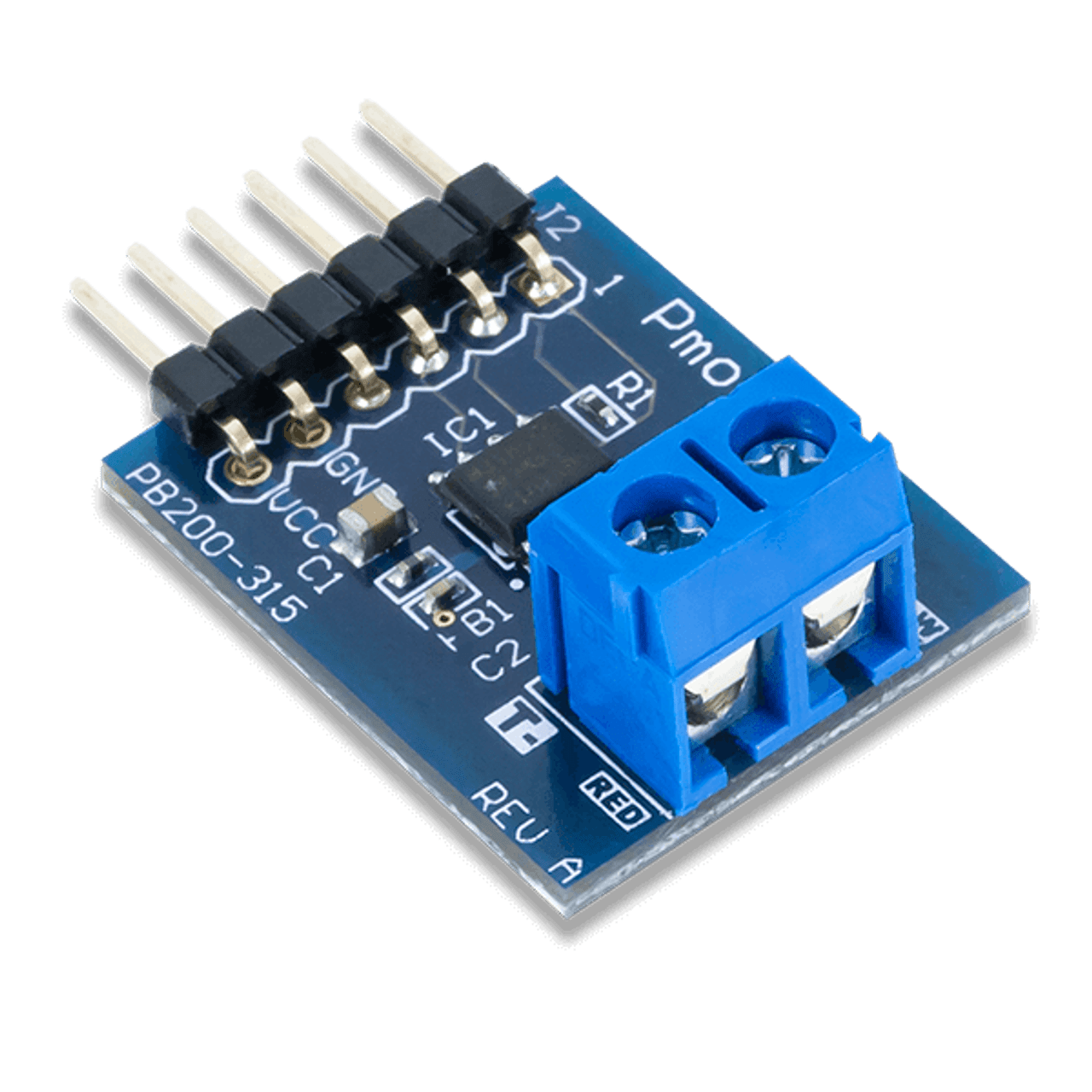

Pmod TC1
K-Type Thermocouple Module with Wire
The Digilent Pmod TC1 is a cold-junction thermocouple-to-digital converter module designed for a classic K-Type thermocouple wire. With Maxim Integrated MAX31855, this module reports the measured temperature in 14-bits with 0.25°C resolution.
Features
- K-type thermocouple-to-digital converter
- Wide temperature range of -73°C to 482°C with provided wire
- ±2°C accuracy from -200°C to 700°C
- 14-bit with 0.25°C resolution
- Cold-junction temperature compensation
- Small PCB size for flexible designs 1.0 in × 0.8 in (2.5 cm × 2.0 cm)
- 6-pin Pmod connector with SPI interface
- Follows Digilent Pmod Interface Specification Type 2
- Library and example code available in resource center
What's Included
- Pmod TC1
- Custom antistatic Pmod packaging
- 30cm of K-type thermocouple wire with 482 °C rated insulation
| Communication Protocol | : | SPI |
