Pmod TMP2: Temperature Sensor
Stok Kodu : 73.06.01.04
724,50 TL
* 77,88 TL den başlayan taksitlerle!

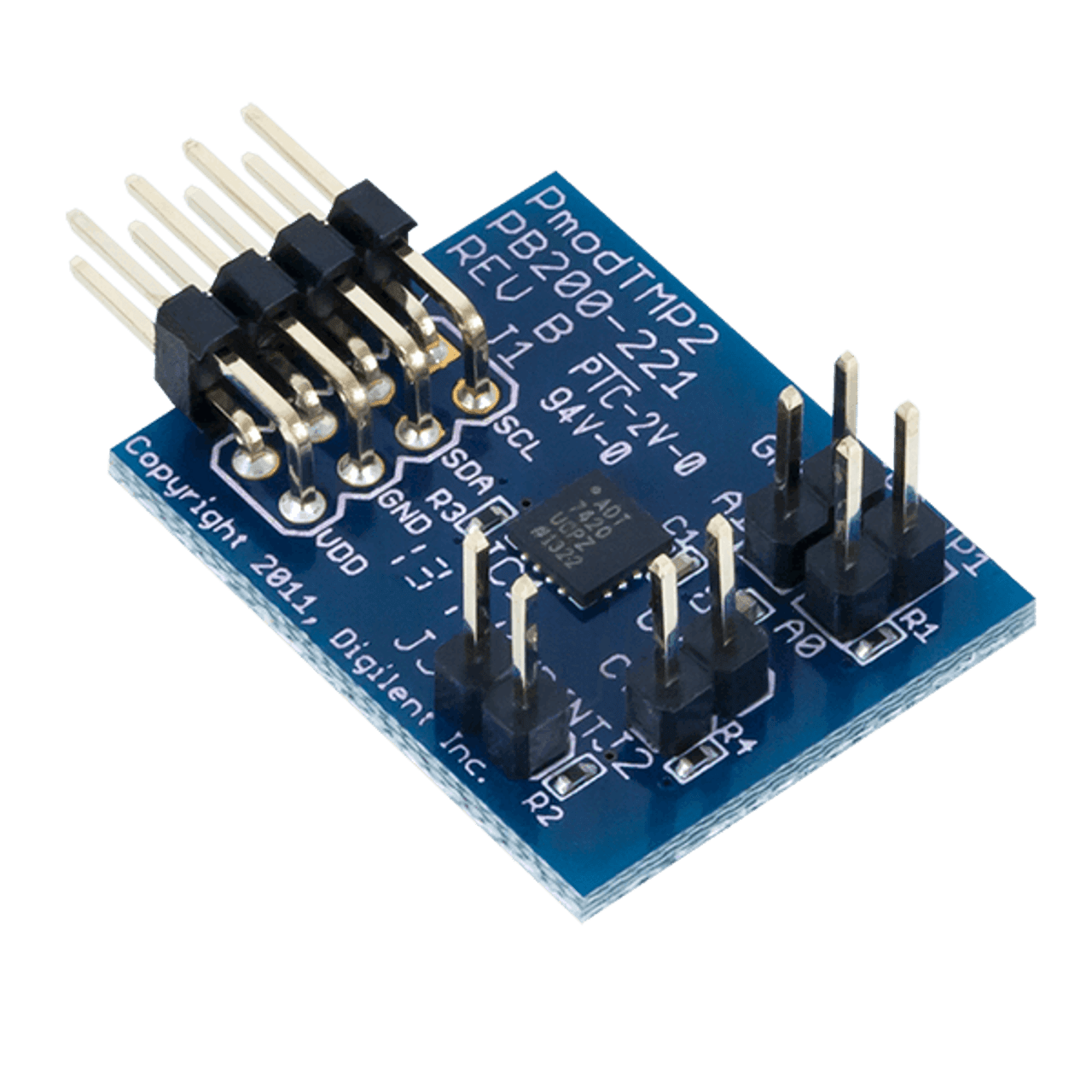

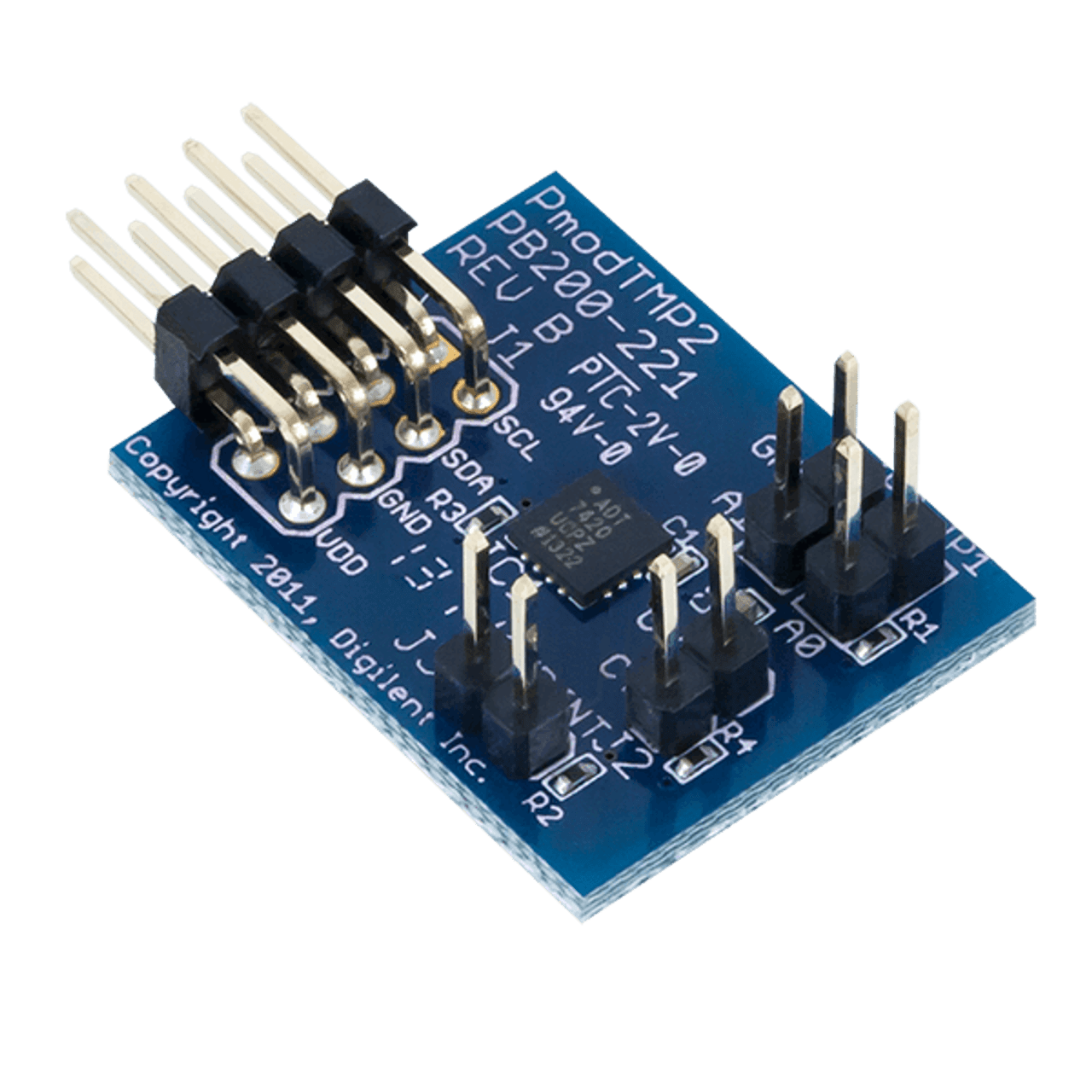

Pmod TMP2
Temperature Sensor
The Pmod TMP2 is an ambient temperature sensor powered by the Analog Devices® ADT7420. Through the I2C interface, users may appreciate a resolution of 0.0078°C through 16 bits of data.
Features
- 16-bit ambient temperature sensor
- Typical accuracy better than 0.25ºC
- 240 ms continuous conversion time
- Programmable over and under-temperature control pins
- No calibration required
- Small PCB size for flexible designs: 1.0 in × 0.8 in (2.5 cm × 2.0 cm)
- 2×4-pin connector with I2C interface
- Follows Digilent Pmod Interface Specification
- Library and example code available in resource center
What's Included
- Pmod TMP2
- Custom antistatic Pmod packaging
| Communication Protocol | : | I2C |
