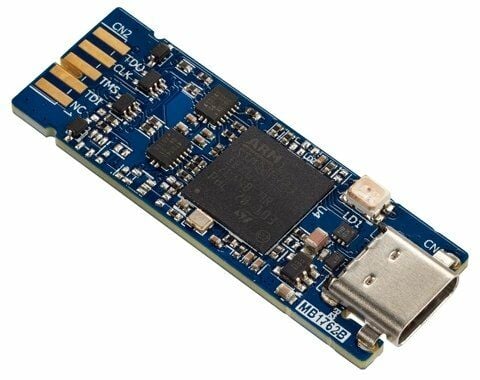

ST-LINK V3 MiniE Compact STM32 - Debugger, Programmer
Stok Kodu : 103.05.04
723,38 TL
* 78,19 TL den başlayan taksitlerle!
STLINK-V3MINIE
compact in-circuit debugger and programmer for STM32
All features
- Tiny 15 mm × 42 mm standalone debugging and programming probe for STM32 microcontrollers
- Self‑powered through a USB Type-C® connector
- USB 2.0 high-speed interface
- Probe firmware update through USB
- Optional drag‑and‑drop Flash memory programming of binary files
- Communication bi-color LED
- JTAG communication support up to 21 MHz
- SWD (Serial Wire Debug) and SWV (Serial Wire Viewer) communication support up to 24 MHz
- Virtual COM port (VCP) up to 15 Mbps
- 1.65 to 3.60 V application voltage support
- Board connectors:
USB Type-C 1.27 mm pitch STDC14 debug connector with STDC14 to STDC14 flat cable 2.0 mm pitch on-board pads for BTB (Board-to-board) card edge connector
| Programlayıcı Türü | : | STM32 |
