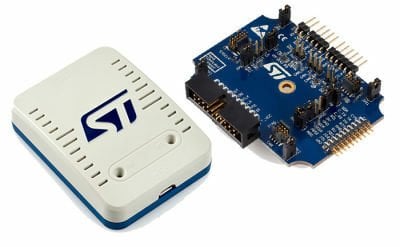

ST-LINK V3SET Debugger Programmer
Stok Kodu : 157.05
1.974,00 TL
* 210,41 TL den başlayan taksitlerle!
STLINK-V3SET
modular in-circuit debugger and programmer for STM32/STM8
All features
- Stand-alone probe with modular extensions
- Self-powered through a USB connector (Micro-B)
- USB 2.0 high-speed compatible interface
- Direct firmware update support (DFU)
- JTAG / serial wire debugging (SWD) specific features:
- 3 to 3.6 V application voltage support and 5 V tolerant inputs
- Flat cables STDC14 to MIPI10 / STDC14 / MIPI20 (connectors with 1.27 mm pitch)
- JTAG communication support
- SWD and serial wire viewer (SWV) communication support
- SWIM specific features (only available with adapter board MB1440):
- 1.65 to 5.5 V application voltage support
- SWIM header (2.54 mm pitch)
- SWIM low-speed and high-speed modes support
- Virtual COM port (VCP) specific features:
- 3 to 3.6 V application voltage support on the UART interface and 5 V tolerant inputs
- VCP frequency up to 15 MHz
- Available on STDC14 debug connector (not available on MIPI10)
- Multi-path bridge USB to SPI/UART/I2C/CAN/GPIOs specific features:
- 3 to 3.6 V application voltage support and 5 V tolerant inputs
- Signals available on adapter board only (MB1440)
- Drag-and-drop flash programming of binary files
- Two-color LEDs: communication, power
| Programlayıcı Türü | : | STM32 |
