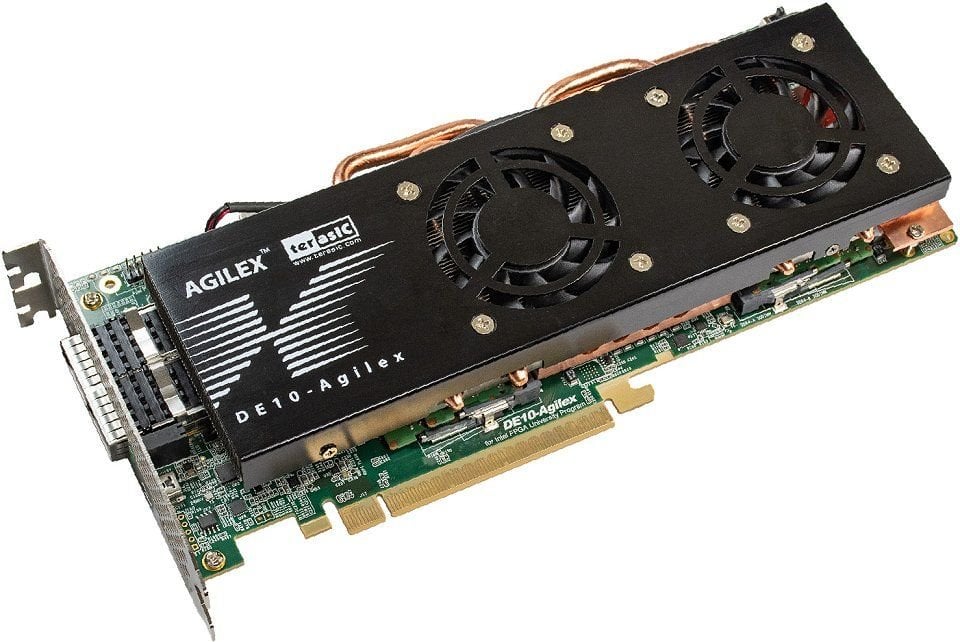

Terasic DE10-Agilex Development Kit
Terasic DE10-Agilex Development Kit
(P/N:P0493)
Targeting the compute and acceleration needs from the edge to the core to the cloud, Terasic’s DE10-Agilex accelerator is purpose-designed to meet the ever-increasing demands for acceleration, compute, and fast data movement.
The DE10-Agilex is based on the powerful Intel® Agilex™ FPGA to obtain speed and power breakthrough, with 40% higher performance, 40% lower power for equivalent performance. The accelerator includes PCI Express Gen 4.0 x16, two 200G QSFP-DD connectors and offers 32GB of DDR4 up to 680Gbps bandwidth to provide adaptable acceleration, maximum throughput and highly customizable processing of data for compute intensive applications.
The DE10-Agilex fully supports Intel® OpenCL™ BSP and Intel® oneAPI Toolkits to provide optimal Computer Vision and Deep Learning solutions. Our clients' systems can achieve highest computing performance and lowest cost for their Data Center and AI applications by leveraging the Agilex® FPGA on DE10-Agilex accelerator.
Specification
FPGA
- Intel® Agilex™ FPGA AGFB014R24B2E2V (FPGA with higher core speed is available, please contact Sales Team at sales@terasic.com for details.)
FPGA Configuration
- On-Board USB Blaster II or JTAG header for FPGA programming
- Avalon-ST (AVST x16) configuration via MAX 10 and CFI flash memory
Memory
- 128MB FLASH
- Total 32GB DDR4 SODIMM with ECC. (Total up to 128GB)
Communication and Expansion
- Two QSFPDD connectors for 200/100/40/25/10 GbE network interface
- PCI Express Gen4 x16 edge connector (includes PCIe drivers)
- 2x5 Timing expansion header
- UART headers
Others
- General user input / output:
- 8 LEDs
- 2 push-buttons
- 2 slide switches
- U.FL clock input / output
- On-Board Clock
- 50MHz Oscillator
- Programmable Clock Generator ±5 ppb, 30.72MHz, OCXO ClocK (DNI)
- System Monitor and Control
- Temperature sensor
- Power Monitor
- Auto Fan control
- Auto Shutdown Control
- Power In
- PCI Express 2x4 power connector for 12V DC Input
- PCI Express edge connector power
- Mechanical Specification
- PCI Express standard height and 3/4-length
Block Diagram of the DE10-Agilex Development Kit
DE10-Agilex Development Kit Top-view
DE10-Agilex Development Kit Bottom-view
Package Include
- DE10-Agilex Development Kit
- DDR4 ECC SO-DIMM Module x4 (Installed)
- PCIe Bracket (Installed)
- Air Cooler (Installed)
- Power Supply & Power Cable
- AC Power Cord
- USB to Mini USB Cable
- Screw & Copper Pillar Package
- DE10-Agilex Quick Start Guide
Documents
CD-ROM
DE10-Agilex (revC) OpenCL BSP for Intel OpenCL 21.2
| Title | Version | Size | Date | Download |
|---|---|---|---|---|
| DE10-Agilex (revC) OpenCL BSP User Manual | 4,879(KB) | 2022-04-28 | ||
| DE10-Agilex (revC) OpenCL BSP for Linux | 2022-04-28 | |||
| DE10-Agilex (revC) OpenCL BSP for Windows | 2022-04-28 |
OneAPI BSP
More resources about IP and Dev. Kit are available on Intel User Forums.
