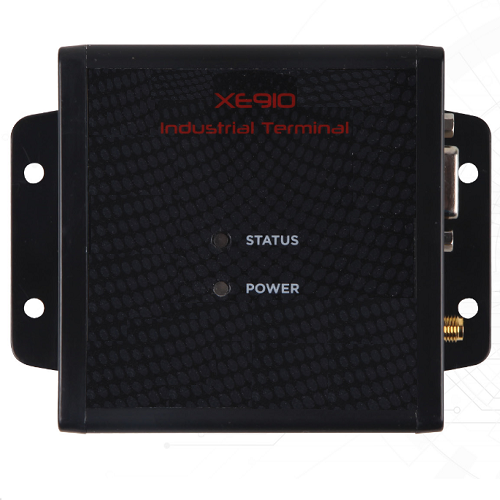

XE910-4G GSM/GPRS Terminal
Stok Kodu : XE910-4G
4.042,44 TL
* 436,92 TL den başlayan taksitlerle!
XE910-4G GSM/GPRS Terminal
Interfaces
- Power Socket (PWR, GND, RESET)
- D-Type 9-Pin RS232 Connector
- (RS-232 transceivers with integrated ESD protection)
- Mini USB Connector (ESD protection for USB 2.0 interfaces)
- 2×4 GPIO Socket
- RS485 – Transceiver with AutoDirection Control
- 2 Output (Relay Driver Max 12V @ 150mA)
- 2 Input (Optical isolator 9-24V DC)
- 1 Analog Input (0-5V DC)
- Cellular Antenna Connector (SMA-F 50Ohm)
- Rx Diversity Antenna Connector (SMA-F 50Ohm)
- On board Push-Push Sim Card Holder
- 2 operating status LED’s
- Power / Status
Electrical & Sensitivity
- Supply voltage: 9–35VDC @ 1.2A min
- Battery: Li-Ion 3.7V 960mAh (Optional)
- Output power
- Class 4 (2 W, 33 dBm) @ GSM 850/900
- Class 1 (1 W, 30 dBm) @ GSM 1800/1900
- Class E2 (0.5 W, 27 dBm)@ EDGE 850/900
- Class E2 (0.4 W, 26 dBm)@ EDGE 1800/1900
- Class 3 (0.25 W, 24 dBm) @ UMTS
- Class 3 (0.2 W, 23 dBm) @ LTE
- Cellular Sensitivity
- 111 dBm @ UMTS
- 109 dBm @ GSM 850/900 MHz
- 110 dBm @ DCS1800/PCS1900 MHz
Cellular Features
- 4G bands (MHz) B1(2100),B3(1800),B7(2600),B8(900),B20(800)
- 3G bands (MHz) B2(2100),B8(900)
- 2G bands (MHz) B3(1800),B8(900)
- LTE FDD Cat.4, 3GPP release 9 compliant
- SIM application Tool Kit 3GPP TS 51.014
- Serial port multiplexer 3GPP TS27.010
- SMS over IMS
- Builtin UDP/TCP/FTP/SMTP stack
- Control via AT commands according to
3GPP TS27.005, 27.007 and customized
Telit AT commands - Rx Diversity and MIMO DL 2×2
- Voice and SMS
- Standard and extended AT command set
- IP stack with TCP and UDP protocol
Software
- AppZone application resources
- Programming language: C
- IDE: Eclipse
- Dedicated File System: 5 MB
- Separate App. RAM Space: 2 MB
Data
- LTE
- Uplink up to 5 Mbps
- Downlink up to 10 Mbps HSPA+
Mechanical / Environmental
- Dimensions 85 x 80 x 30 mm
- Weight: 140 grams (with battery)
- Extended temperature range: -40°C to +85°C (Operational)
