Xeltek SuperPro 6100N
Xeltek SuperPro 6100N

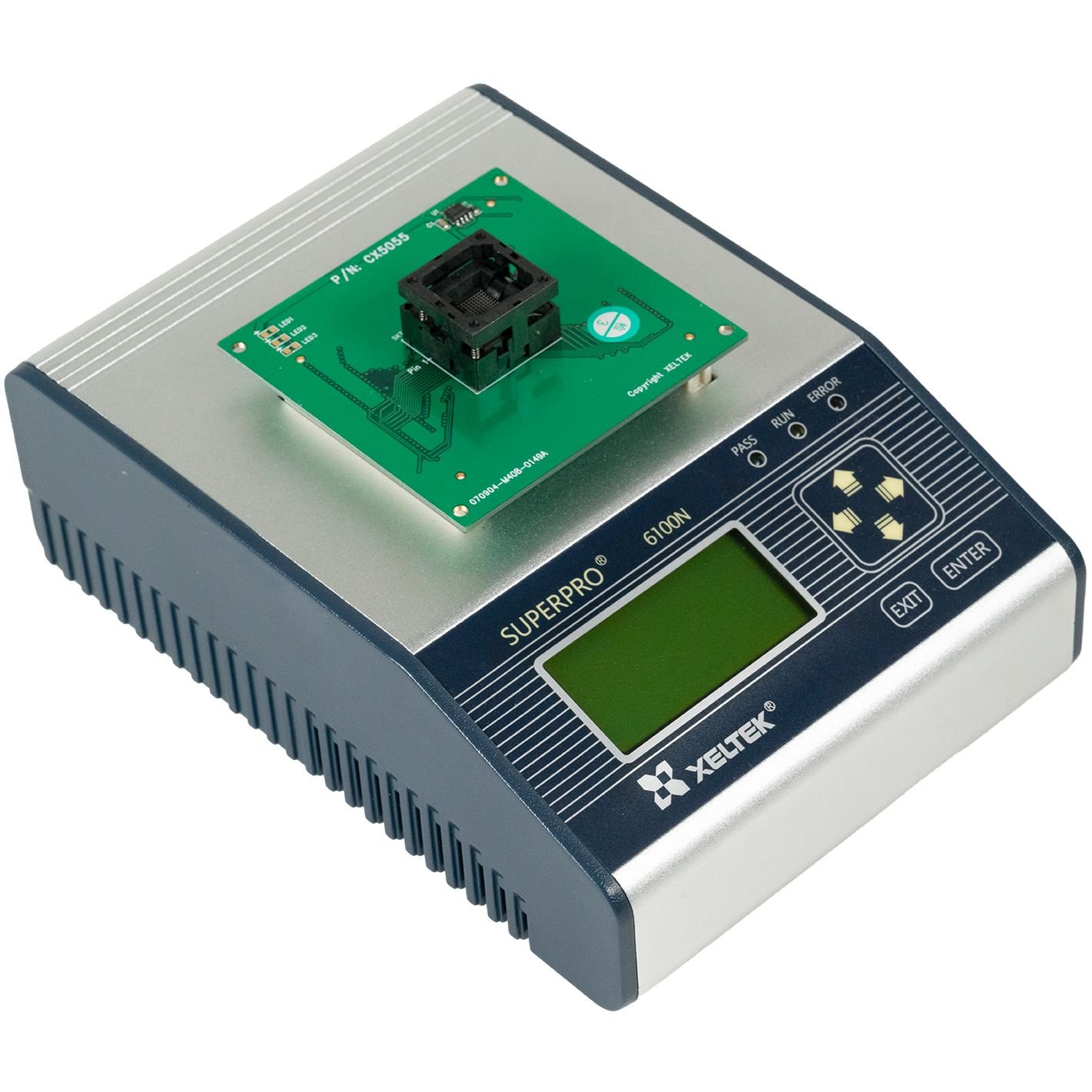

Ultra-Fast Universal Programmer
- Built-in 144 pin driver
- 103,000+ devices supported from nearly 400 IC manufacturers
- Operates in PC hosted and stand-alone modes
- Supports devices including EEPROM, MCU, and others
- USB interfaced ultra-fast 144 pin stand-alone universal programmer
- Great for reworks, master chip duplication, and chip testing
Ultra-High Speed Stand-Alone Universal Device Programmer with Highest Device Support in the Industry
SuperPro 6100N is a cost-effective, reliable, and high-speed universal chip programmer. It is designed to communicate using USB 2.0 port for development requirement and can also work in standalone mode (without connecting to a PC) for production requirement. It has the largest device support count in the programming industry with 144 pin drivers to support high pin count chips.
Application and target customers: Programming houses, electronic repair, car repair shops, forensic and data recovery companies, medical devices, requirement for larger device support.
Certificates
What's in the box
SuperPro 6100N comes with
- AC Adapter
- USB Cable
- Quick Start Guide
Optional Accessories
- Socket adapters in various packages
- CF Card for stand-alone operation
- ISP Header for serial programming
Ultra Fast Programming Speed SuperPro 6100N is designed with high programming speed in mind. Our semiconductor manufacturer approved algorithms, precision and clean signals guarantee high programming yield. Special design was made to eliminate overshoot and ground bounce. Algorithms are performed with state machine architecture constructed with FPGA to achieve a ultra-high programming speed.
Largest Device Support Located in Silicon Valley, we keep good relationships with many major IC companies that are important for us to continuously support new devices. SuperPro 6100N currently supports more than 100,000 devices, which is the largest device library in the programming industry. New devices can be added within a week - average lead time from other manufacturers is over two months.
Project Files The project file stores preparations before programming. Users could also restore and save work environment. The project file includes device type, buffer data, operation option settings, configuration bit settings and batch commands. Project files may be password protected to increase security and reliability when operated by untrained operators.
Auto Function The Auto function organizes different functions into a sequential group (erase, blank check, program, verify and protect). Functions are executed in sequential order similar to a batch command.
Production Mode Once a chip is inserted correctly, the programmer automatically starts batch command of erase, blank check, program and verify. Auto chip detection saves time and increases efficiency.
Production Statistics A log file could be used to save operation information before exiting the program. Log files can also be used to facilitate quality tracking.
Factory Mode This mode is designed for factory volume production. To prevent operation errors from destroying chips and wrong data written to the chip, SuperPro will operate in Auto function mode. The administrator can set a password to prevent unauthorized access to the system.
Auto Recognition of File Types We support almost all kinds of known file formats including file formats with automatic recognition functions: Binary, Intel (linear & segmented) Hex, Motorola S, Tektronix (linear & segmented), JEDEC, POF, etc.
Auto Increment of Serial Numbers Auto-generation of electronic serial numbers is available on SuperPro 6100N. This feature is implemented by Option. Auto Increment allows users to add unique serial numbers into the device. After each successful programming, the software automatically changes the value by the specified increment mode.
Intellectual Property Protection Password settings available in both PC and stand-alone mode.
Hardware And Electrical Specifications
|
Devices supported |
EPROM, Paged EPROM, Parallel and Serial EEPROM, FPGA Configuration PROM, FLASH memory (NOR), BPROM, NVRAM, SPLD, CPLD, EPLD, Firmware HUB, Microcontroller, MCU |
|
|
Package Types Supported |
DIP, SDIP, PLCC, JLCC, PGA, LGA, SOIC, SOJ, SOT, QFP, TQFP, PQFP, VQFP, MQFP, LQFP, TSOP, SOP, TSOPII, PSOP, SSOP, TSSOP, SON, EBGA, FBGA, FTBGA, VFBGA, μBGA, CSP, SCSP, QFN, HVQFN etc. |
|
|
PC interface |
USB 2.0 Windows: 8, 9, 10, 11 | 32/64Bits |
|
|
Power supply |
AC Adapter: Input AC 100V- 240V; Output: 12V/1.5A |
|
|
Dimensions |
Main unit: 148(L) x 216(W) x 94(H) mm |
Package: 301(L) x 252(W) x 145(H) mm |
|
Weight |
Main unit: Weight 3.5 lbs (1.6 Kg) |
Package: Weight 6.2 lbs (2.8Kg) |
Expanded Features
- Operate multiple units to construct a concurrent multi-programming system. 1-15 units for flexible volume production.
- Support devices with Vcc from 1.2V - 5V.
- Support files up to 256 GB
- Over-current and over-voltage protection for safety of the chip and programmer hardware
- Only IC manufacturer approved programming algorithms used for high reliability.
- Vcc verification (at +5% ~ 5% and +10% ~ 10%) enhances programming reliability.
