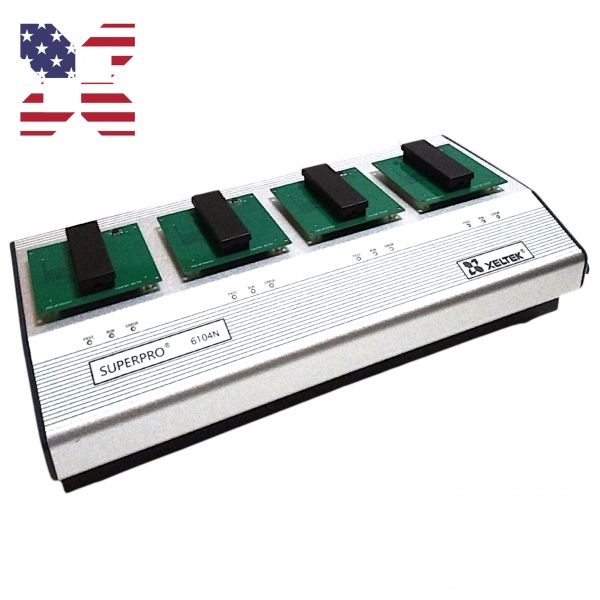

Xeltek SuperPro 6104NGP
Xeltek SuperPro 6104NGP
Ultra-high Speed Universal Gang Programmer
- 4 independent programming modules operating concurrently for high speed programming
- Supports NAND / eMMC devices up to 256 GB
- Built-in 144 universal pin drivers
- Comes with free device updates within the warranty period
- Powerful ARM9 programming processor
Ultra High-Speed Universal Gang Programmer with Highest Device Support in the Industry
SuperPro 6104NGP is a cost-effective, reliable, and high-speed 4-gang universal chip programmer. It is designed to communicate using USB 2.0 for development requirements. It has the largest device support count in the programming industry with 144 pin drivers to support high pin count chips.
Application and target customers: Programming houses, electronic repair, car repair ships, forensic and data recovery companies, medical devices, requirement for larger device support.
Certificates
What's in the box
SuperPro 6104NGP comes with
- 4 DX0001 DIP socket Adapters
- USB Cable
- AC Adapter
Optional Accessories
- Socket adapters in various packages
Ultra Fast Programming Speed SuperPro 6104NGP is designed with high programming speed in mind. Our semiconductor manufacturer approved algorithms, precision and clean signals guarantee high programming yield. Special design was made to eliminate overshoot and ground bounce. Algorithms are performed with state machine architecture constructed with FPGA to achieve a ultra-high programming speed.
Largest Device Support Located in Silicon Valley, we keep good relationships with many major IC companies that are important for us to continuously support new devices. SuperPro 6104NGP currently supports more than 99,800 devices, which is the largest device library in the programming industry. New devices can be added within a week - average lead time from other manufacturers is over two months.
Project Files: The project file stores preparations before programming. Users could also restore and save work environment. The project file includes device type, buffer data, operation option settings, configuration bit settings and batch commands. Project files may be password protected to increase security and reliability when operated by untrained operators.
Auto Function: The Auto function organizes different functions into a sequential group (erase, blank check, program, verify and protect). Functions are executed in sequential order similar to a batch command.
Production Mode: Once a chip is inserted correctly, the programmer automatically starts batch command of erase, blank check, program and verify. Auto chip detection saves time and increases efficiency.
Production Statistics: A log file could be used to save operation information before exiting the program. Log files can also be used to facilitate quality tracking.
Factory Mode: This mode is designed for factory volume production. To prevent operation errors from destroying chips and wrong data written to the chip, SuperPro will operate in the Auto function mode. The administrator can set a password to prevent unauthorized access to the system.
Auto Recognition of File Types: We support almost all kinds of known file formats including file formats with automatic recognition functions: Binary, Intel (linear & segmented) Hex, Motorola S, Tektronix (linear & segmented), JEDEC, POF, etc.
Auto Increment of Serial Numbers: Auto-generation of electronic serial numbers is available on Superpro 6104NGP. This feature is implemented by Option. Auto Increment allows users to add unique serial numbers into the device. After each successful programming, the software automatically changes the value by the specified increment mode.
Intellectual Property Protection: Password settings are available in both PC and stand-alone mode to protect intellectual property.
Hardware And Electrical Specifications
|
Devices supported |
EPROM, Paged EPROM, Parallel and Serial EEPROM, FPGA Configuration PROM, FLASH memory (NOR), BPROM, NVRAM, SPLD, CPLD, EPLD, Firmware HUB, Microcontroller, MCU |
|
|
Package types supported |
DIP, SDIP, PLCC, JLCC, PGA, LGA, SOIC, SOJ, SOT, QFP, TQFP, PQFP, VQFP, MQFP, LQFP, TSOP, SOP, TSOPII, PSOP, SSOP, TSSOP, SON, EBGA, FBGA, FTBGA, VFBGA, μBGA, CSP, SCSP, QFN, HVQFN etc. |
|
|
PC interface |
USB 2.0 |
|
|
Power supply |
AC Adapter: Input AC 100V- 240V; Output: 12V/1.5A |
|
|
Dimensions |
Main unit: 438(L) x 216(W) x 94(H) mm |
Package: 501(L) x 252(W) x 145(H) mm |
|
Weight |
Main unit: Weight 9.4 lbs (4.3 Kg) |
Package: Weight 19,5 lbs (8.9 Kg) |
Expanded Features
- Built with 4 x universal 144-pin drivers that is compatible with various package types
- In-system programming (ISP) capability
- Support devices with Vcc from 1.2V - 5V.
- Supports files up to 256 GB.
- Over-current and over-voltage protection for safety of the chip and programmer hardware
- Compatible with Windows XP / Vista / 7 / 8 / 10 (32/64 bit)
- Only IC manufacturer approved programming algorithms used for high reliability.
- Vcc verification (at +5% ~ -5% and +10% ~ -10%) enhances programming reliability.
