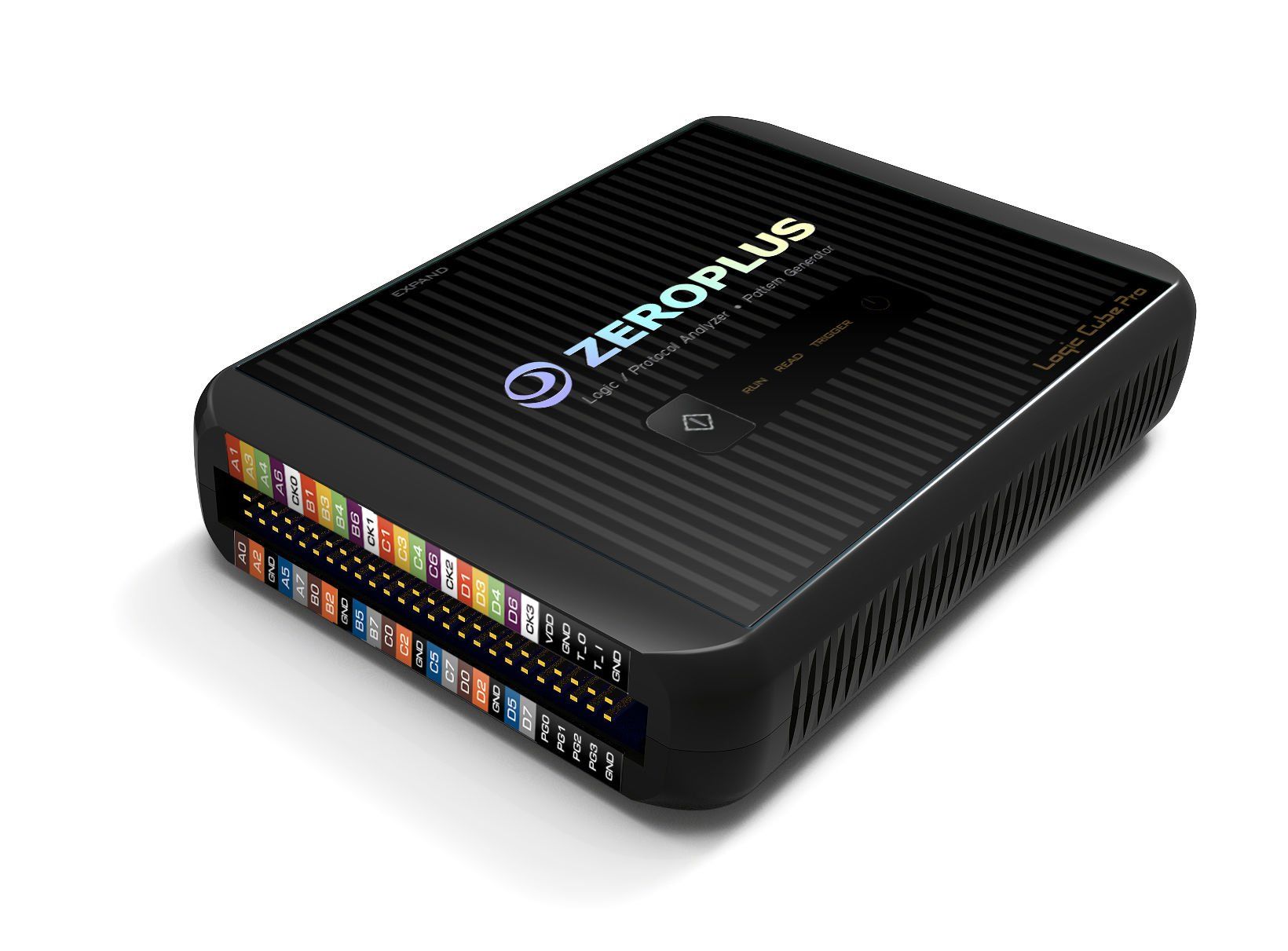

Zeroplus LAP-C Pro 32128M

Zeroplus LAP-C Pro 32128M
Lojik Analizör

Model name	LAP-C Pro16064M	LAP-C Pro32064M	LAP-C Pro32128M	LAP-C Pro32256M
Memory per channel	1G(Max), 64M per channels	2G(Max), 64M per channels	4G(Max), 128M per channels	8G(Max), 256M per channels
Number of Channels	16	32	32	32
Foldable channels to extend the maximum memory per each channel for use	16CH/64Mbits 8CH/128Mbits	64M/32CH 128M/16CH 256M/8CH	128M/32CH 256M/16CH 512M/8CH	256M/32CH 512M/16CH 1G/8CH
Sample Rate (State)	250MHz
Sample Rate (Timing)	Max. 1GHz 8CH/1GHZ 16CH/500MHZ	Max. 2GHz 500MHZ/32CH 1GHZ/16CH 2GHZ/8CH
Sample Rate (LTR)	200 MHZ/ 100MByte	250 MHZ/ 200MByte
Capacibility	No Support	USB2.0 module, 10/100 ethernet module
Pattern Generator	No Support	I2C, SPI, UART(RS-232C/422/485), CAN (more types are continuing to update soon)
Size	125mm*94mm*25mm

Specifications

Features

• Pattern Generator
  • Speed up the development process! Even for unfinished objects, the Spec-compliant signal can be sent to the object that needs to be tested together, and the test can be verified in different environments.
• Long-Time Record
  • The function is used to stream samples directly to disk. Up to 32 channels can be streamed using USB 3.0. The long-time record function can be used to acquire signals from 7 hrs and up to a month depending on the sampling setup.

Built-in Protocol Decoders

Package Content

Downloads
