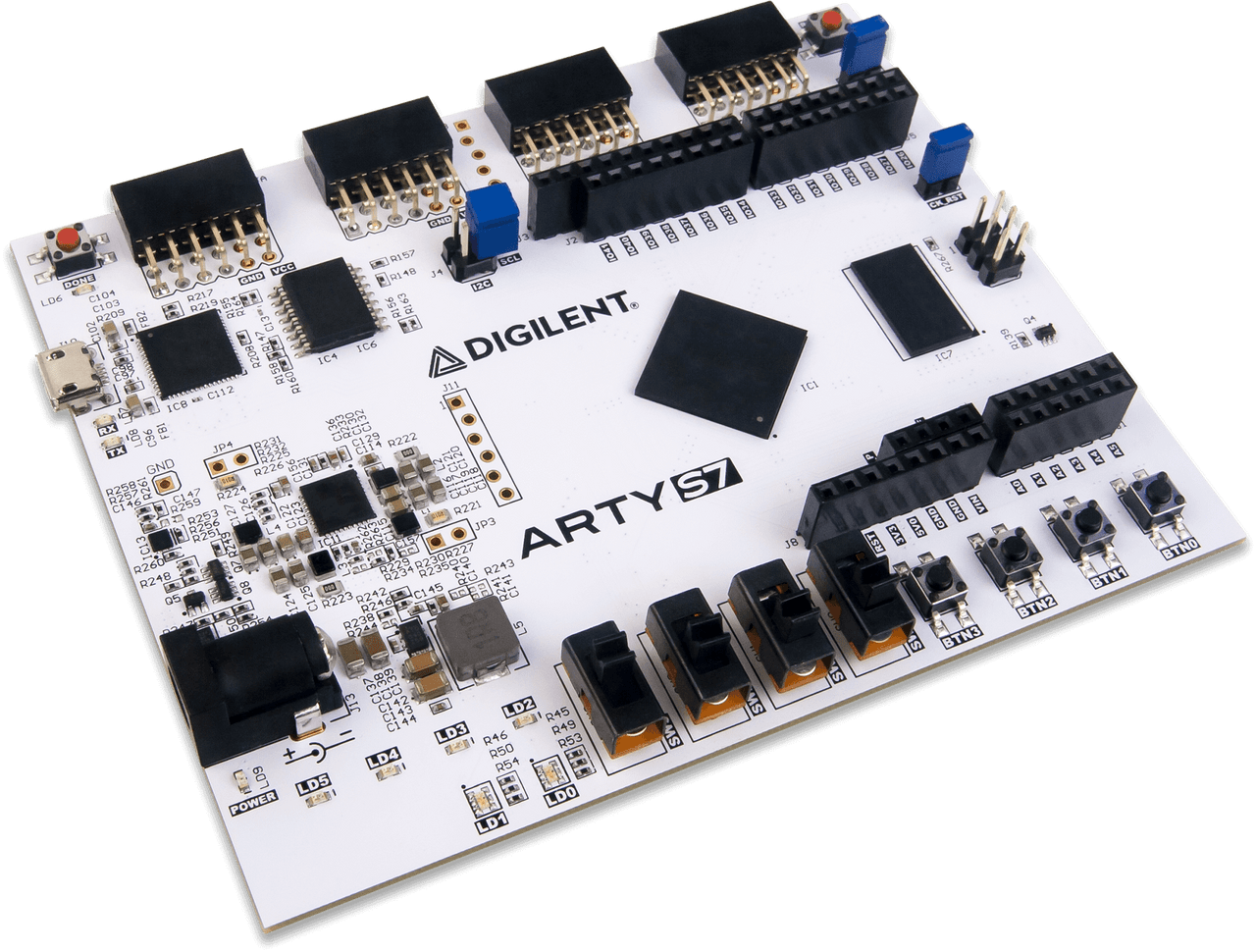

Arty S7-50 FPGA Geliştirme Kartı
Stok Kodu : 72.02.02.03
9.618,00 TL
* 1.033,94 TL den başlayan taksitlerle!
Arty S7: Spartan-7 FPGA Development Board
Spartan-7 FPGA Geliştirme Kartı
The Arty S7-50 board features new Xilinx Spartan-7 FPGA and is the latest member of the Arty family for Makers and Hobbyists.
The Spartan-7 FPGA offers the most size, performance, and cost-conscious design engineered with the latest technologies from Xilinx and is fully compatible with Vivado Design Suite. Putting this FPGA in the Arty form factor provides users with a wide variety of I/O and expansion options. Use the dual row Arduino® connectors to mount one of the hundreds of hardware compatible shields available, or use the Pmod ports with Digilent's pre-made Pmod IP blocks for a more streamlined design experience. Arty S7-50 was designed to be MicroBlaze soft processor ready and comes out of the box ready to use with Xilinx's WebPACK licensing. Additionaly, with the on-chip analog-to-digital converter, users can configure up dual conversion channels at 12 bits of resolution on Arty S7-50
| Arty S7-25 | Arty S7-50 | |
|---|---|---|
| FPGA part | XC7S25-CSGA324 | XC7S50-CSGA324 |
| 1 MSPS On-chip ADC | Yes | Yes |
| Logic Cells | 23,360 | 52,160 |
| Slices | 3,650 | 8,150 |
| Flip-flops | 29,200 | 65,200 |
| Block RAM (kbits) | 1,620 | 2,700 |
| Clock Management Tiles | 3 | 5 |
| DSP Slices | 80 | 120 |
FEATURES
Processor
|
|
|
|
|
|
System Features:
|
|
|
|
|
System Connectivity:
|
Interaction and Sensory Devices
|
|
|
|
|
|
Expansion Connectors:
|
|
- ARTY S7-50 FPGA Geliştirme Kartı
- Digilent cardboard packaging with protective foam
- Vivado Design Suite voucher not included - Vivado Design Suite Edition is available for free download
(Mikro USB Kablo ayrıca alınmalıdır)
| Kart Türü | : | FPGA |
| İşlemci | : | Spartan-7 |
